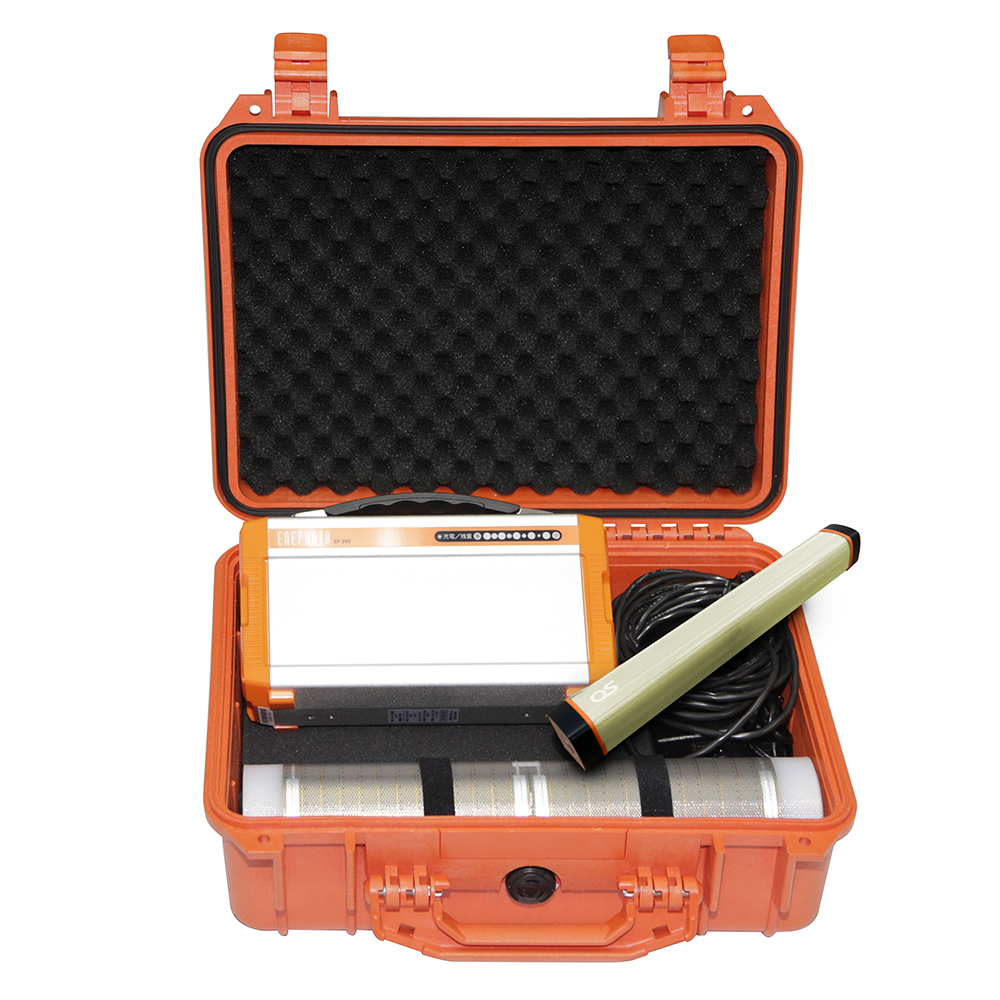

GSB-3202-ADMobile solar power kit (with waterproof hard case)

As an emergency power source for evacuation facilities, including Tsunami Towers, and for storing electricity:
Tsunami Towers (Tsunami Evacuation Towers) are one of the tsunami emergency evacuation facilities mentioned in the Ministry of Land, Infrastructure, Transport and Tourism's "Tsunami Evacuation Facilities for Ports," but they are facilities intended for emergency and temporary evacuation. The "Mobile Solar Set (with Waterproof Hard Case) GSB-3202-AD" was developed to store electricity for necessary information dissemination and other purposes at these temporary facilities.

Characteristics

Features of the 32W-12V Mobile Solar Sheet (GA-3213B01)

• This 32W mobile solar sheet provides peace of mind, allowing for charging from sunlight during outdoor activities or emergencies.
• It can charge a 20Ah battery from the 32W-12V solar sheet in approximately 15 hours.
• *Power generation efficiency varies depending on sunlight conditions and is not guaranteed.
• This solar sheet uses domestically produced cells, ensuring stable power generation.
• Weighing approximately 700g, it's lightweight, flexible, and rollable, making it easy to store and convenient to carry.
• It has 6 grommets, allowing for attachment to tents, balconies, etc. with a carabiner. (Carabiner not included)

Features of the included battery (EP-200)

• High-capacity 20Ah/DC11.1V battery.
• Powers home appliances with AC100V 3-core, AC100V 2-core, and DC5V USB output.

• Fast Charging | Simply plug the charging adapter into an outlet and it will be fully charged in just 8 hours! For example, charging during off-peak hours when electricity rates are low means it will be fully charged while you sleep. Save energy as soon as you wake up!
• Powers Various Home Appliances | AC100V Output: Can be used with AC100V/50Hz home appliances. The top output terminal uses a universal outlet. Desktop computers and professional audio equipment can be connected without an adapter.
• The two output terminals can be used simultaneously. *When using both simultaneously, the operating time will be halved. USB Output: Can be used with 5V/1A external devices that operate via USB. For example, it can charge smartphones, digital cameras, etc.
• Built-in Lithium Polymer Rechargeable Battery | Compared to conventional lead-acid batteries, it achieves significant weight reduction and high power with "approximately half the weight and approximately three times the capacity."
• Lightweight and Compact Design | The compact unit, equipped with a convenient handle for easy carrying, weighs only 2.5kg – an astonishingly light design. It can be easily taken and used in various locations.
• Reliable Pure Sine Wave Output | The built-in inverter provides a reliable pure sine wave output! You can safely use commercially available home appliances.

Features of the Waterproof LED Charger (GB-22L-DC11)

• A portable power source for emergencies, disasters, emergency power supply in the mountains and at sea, and for practicing an eco-friendly lifestyle.
• A fully waterproof LED charger (battery) that meets the IP65 dustproof and waterproof standard.
  *Waterproof performance is measured with the waterproof cap closed.

• The LED light features two adjustable brightness levels, red/blue flashing lights, an insect-repellent LED, and a searchlight (white LED).
  *The insect-repellent LED does not repel all insects. It is primarily effective against mosquitoes.

• LED illumination time is Approx 100 hours (at low brightness).
• USB output provides a maximum of 2.4A to power external devices.
  *Charging this unit provides a maximum of 2.1A from the charging port.
• Complies with PSE (Electrical Appliances and Materials Safety Act).

Features of the Waterproof Hard Case

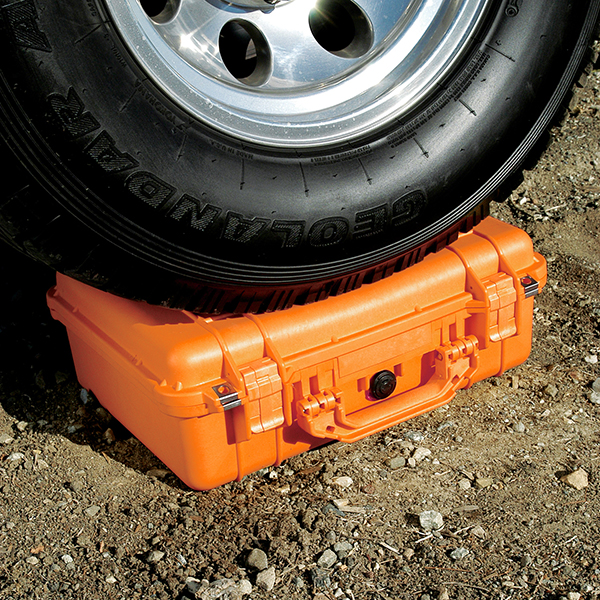

• This case, manufactured by Pelican Products of the USA, is completely waterproof, preventing submersion, and boasts robust, shock-resistant construction for reliable durability.
• Even after being left unused for six months on a full charge, approximately 60% of the capacity is retained.

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

PAGE TOP

Specifications

Mobile solar power kit (with waterproof hard case)
Model		GSB-3202-AD
JAN code		4942465030436
Package size (mm)		W445 x D250 x H360
Packaging weight (kg)		Approx. 8.4
Set		Mobile Solar Sheet Portable battery Waterproof LED Charger Waterproof Hard Case
Compact solar sheet	Model	GA-3213B01
	Main material	Amorphous silicon, ETFE
	Maximum output (Pmax) (W) *1	32
	Maximum power operating voltage (Vpm) (V) *1	13.3
	Maximum output operating current (Ipm) (A) *1	2.4
	Open-circuit voltage (Voc) (V) *1	19.6
	Dimension (mm)	L1734 x W363 x t1 (Protrusions excluded)
	Weight (kg)	Approx. 0.7 (solar sheet) Approx. 0.2 (connecting cable)
	Storage temperature *2	－20℃～＋60℃
	Operating humidity *2	85%RH or less (Unless condensation)
	Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
	Accessories	Connection cable (with DC plug, L=5000mm) x 1 Storage bag (with drawstring) x 1
Portable battery	Model	EP-200
	Main material	Aluminum / ABS resin (case)
	Battery type	Lithium-ion battery
	battery capacity	20Ah / DC11.1V
	Nominal output	AC100V/200W (3-core x 1, 2-core x 1, 50Hz, sine wave) USB 5V x 2 ports (maximum 1A)
	Charging time *5	Solar panel (16W): Approximately 30h AC adapter: Approximately 8h
	Dimension (mm)	W86×D140×D240 (Protrusions excluded)
	Weight (kg)	Approx. 2.5
	Operating temperature *6	0℃～＋40℃
	Waterproof property *7	It is not waterproof.
	Accessories	AC adapter for charging x 1
Waterproof LED charger	Model	GB-22L-DC11
	Main material	resin
	Battery type	Lithium-ion battery
	battery capacity	6000mAh / DC3.7V
	Nominal output	Maximum 2.4A / DC5V
	Charging time *5	Compact solar sheet (10W): Approx 4.25h USB (DC5V/2.1A): Approx 4.25h
	Usable time *8	White LED (Low): Approx 100h White LED (Medium): Approx 12h White LED (High): Approx 6h Red/Blue LED (Flashing): Approx 90h White LED Searchlight: 9h Insect Repellent LED: 6h
	Dimension (mm)	W292 x D37 x H37
	Weight (kg)	Approx. 0.37
	Operating temperature *6	0℃～＋40℃
	Waterproof property *9	IP65
	Accessories	USB cable x 1 (data cannot be sent or received) strap x 1
Waterproof hard case (made by Pelican Products, USA)	Model	1450
	Main material	resin
	Color	Orange
	Dimension (mm)	W406 x D330 x H174
	Weight (kg)	Approx. 2.9
	Waterproof property	IP67

• The above figures are not guaranteed as power generation efficiency changes depending on sunlight conditions.
• If used in an environment that exceeds the usage or storage conditions, the main unit may deteriorate significantly and may lead to failure.
• Do not use the battery or solar sheet when it is wet. Also, be sure to wipe off moisture with a cloth or dry it before use.
• IP standard indicates the degree of protection against ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct jets from any direction.
• Power generation efficiency varies depending on sunlight conditions, therefore the above figures are not guaranteed.
• In environments exceeding the specified usage conditions, the unit may deteriorate significantly and potentially malfunction.
• Do not use the battery or solar sheet when wet.
  Before use, be sure to wipe off any moisture with a cloth or allow the unit to dry completely.
• These are reference values ​​and not guaranteed values.
• Waterproof performance is measured with the waterproof cap closed.
