GA-3213Compact solar sheet

A rollable, portable solar sheet compatible with lithium/lead-acid batteries. 32W solar sheet.

Characteristics

This 32W solar sheet provides peace of mind by allowing you to charge your devices from sunlight, even in emergencies or disasters.

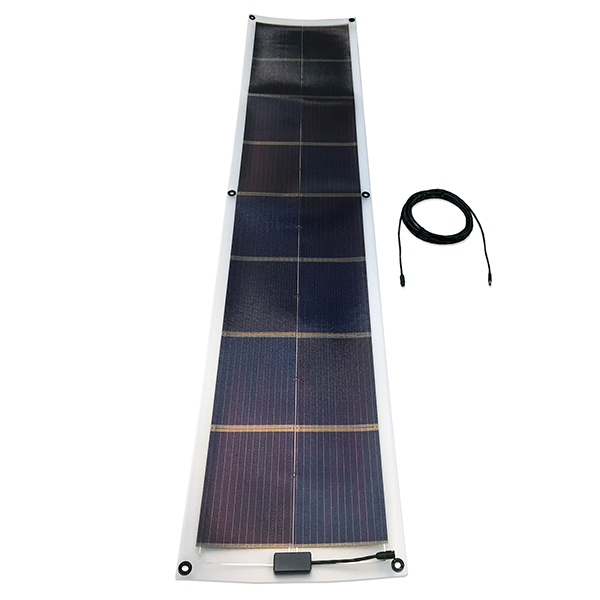

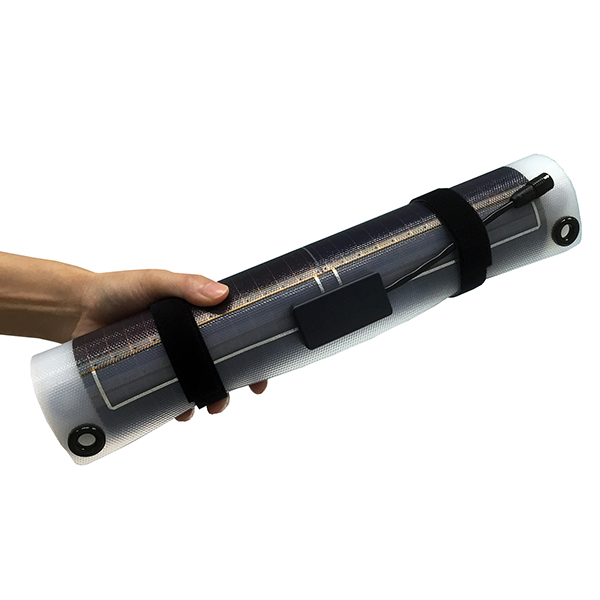

Weighing approximately 700g, this lightweight, flexible, and rollable amorphous solar sheet is easy to store and convenient to carry.
Using domestically produced cells, this solar sheet guarantees stable power generation.

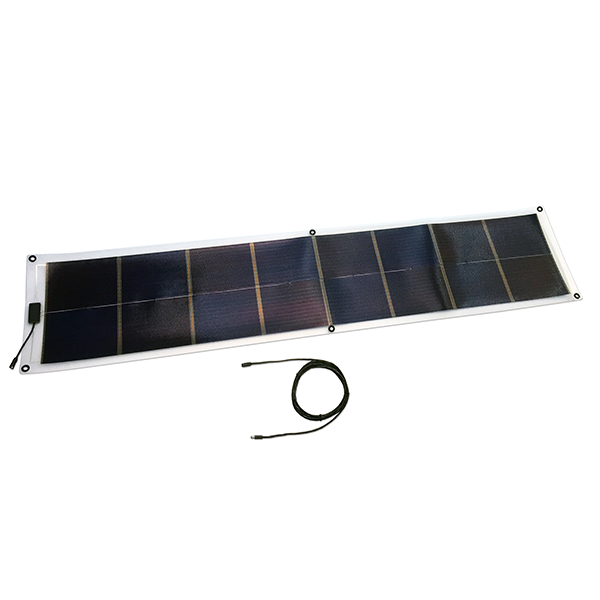

It has six grommets, allowing you to attach it to tents, balconies, etc. with a carabiner. (Carabiner not included)

Product name	Compact solar sheet
Model	GA-3213	GA-3213B01	GA-3213D01	GA-3213D02
Connection terminals
JAN code	-	4942465023568	4942465023575	4942465023803
Main material	Amorphous silicon, ETFE			Amorphous silicon, ETFE, PVC (cover, black)
Maximum output (Pmax) (W) *1	32
Maximum power operating voltage (Vpm) (V) *1	13.3
Maximum output operating current (Ipm) (A) *1	2.4
Open-circuit voltage (Voc) (V) *1	19.6

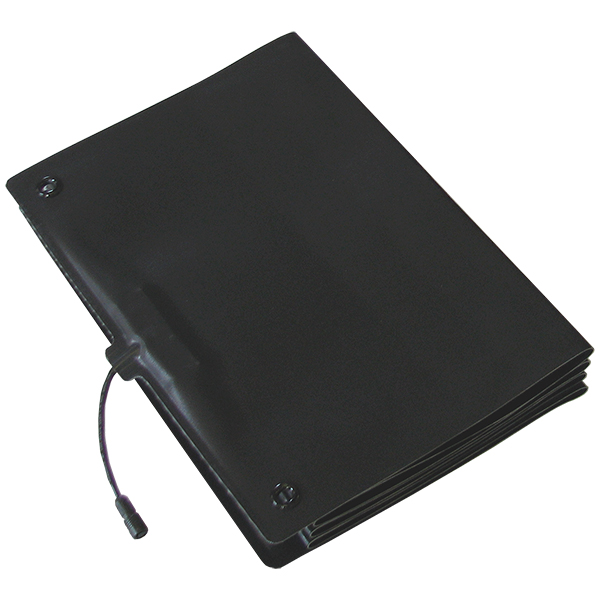

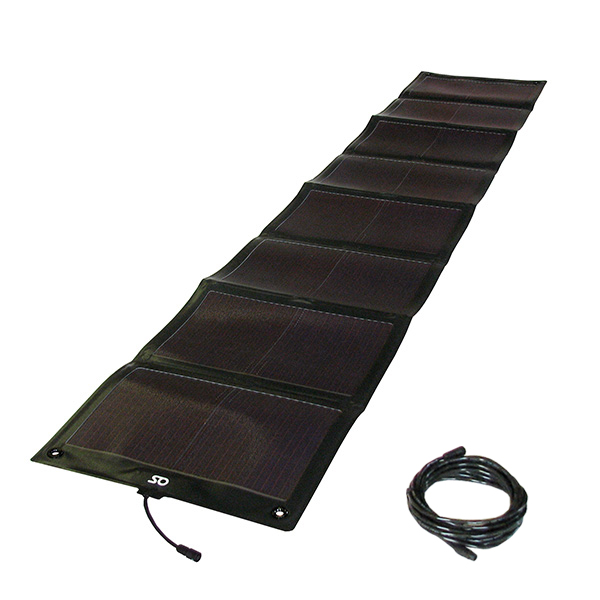

Dimension (mm)	L1734×W363×t1 (Protrusions excluded)			L1930×W380×t5 (when seat is extended, excluding protrusions) D260×W380×t35 (when seat is stored, excluding protrusions)
Weight (kg)	Approx. 0.7 (solar sheet) Approx. 0.2 (connecting cable)
Packing size(mm)	L450×D140×H150			L480×D350×H130
Packing weight（kg）	Approx 1.1			Approx 3.0
Storage temperature *2	－20℃～＋60℃
Operating humidity *2	85%RH or less (Unless condensation)
Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
Accessories	Connection cable 5000mm Storage bag (with drawstring)×1	Connection cable (with DC plug, L=5000mm)×1 Storage bag (with drawstring)×1	Connection cable (with waterproof plug, L=5000mm)×1 Storage bag (with drawstring)×1	Connection cable (with waterproof plug, L=5000mm)×1

The above figures are not guaranteed as power generation efficiency changes depending on sunlight conditions.
If used in an environment that exceeds the usage or storage conditions, the main unit may deteriorate significantly and may lead to failure.
Do not use the battery or solar sheet when it is wet. Also, be sure to wipe off moisture with a cloth or dry it before use.
IP standard indicates the degree of protection against ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct jets from any direction.
