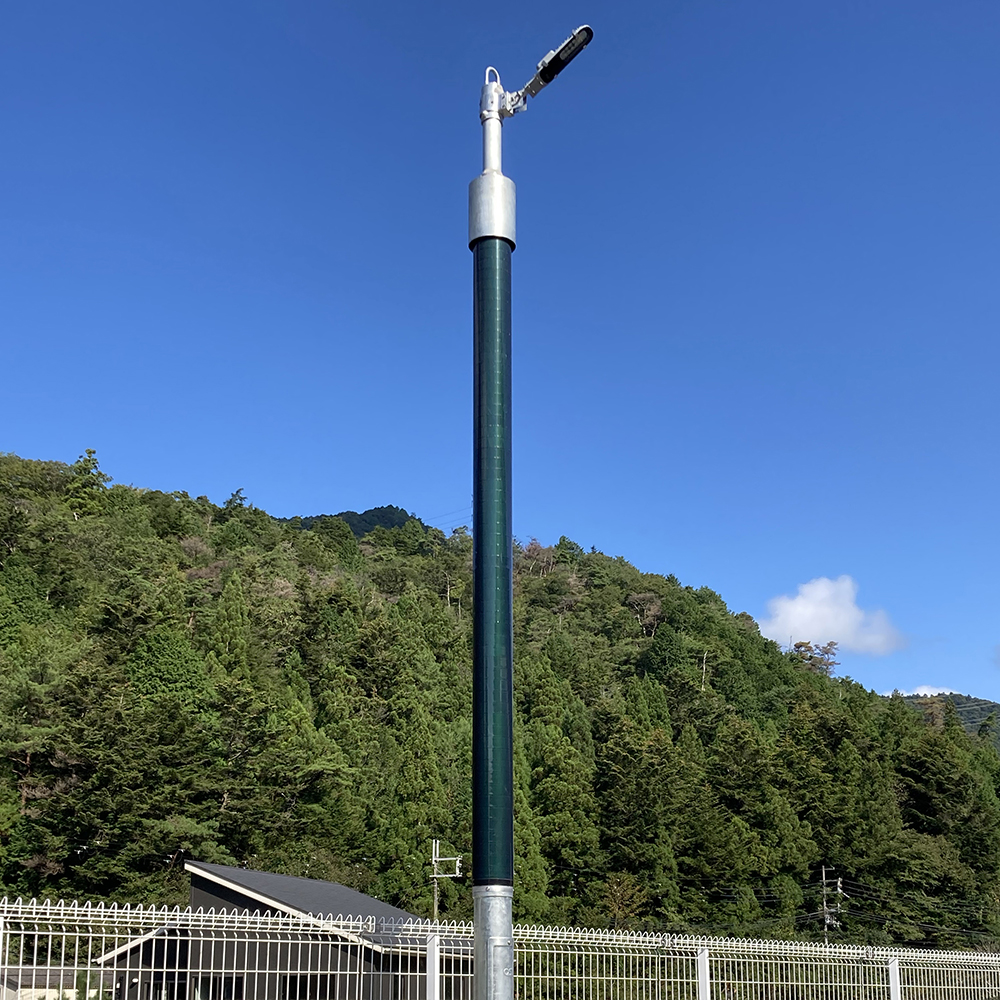

Solar Street Light TFL-3001S / TFL-2001S / TFL-1001S

Off-grid Street Light

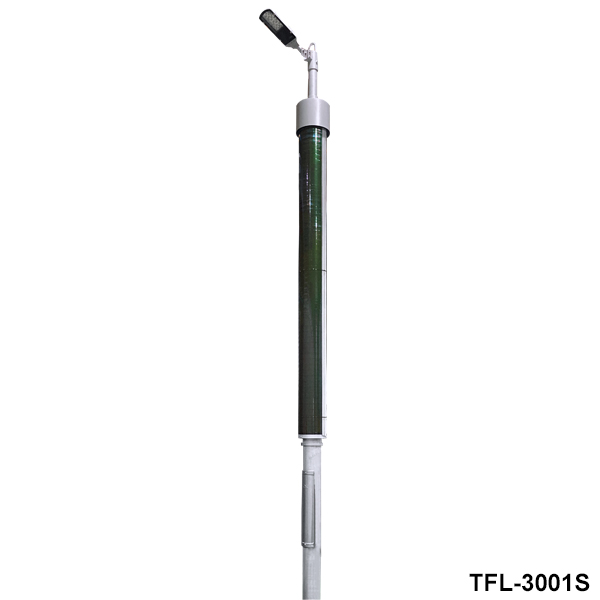

  • TFL-3001S

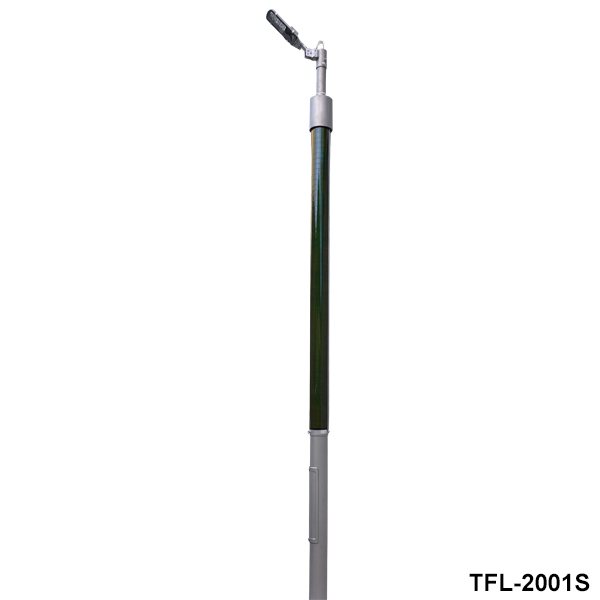

  • TFL-2001S

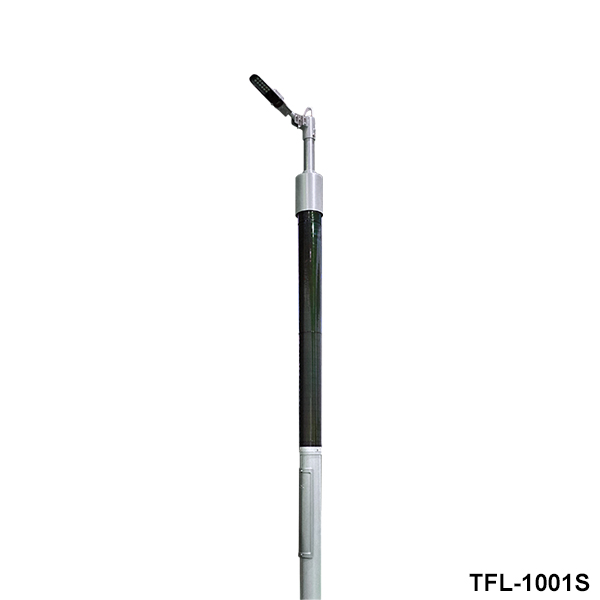

  • TFL-1001S
Download for Spec & Manual
Download for Catalog

Maintenance-free, next generation Off-grid street light, works by solar sheet (model: CG0901) and batteries (model: IP1001).

Solution

Enable remote monitoring of actuation

Enable remote monitoring of actuation

“Off-grid street light” enables to monitor conditions of electric generation and power storage and of functional conditions of equipment by remote control.

Learn more
Monitor illegal dumping

Monitor illegal dumping

“Off-grid street light” with camera works to monitor illegal dumping in the mountain roads and deserted areas.

Learn more
Crime prevention activities/Enable remote monitoring of actuation

Crime prevention activities/Enable remote monitoring of actuation

“Off-grid street light” with a camera is possible to keep surveillance for 24 hours that helps for recording on-site places and effectiveness.

Learn more
Weather information system

Weather information system

“Off-grid street light” with a Live weather camera as the contents of a packaging delivers weather information in tourist areas.

Learn more

top

Features

High efficiency and safety

High efficiency and safety High efficiency solar sheet (model CG1001) and high safety battery (model IP1001) are used.

Not required grid system

Not required grid system The independent power source without grid system or electrical work.

Bright LED light

Bright LED light Make the place safe with LED light, where are difficult to reach the grid system.

Saving the space

Saving the space No flat solar panels or battery boxes. This design helps saving space.

Strong wind resistant

Strong wind resistant The pole without cable is able to resist the strong wind such as typhoon, hurricane, and cyclone.

High generation stability

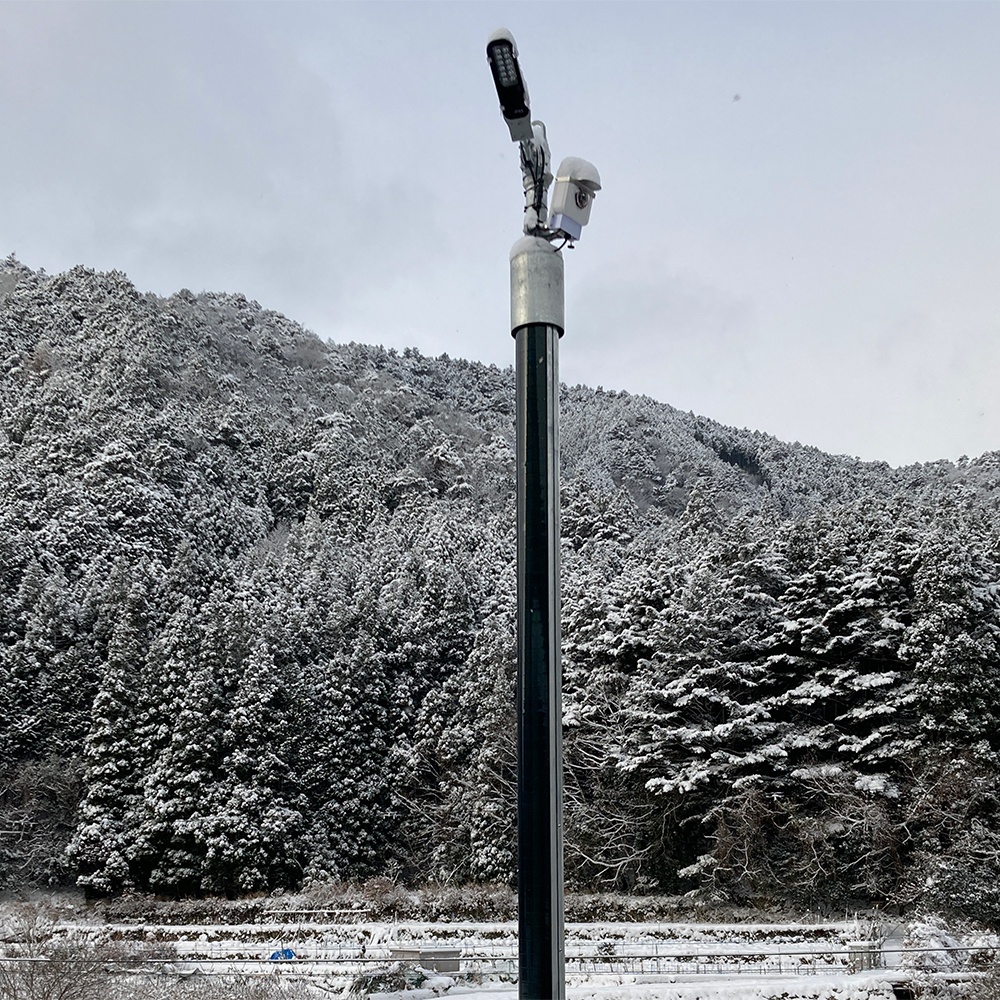

High generation stability The vertically generation surface makes high generation stability and long maintenance-free period not to pile up snow or fall leaves.
  • The completely independent gereration pole combined with a solar sheet.
  • Battery units are placed inside the pole.
  • The battery (model IP1001) is safe and maintenance free.
  • The wind resistant is maximum 60 m/s by Japanese standard installation.

top

Quality of Solar Cell and Battery Cell

Solar Cell (Cell model : CG0901)

CG0901 is flexible solar cell with high efficiency.
It can be stuck or wrapped on the curved surfaces due to thin, flexible and light weight.
Its advantages are rustproof, unbreakable, and high durability.

Battery Cell (Cell model : IP1001)

IP1001 is proud of fast charging and high rate discharging, and excellent cycle life.
Environmentally friendly battery with low risk of explosion and ignition.
Our technology makes the battery packs smaller, and it is installed inside the pole of Off-grid Street light.

top

Off-grid Street Light Specifications

Type TFL-3001S TFL-2001S TFL-1001S
Product appearance TFL-3001S TFL-2001S TFL-1001S
Solar Material Model : CG0901
Maximum output
(P Max)		 250W 125W 80W
Water proof properties IP65
Battery Material Model : IP1001
Capacity 1024Wh 512Wh 256Wh
Water proof properties IP65
Body Color S：Silver, M：Grain pattern, G：Earth green
Dimensions (mm) φ280×L4780 φ190×L4755 φ190×L3488
Weight (kg) 150 120 75
Material
(Surface finishing)		 Steel pipe　Hot-dip galvanization
Operation temperature -10℃～+45℃
Wind resistant
(Wind Speed)		 60m/s (with Japanese standard installation)
Installation Base plate type
LED light Power Consumption (W) 20W 10W 4W
Color Temperature (K) 6000～6500
Luminous flux (LM) 1456 752 274
Color rendering index Ra > 70
Drawing DXF
DWG
PDF 		DXF
DWG
PDF 		DXF
DWG
PDF

* Product specifications are subject to change without notice.
