GSB-3200-ADSolar sheet charger set

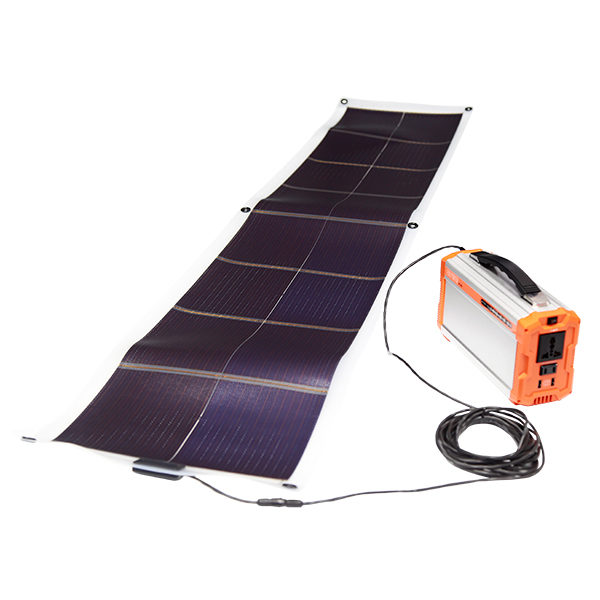

This product combines a solar-powered sheet, which allows for battery charging in areas without a power source, with various power units, enabling the charging of mobile phones, radios, and even laptops. It's a disaster preparedness product for mutual assistance that can also provide lighting in shared spaces.

Characteristics

Features of the 32W Mobile Solar Sheet

  • This 32W solar sheet provides peace of mind by allowing you to charge your devices from sunlight, even in emergencies or disasters.
  • Weighing approximately 700g, this lightweight, flexible, and rollable amorphous solar sheet is easy to store and convenient to carry.
  • Using domestically produced cells, this solar sheet guarantees stable power generation.
  • It has six grommets, allowing you to attach it to tents, balconies, etc. with a carabiner. (Carabiner not included)

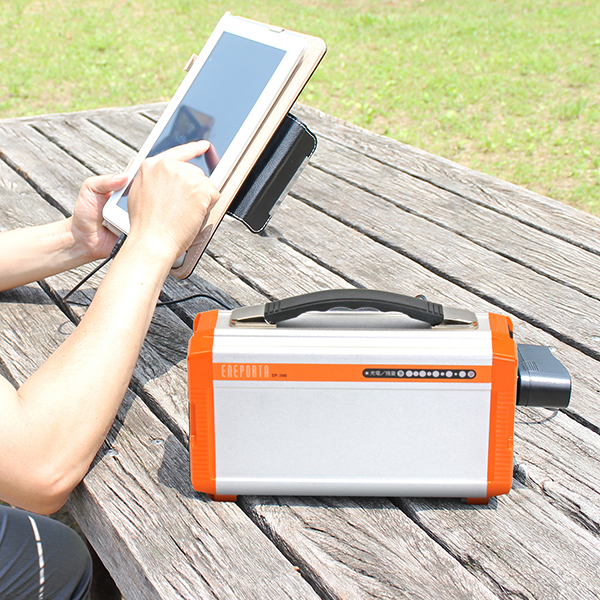

Features of the included battery (EP-200)

  • High-capacity 20Ah/DC11.1V battery.
  • Powers home appliances with AC100V 3-core, AC100V 2-core, and DC5V USB output.
  • Fast Charging | Simply plug the charging adapter into an outlet and it will be fully charged in just 8 hours! For example, charging during off-peak hours when electricity rates are low means it will be fully charged while you sleep. Save energy as soon as you wake up!
  • Powers Various Home Appliances | AC100V Output: Can be used with AC100V/50Hz home appliances. The top output terminal uses a universal outlet. Desktop computers and professional audio equipment can be connected without an adapter.

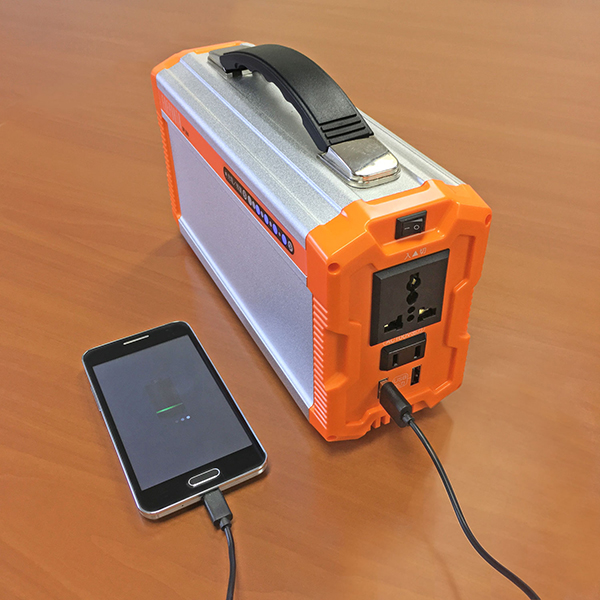

  • The two output terminals can be used simultaneously. *When using both simultaneously, the operating time will be halved. USB Output: Can be used with 5V/1A external devices that operate via USB. For example, it can charge smartphones, digital cameras, etc.
  • Built-in Lithium Polymer Rechargeable Battery | Compared to conventional lead-acid batteries, it achieves significant weight reduction and high power with "approximately half the weight and approximately three times the capacity."
  • Lightweight and Compact Design | The compact unit, equipped with a convenient handle for easy carrying, weighs only 2.5kg – an astonishingly light design. It can be easily taken and used in various locations.
  • Reliable Pure Sine Wave Output | The built-in inverter provides a reliable pure sine wave output! You can safely use commercially available home appliances.

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

PAGE TOP

Specifications

Mobile solar power set
Model GSB-3200-AD
JAN code 4942465023636
Set Compact solar sheet
Portable battery
Compact solar sheet Model
GA-3213B01
Main material Amorphous silicon, ETFE
Maximum output (Pmax) (W) *1 32
Maximum power operating voltage (Vpm) (V) *1 13.3
Maximum output operating current (Ipm) (A) *1 2.4
Open-circuit voltage (Voc) (V) *1 19.6
Dimension (mm) L1734 x W363 x t1 (Protrusions excluded)
Weight (kg) Approx. 0.7 (solar sheet)
Approx. 0.2 (connecting cable)
Storage temperature *2 －20℃～＋60℃
Operating humidity *2 85%RH or less (Unless condensation)
Waterproof property *3 IP65 (solar sheet only, excluding junction box and connector section) *4
Portable battery Model
EP-200
Main material Aluminum / ABS resin (case)
Battery type Lithium-ion battery
battery capacity 20Ah / DC11.1V
Nominal output AC100V/200W (3-core x 1, 2-core x 1, 50Hz, sine wave)
USB 5V x 2 ports (maximum 1A)
Charging time *5 Solar panel (16W): Approximately 30h
AC adapter: Approximately 8h
Dimension (mm) W86×D140×D240 (Protrusions excluded)
Weight (kg) Approx. 2.5
Operating temperature *6 0℃～＋40℃
Waterproof property *7 It is not waterproof.
Accessories Includes: Storage bag (with drawstring) x 1
AC adapter for charging x 1
  • Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
  • The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
  • Do not use the battery or solar sheet when wet. Also, be sure to wipe off any moisture with a cloth or allow it to dry completely before use.
  • The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct water jets from any direction.
  • Power generation efficiency varies depending on sunlight conditions, therefore the above figures are not guaranteed.
  • In environments exceeding the specified usage conditions, the unit may deteriorate significantly and potentially malfunction.
  • Do not use the battery or solar sheet when wet.
    Before use, be sure to wipe off any moisture with a cloth or allow the unit to dry completely.
