GSB-1601-ADSolar sheet charger set

A set of a 16W mobile solar panel that can use AC power (sine wave) and a high-capacity battery.

Characteristics

The 16W solar sheet can charge the included 20Ah/DC11.1V battery in approximately 30 hours.
This solar sheet uses domestically produced cells, guaranteeing stable power generation.
It is lightweight (solar sheet: approx. 400g / battery: approx. 2.5kg) and easy to carry.
It is a soft, rollable amorphous solar sheet.

High-capacity 16Ah/DC11.1V battery.
Charge various portable devices via AC100V 3-core, DC12V x1, and USB x4 ports.
Fast Charging | Simply plug the charging adapter into an outlet and it will be fully charged in just 8 hours! For example, if you charge it using inexpensive off-peak electricity, it will be fully charged while you sleep. Save energy as soon as you wake up in the morning.
Power Various Home Appliances | AC100V Output: You can use AC100V/50Hz home appliances. Desktop computers and professional audio equipment can also be connected without an adapter.
Built-in Lithium Polymer Rechargeable Battery | Compared to conventional lead-acid batteries, it achieves a significant reduction in weight and power, with "approximately half the weight and approximately three times the capacity."
Lightweight and Compact Design | The compact body with a convenient handle weighs only 1.57kg, making it surprisingly lightweight. You can take it and use it in various locations.
Reliable Pure Sine Wave Output | The built-in inverter that supplies power provides a reliable pure sine wave output! You can use commercially available home appliances with peace of mind.
Includes a flashlight, convenient for use during power outages.

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

Mobile solar power set
Model		GSB-1601-AD
JAN code		4942465027795
Set		Compact solar sheet Portable battery
Compact solar sheet	Model	GA-1613
	Main material	Amorphous silicon, ETFE
	Maximum output (Pmax) (W) *1	16
	Maximum power operating voltage (Vpm) (V) *1	13.3
	Maximum output operating current (Ipm) (A) *1	1.2
	Open-circuit voltage (Voc) (V) *1	19.6
	Dimension (mm)	L888×W360×t1 (Protrusions excluded)
	Weight (kg)	Approx. 0.4
	Storage temperature *2	－20℃～＋60℃
	Operating humidity *2	85%RH or less (Unless condensation)
	Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4

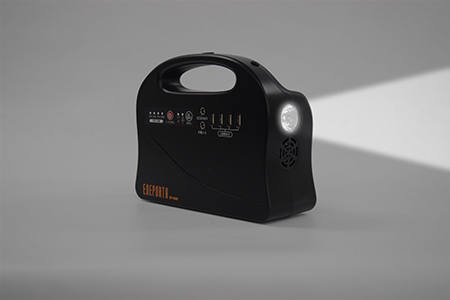

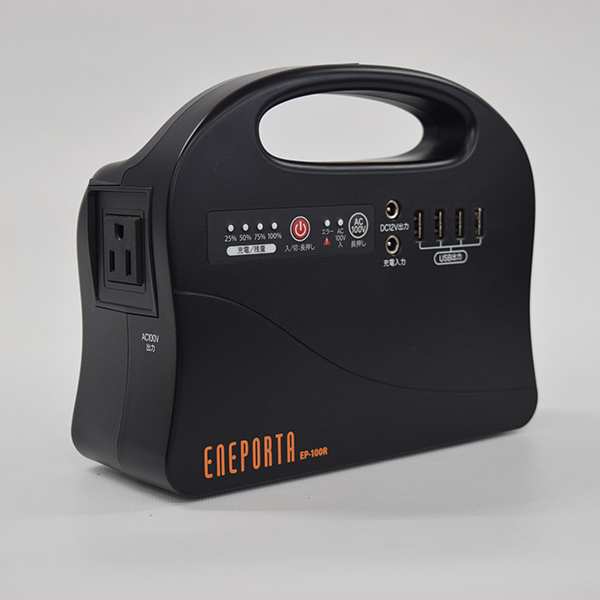

Portable battery	Model	EP-100R
	Main material	ABS resin (case)
	Battery type	Lithium-ion battery
	battery capacity	16Ah / DC11.1V
	Nominal output	AC100V/100W (3-core x 1, 50Hz, sine wave) DC12V x 1 ports (maximum 5A) USB 5V x 4 ports (Total 3.1A)
	Charging time *5	Solar panel (16W): Approximately 13h AC adapter: Approximately 8h
	Dimension (mm)	W213×D172×D86 (Protrusions excluded)
	Weight (kg)	Approx. 1.57
	Operating temperature *6	0℃～＋40℃
	Waterproof property *7	It is not waterproof.

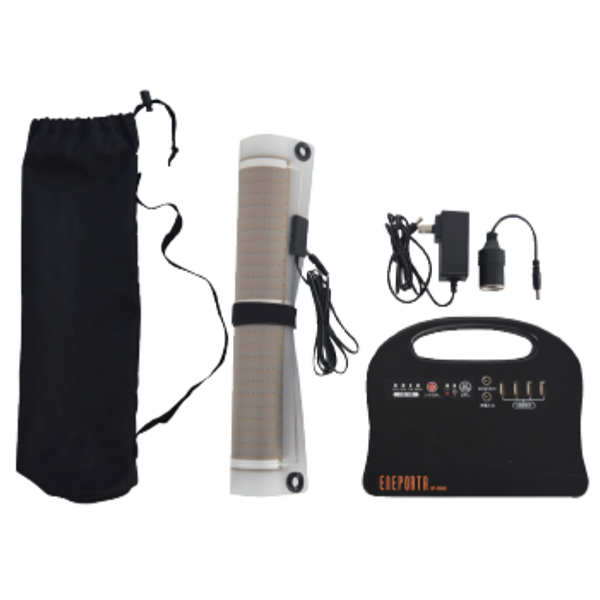

Accessories		Includes: Storage bag (with drawstring) x 1 AC adapter for charging x 1 Cigarette lighter adapter x 1

Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
Do not use the battery or solar sheet when wet. Also, be sure to wipe off any moisture with a cloth or allow it to dry completely before use.
The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct water jets from any direction.
Power generation efficiency varies depending on sunlight conditions, therefore the above figures are not guaranteed.
In environments exceeding the specified usage conditions, the unit may deteriorate significantly and potentially malfunction.
Do not use the battery or solar sheet when wet.
Before use, be sure to wipe off any moisture with a cloth or allow the unit to dry completely.
