Compact solar sheet GA-1613

Lightweight at 400g, soft and easy to roll by hand, ideal for charging PC batteries. 16W solar sheet.

Characteristics

Thin and easy to roll up
Lightweight and easy to carry

Large 16W solar sheet

Connect with DC plug

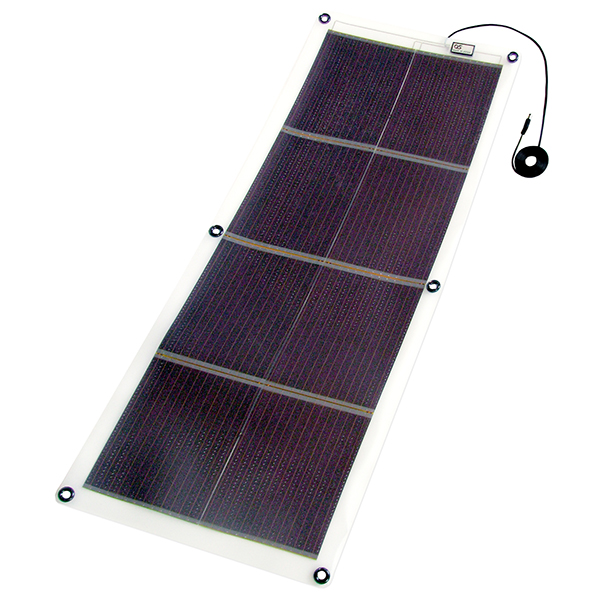

This 16W solar sheet provides peace of mind, allowing you to charge your devices from sunlight during outdoor activities or emergencies.

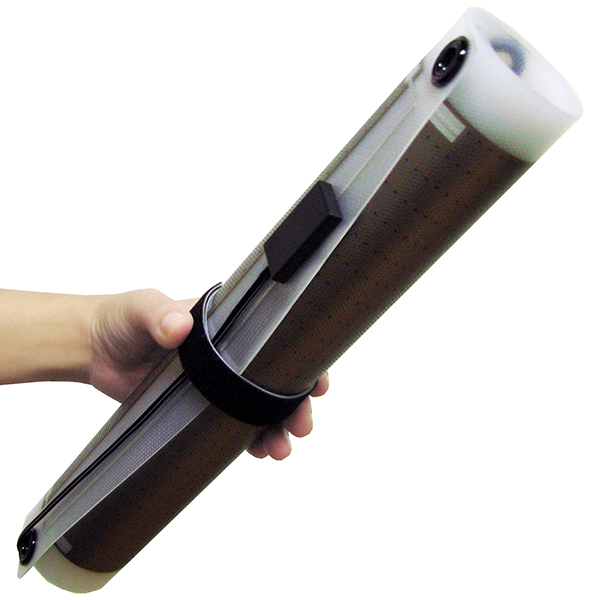

Weighing only 400g, this lightweight, flexible, and rollable amorphous solar sheet is easy to store and convenient to carry.
Using domestically produced cells, this solar sheet guarantees stable power generation.

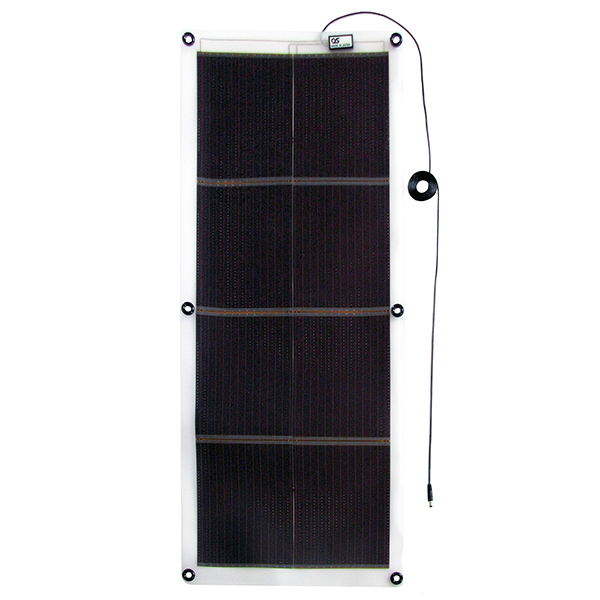

It has six grommets, allowing you to attach it to tents, balconies, etc. with a carabiner. (Carabiner not included)

Product name	Compact solar sheet
Model	GA-1613B01
Main material	Amorphous silicon, ETFE
Maximum output (Pmax) (W) *1	16
Maximum power operating voltage (Vpm) (V) *1	13.3
Maximum output operating current (Ipm) (V) *1	1.2
Open-circuit voltage (Voc) (V) *1	19.6
Dimension (mm)	L888×W360×t1 (Protrusions excluded)
Weight (kg)	Approx. 0.4
Storage temperature *2	－20℃～＋60℃
Operating humidity *2	85%RH or less (Unless condensation)
Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
Approximate usable battery life	1) Must be rechargeable with DC12V 2) The connection plug must be a DC plug with dimensions of Ø5.5 × Ø2.1 (outer diameter × inner diameter) The battery connection plug can be modified. 3) Must have a safety circuit to prevent overcharging, etc. 4) 12V lead-acid batteries must be rechargeable via a charge controller. Since batteries from different manufacturers have various characteristics, even if the above conditions are met, we cannot guarantee that all batteries will be able to be charged. *A 16W solar sheet can provide approximately 1.2A on a sunny day. You can roughly estimate the full charging time by working backward from the battery's capacity, but this is only an estimate due to the individual characteristics and loss rate of each battery.

Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
Do not use the battery or solar sheet when wet. Also, be sure to wipe off any moisture with a cloth or allow it to dry completely before use.
The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct water jets from any direction.
