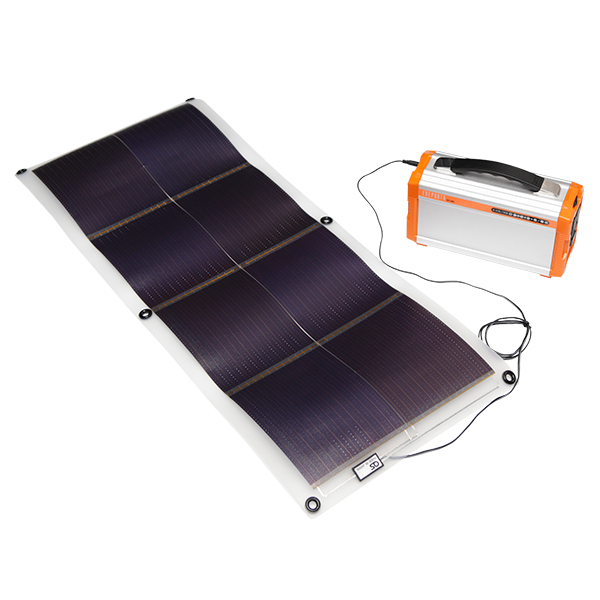

GSB-1600-ADSolar sheet charger set

A set of a 16W mobile solar panel that can use AC power (sine wave) and a high-capacity battery.

Characteristics

The 16W solar sheet can charge the included 20Ah/DC11.1V battery in approximately 30 hours.
This solar sheet uses domestically produced cells, guaranteeing stable power generation.
It is lightweight (solar sheet: approx. 400g / battery: approx. 2.5kg) and easy to carry.
It is a soft, rollable amorphous solar sheet.

High-capacity 20Ah/DC11.1V battery.
Powers home appliances with AC100V 3-core, AC100V 2-core, and DC5V USB output.
Fast Charging | Simply plug the charging adapter into an outlet and it will be fully charged in just 8 hours! For example, charging during off-peak hours when electricity rates are low means it will be fully charged while you sleep. Save energy as soon as you wake up!
Powers Various Home Appliances | AC100V Output: Can be used with AC100V/50Hz home appliances. The top output terminal uses a universal outlet. Desktop computers and professional audio equipment can be connected without an adapter.
The two output terminals can be used simultaneously. *When using both simultaneously, the operating time will be halved. USB Output: Can be used with 5V/1A external devices that operate via USB. For example, it can charge smartphones, digital cameras, etc.
Built-in Lithium Polymer Rechargeable Battery | Compared to conventional lead-acid batteries, it achieves significant weight reduction and high power with "approximately half the weight and approximately three times the capacity."

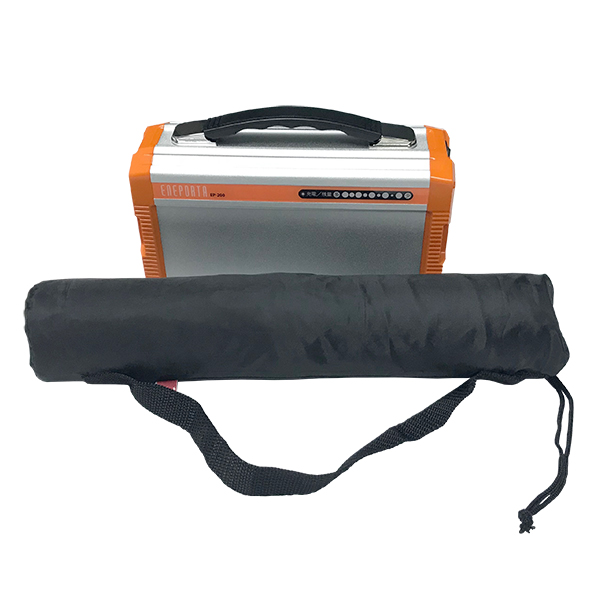

Lightweight and Compact Design | The compact unit, equipped with a convenient handle for easy carrying, weighs only 2.5kg – an astonishingly light design. It can be easily taken and used in various locations.
Reliable Pure Sine Wave Output | The built-in inverter provides a reliable pure sine wave output! You can safely use commercially available home appliances.

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

Mobile solar power set
Model		GSB-1600-AD
JAN code		4942465023629
Set		Compact solar sheet Portable battery
Compact solar sheet	Model	GA-1613
	Main material	Amorphous silicon, ETFE
	Maximum output (Pmax) (W) *1	16
	Maximum power operating voltage (Vpm) (V) *1	13.3
	Maximum output operating current (Ipm) (A) *1	1.2
	Open-circuit voltage (Voc) (V) *1	19.6
	Dimension (mm)	L888×W360×t1 (Protrusions excluded)
	Weight (kg)	Approx. 0.4
	Storage temperature *2	－20℃～＋60℃
	Operating humidity *2	85%RH or less (Unless condensation)
	Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
Portable battery	Model	EP-200
	Main material	Aluminum / ABS resin (case)
	Battery type	Lithium-ion battery
	battery capacity	20Ah / DC11.1V
	Nominal output	AC100V/200W (3-core x 1, 2-core x 1, 50Hz, sine wave) USB 5V x 2 ports (maximum 1A)
	Charging time *5	Solar panel (16W): Approximately 30h AC adapter: Approximately 8h
	Dimension (mm)	W86×D140×D240 (Protrusions excluded)
	Weight (kg)	Approx. 2.5
	Operating temperature *6	0℃～＋40℃
	Waterproof property *7	It is not waterproof.
Accessories		Includes: Storage bag (with drawstring) x 1 AC adapter for charging x 1

Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
Do not use the battery or solar sheet when wet. Also, be sure to wipe off any moisture with a cloth or allow it to dry completely before use.
The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct water jets from any direction.
Power generation efficiency varies depending on sunlight conditions, therefore the above figures are not guaranteed.
In environments exceeding the specified usage conditions, the unit may deteriorate significantly and potentially malfunction.
Do not use the battery or solar sheet when wet.
Before use, be sure to wipe off any moisture with a cloth or allow the unit to dry completely.
