GN-200B1Solar sheet charger set

•
•
•
•
•
•
•
•

The "GN Series" solar sheet charger set, which has been making waves for its "generate power anywhere" capability and its ability to directly charge smartphones, has evolved!
This set includes a lightweight, portable, and rollable 16W solar sheet charger and a 6000mAh waterproof LED charger. This new model features improvements for enhanced safety and ease of use.

Solar sheet charger set for "power generation" + "charging"

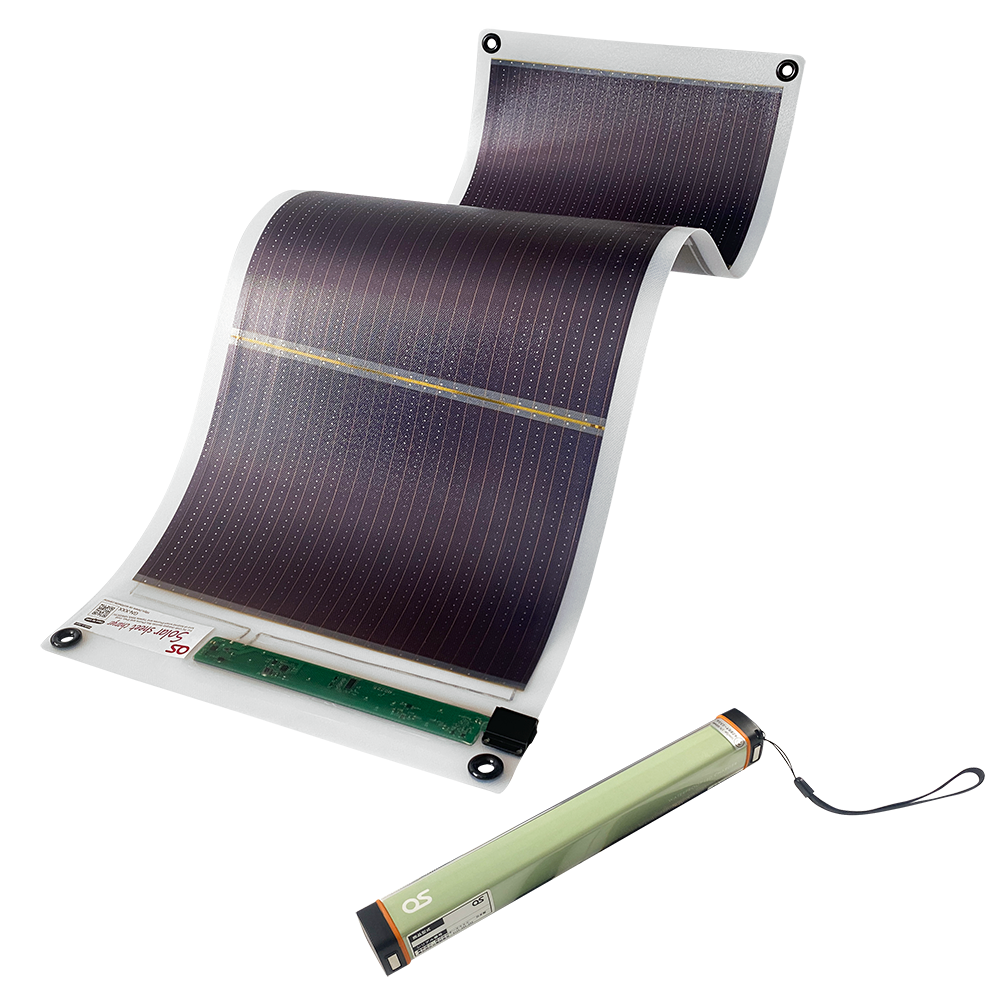

The Solar Sheet Charger Set is a set product consisting of a solar sheet (GN-200) that can generate electricity anywhere using sunlight, and a waterproof LED charger (GB-22L-DC11).

By storing the electricity generated by the solar sheet charger using sunlight in the waterproof LED charger beforehand, it can be used as a power source for smartphones, even at night or in rainy weather.

The waterproof LED charger is an LED light that meets the IP65 dustproof and waterproof standard. With a wide range of dimming options, it is useful not only as a life tool during emergencies and disasters, but also as a portable power source for outdoor activities such as camping, at the beach or in the mountains, and as an emergency signal, making it useful in a variety of situations from everyday use to emergencies.

*Waterproof performance is when the waterproof cap is closed.

PAGE TOP

Scenarios

During disasters, power outages, and emergencies

For outdoor activities and travel

Perfect for gifts and souvenirs

PAGE TOP

Key points

Improvement of power generation capacity

The GN-200 has been improved in terms of power generation capacity*1 to make it more convenient to use for direct charging of smartphones, which are increasingly equipped with large-capacity built-in batteries.

The estimated charging time for a smartphone is approximately 3.4 hours.*2

• The maximum power generation capacity of a single solar sheet cell has improved by approximately 1.7 times compared to our conventional products.
• This is an estimated time based on a smartphone battery with 5200mAh/3.7V.
  Power generation capacity varies greatly depending on sunlight conditions, so this value is for reference only and not guaranteed.

* It differs slightly from the final standard product specifications.

Completely waterproof

The DC-DC converter section is completely waterproof, ensuring safe and reliable use near water, in morning dew, or during sudden rain showers outdoors. The fully laminated design, including the circuitry, also improves durability.

The connector is the highly versatile USB Type-C specification, which is becoming the mainstream in the market. It complies with the USB Power Delivery standard, which is supported by many smartphones, resulting in faster charging. Its reversible design eliminates the need to worry about orientation, making it more user-friendly compared to conventional USB Type-A connectors.

The sheet is designed to resist curling and can be easily unfolded for use.

Designed to resist curling and easily unfold for use, this sheet can be deployed smoothly and stress-free not only during emergencies but also during outdoor activities such as camping.

Its uniform, flat surface evenly captures sunlight, ensuring consistent power generation and a stable voltage and current.

PAGE TOP

Characteristics

Features of the Mobile Solar Sheet (GN-200)

• A solar sheet that generates electricity using sunlight even in locations without a power source.
• Maximum power generation capacity/maximum output power: 16.2W/10.0W.
• Can directly charge USB devices such as smartphones, tablets, and mobile batteries.
• The connector uses USB Type-C, which is becoming mainstream in the market and offers high versatility and fast power supply speed.
• High IP65 water resistance (USB part is IPX4).
• Uses a safe amorphous sheet that is resistant to bending and impact and can be rolled up for storage (storage bag included as standard).
• The sheet is less prone to curling, maintaining the flatness of the power generation surface and ensuring stable voltage and current.
• Less susceptible to temperature changes, enabling power generation even in harsh, high-temperature conditions like deserts.
• Lightweight design at 210g, easily rolled up for compact portability.
• Equipped with eyelets, allowing you to freely orient the light-receiving surface towards the direction of sunlight by threading a string through it, attaching a carabiner, or hooking it.
• Made in Japan quality and high reliability.
• It can directly power USB devices such as small fans and LED lights that do not have a battery function. (Some devices may not be compatible.)

Features of the Waterproof LED Charger (GB-22L-DC11)

• A portable power source for emergencies, disasters, emergency power supply in the mountains and at sea, and for practicing an eco-friendly lifestyle.
• A fully waterproof LED charger (battery) that meets the IP65 dustproof and waterproof standard.
  *Waterproof performance is measured with the waterproof cap closed.

• The LED light features two adjustable brightness levels, red/blue flashing lights, an insect-repellent LED, and a searchlight (white LED).
  *The insect-repellent LED does not repel all insects. It is primarily effective against mosquitoes.

• LED illumination time is Approx 100 hours (at low brightness).
• USB output provides a maximum of 2.4A to power external devices.
  *Charging this unit provides a maximum of 2.1A from the charging port.
• Complies with PSE (Electrical Appliances and Materials Safety Act).

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

PAGE TOP

Quality of Solar Cell

Solar Cell (Cell model : CG1001)

PAGE TOP

Attention

• The current value of output changes depending on the sunshine condition. When the current decreases, an attention would appear on the screen of smartphone. At that time, pull out the cable once and reconnect it in a location with strong sunshine. In case the output is uncertain, please charge the attached LED charger, or a portable battery charger.
• If there is ultraviolet (UV) cut glass, the power generation capacity of the sheet may be lowered.
• When you operate the smartphone while generating and charging with the solar sheet charger, charging may not work properly.
• Please refrain from operating your smartphone while charging.
• Charging may not be possible while the smartphone application is launched.
• Close all the application and start charging.
• Even if it fulfills above conditions, we do not guarantee that all smartphones and mobile batteries will be charged properly.

PAGE TOP

Specifications

Solar sheet charger set
Model		GN-200B1
JAN code		4942465031525
Set		SOLAR SHEET CHARGER Waterproof LED charger
SOLAR SHEET CHARGER	Model	GN-200
	Main material	SA1001
	Maximum power generation capacity(W) *1	16.2
	Maximum output power (W) *2	10.0
	Maximum output voltage (V) *2	5.0
	Dimension (mm)	L936×W330×t0.8 (Protrusions excluded)
	Weight (kg)	0.36
	Operating temperature *3	0℃～+60℃
	Operating humidity *4	85%RH or less (Unless condensation)
	Storage temperature *4	-20℃～+60℃
	Waterproof property *5	IP65 (USB box excluded)
Waterproof LED charger	Model	GB-22L-DC11
	color	Green
	Main material	Resin
	Battery type	Lithium-ion battery
	battery capacity	6000mAh / DC3.7V
	Nominal output	Maximum 2.4A / DC5V
	Charging time *1	Compact solar sheet (GN*100): Approx 4h *2 USB (DC5V/1.2A): Approx 4h
	Usable time *6	White LED (Low): Approx 100h White LED (Medium): Approx 12h White LED (High): Approx 6h Red/Blue LED (Flashing): Approx 90h White LED Searchlight: 9h Insect Repellent LED: 6h
	Dimension (mm)	W292×D37ｘH37
	Weight (kg)	Approx. 0.37
	Operating temperature *4	0℃～＋40℃
	Waterproof property *7	IP65
Accessories		Includes: Storage bag (with drawstring)×1 strap×1 USB cable×1 (data cannot be sent or received)

• Maximum power generation capacity is the value of the solar sheet alone, without going through the circuit inside the USB box.
• Power generation capacity varies depending on sunlight conditions, so the above value is not guaranteed.
• If used in an environment outside of the specified usage conditions, the circuit function inside the USB box may deteriorate, and the product may not produce its intended output.
• In environments exceeding the usage humidity and storage conditions, the unit may deteriorate significantly and may malfunction.
• The USB box is not waterproof. Please be especially careful not to get moisture on the USB connector.
  If moisture enters the box, please dry it thoroughly before use.
• This is a reference value and not a guaranteed value.
• Waterproof performance is when the waterproof cap is closed.
