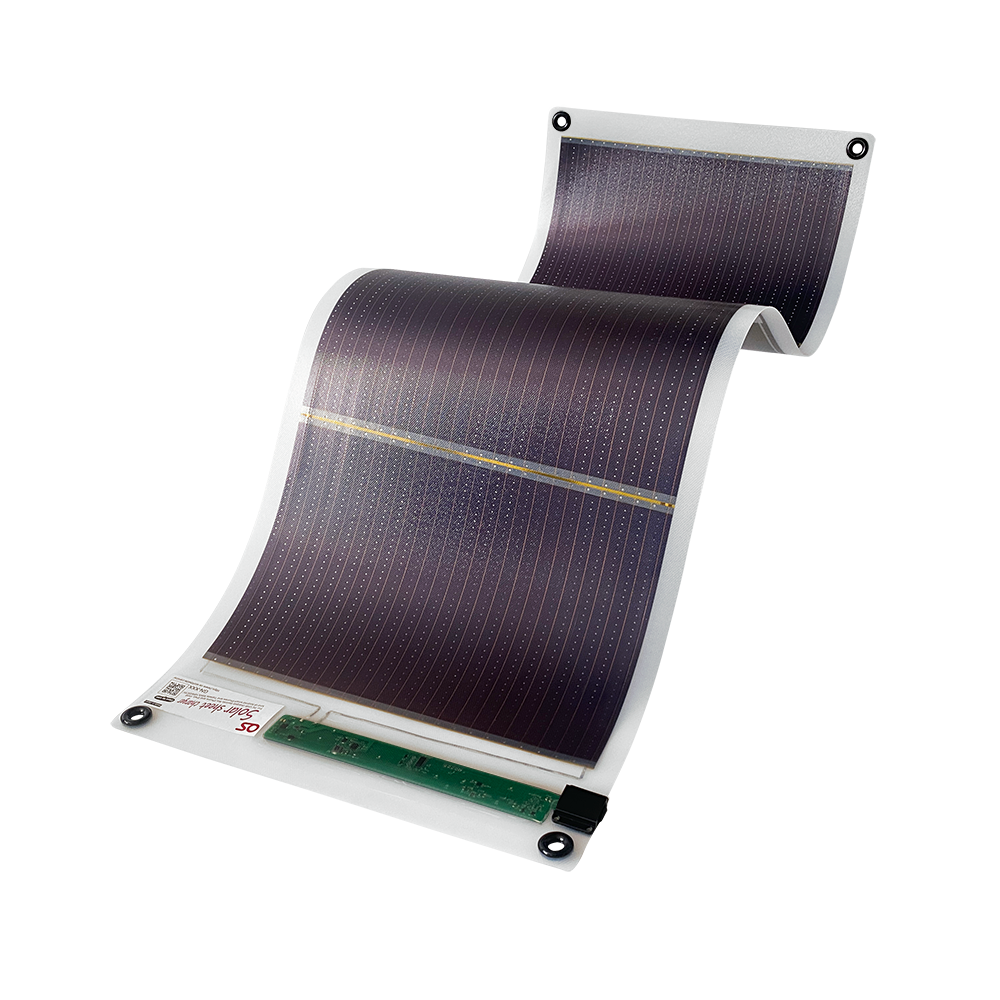

Everywhere charger　SOLAR SHEET CHARGER GN-200

The "GN series" solar sheet charger, which has been making headlines for its ability to generate power anywhere and directly charge smartphones, has evolved!!
This lightweight, portable, and roll-up 16W solar sheet charger is now available in a new model with improved safety and ease of use.

Scenarios

利用イメージ1

During disasters, power outages, and emergencies

利用イメージ2

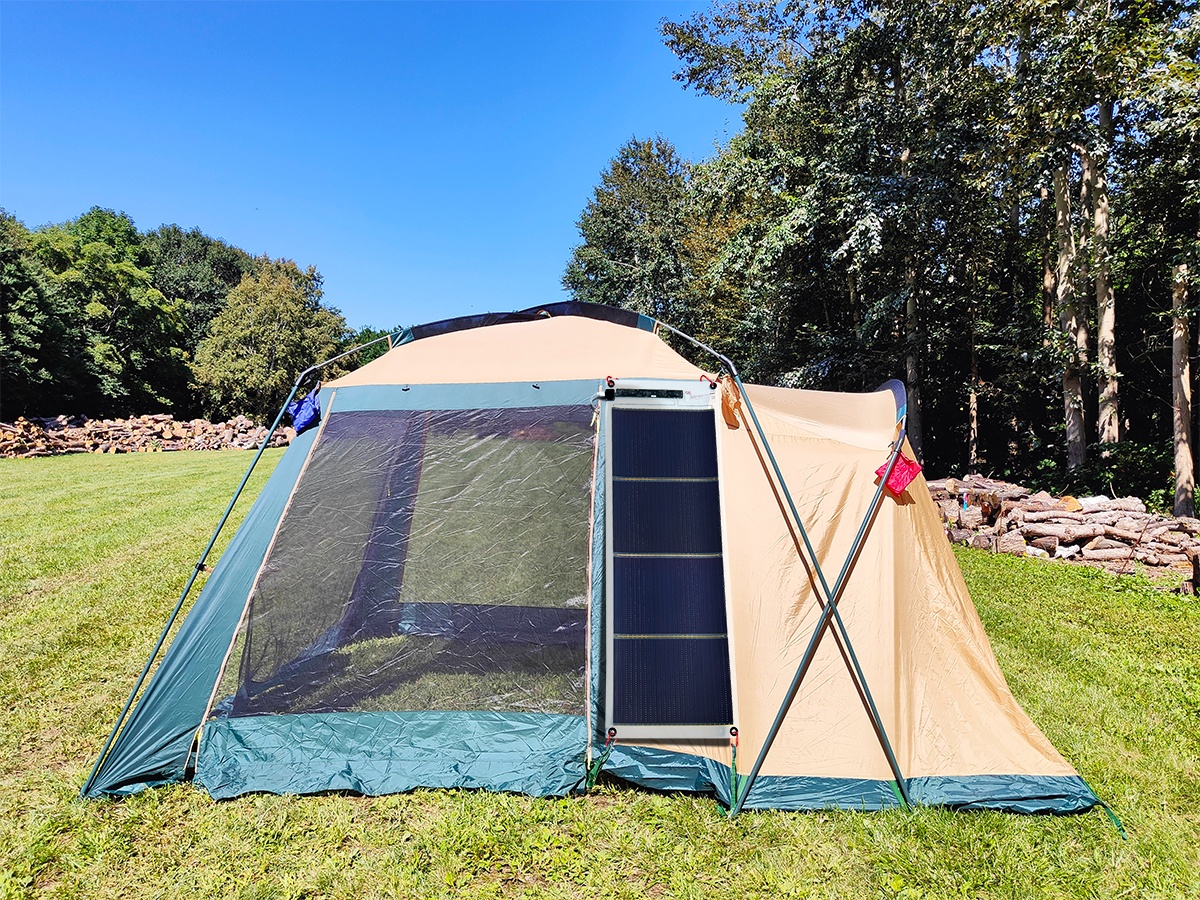

For outdoor activities and travel

利用イメージ3

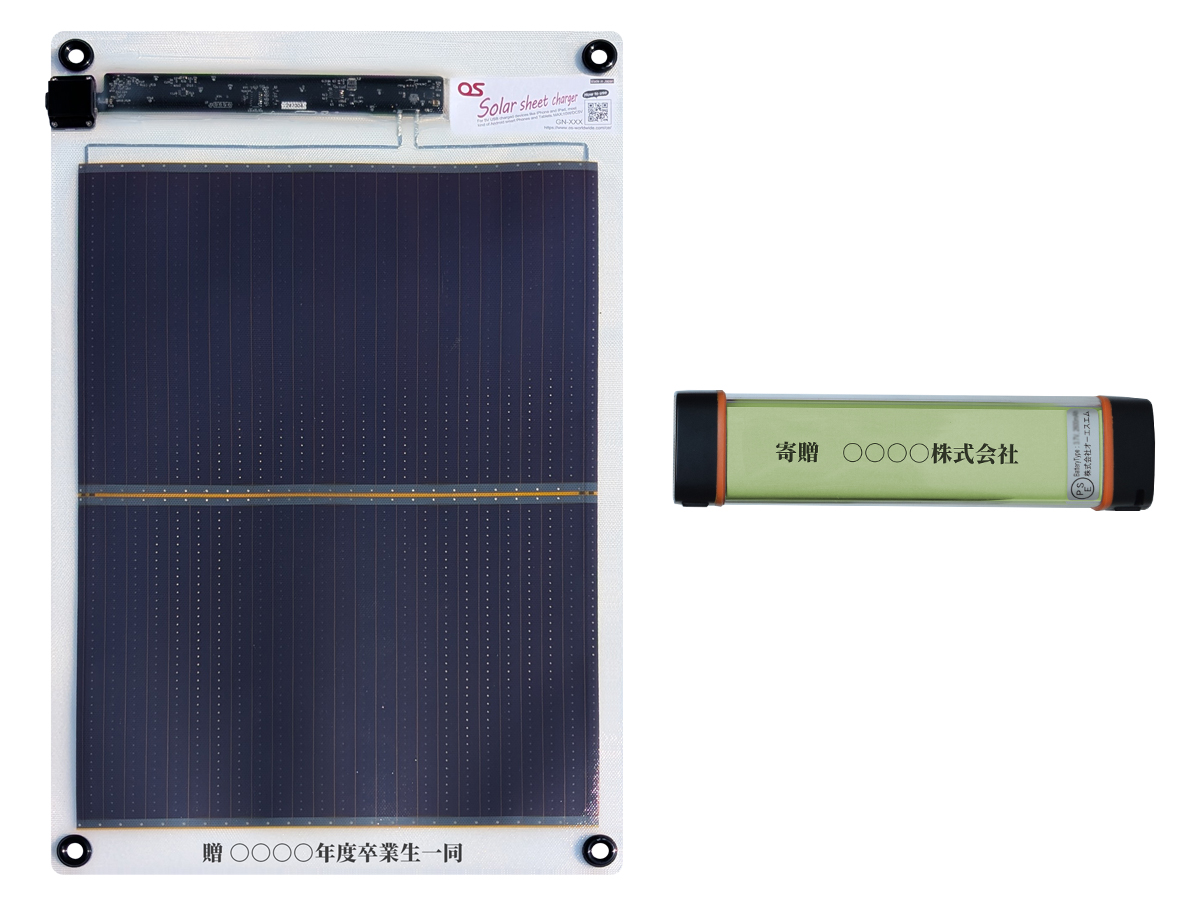

Perfect for gifts and souvenirs (personalization available).

PAGE TOP

Key points

Improvement of power generation capacity

The GN-200 has been improved in terms of power generation capacity*1 to make it more convenient to use for direct charging of smartphones, which are increasingly equipped with large-capacity built-in batteries.

The estimated charging time for a smartphone is approximately 3.4 hours.*2

  • The maximum power generation capacity of a single solar sheet cell has improved by approximately 1.7 times compared to our conventional products.
  • This is an estimated time based on a smartphone battery with 5200mAh/3.7V.
    Power generation capacity varies greatly depending on sunlight conditions, so this value is for reference only and not guaranteed.

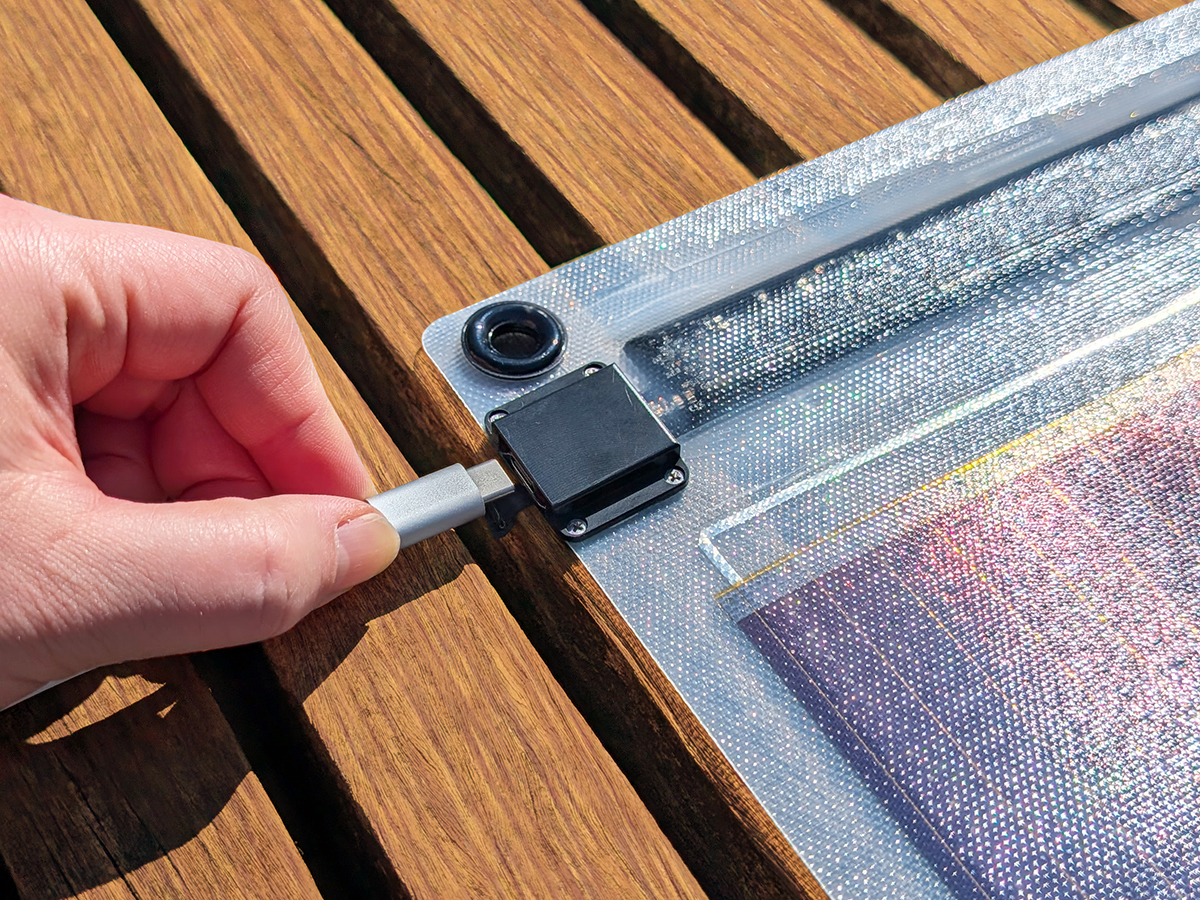

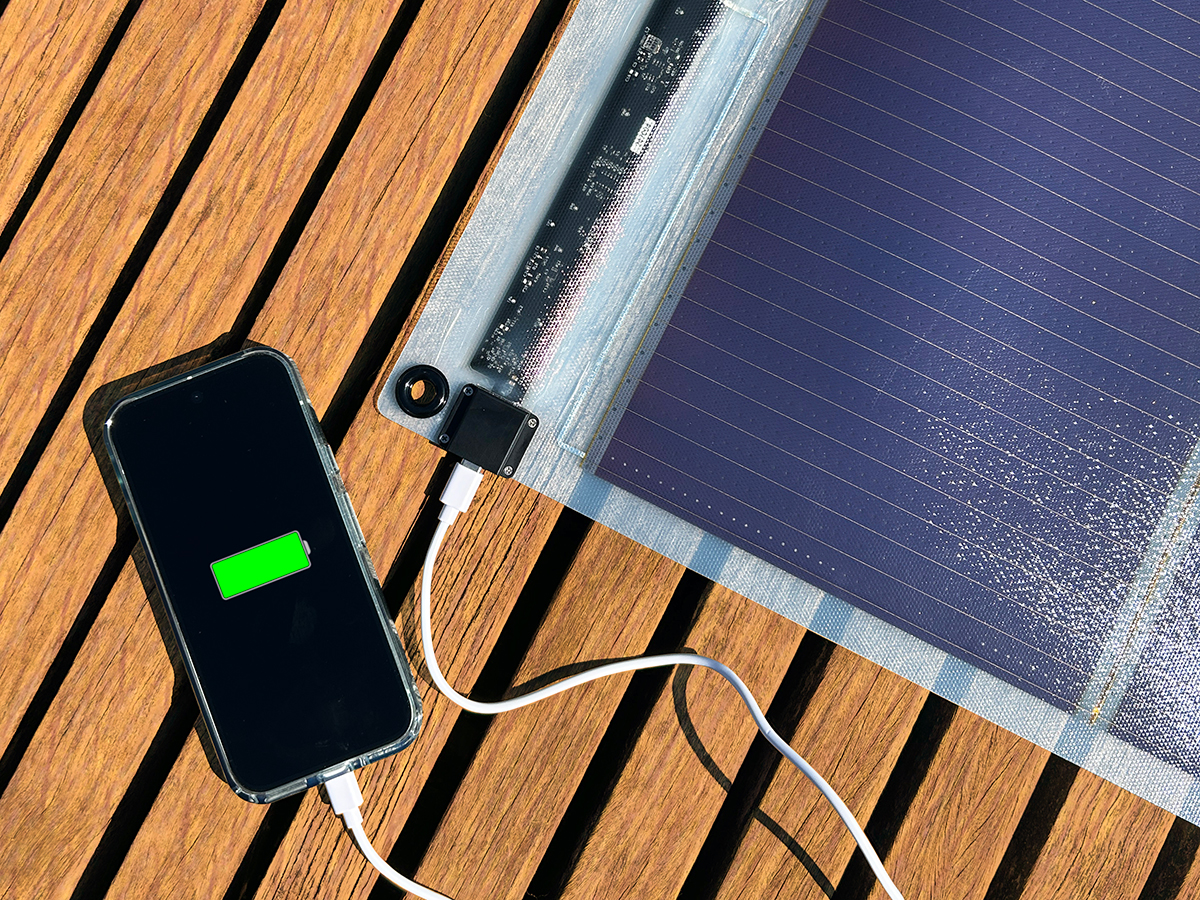

Image of direct charging to a smartphone Image of direct charging to a smartphone* It differs slightly from the final standard product specifications.

Completely waterproof

The DC-DC converter section is completely waterproof, ensuring safe and reliable use near water, in morning dew, or during sudden rain showers outdoors. The fully laminated design, including the circuitry, also improves durability.

The connector is the highly versatile USB Type-C specification, which is becoming the mainstream in the market. It complies with the USB Power Delivery standard, which is supported by many smartphones, resulting in faster charging. Its reversible design eliminates the need to worry about orientation, making it more user-friendly compared to conventional USB Type-A connectors.

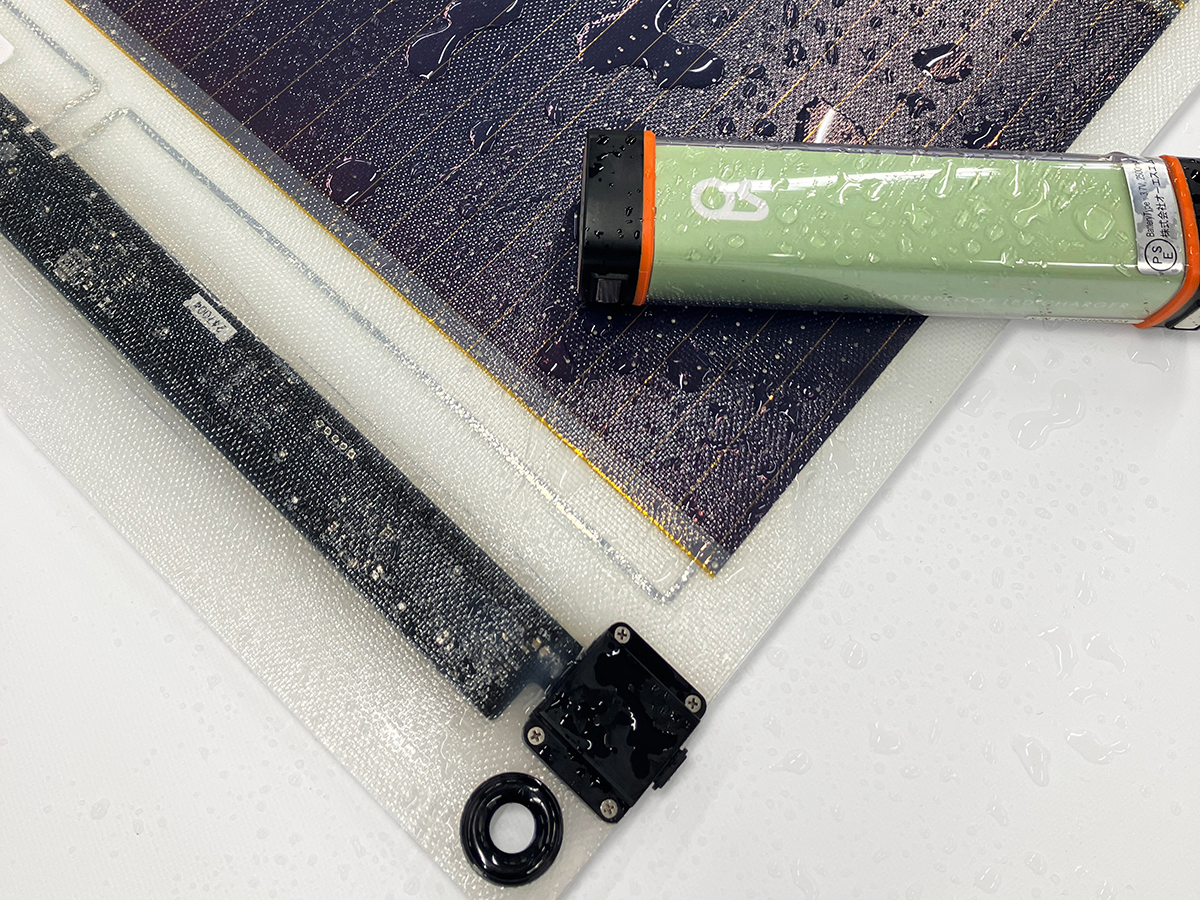

Image of a completely waterproof solar sheet.

The sheet is designed to resist curling and can be easily unfolded for use.

Designed to resist curling and easily unfold for use, this sheet can be deployed smoothly and stress-free not only during emergencies but also during outdoor activities such as camping.

Its uniform, flat surface evenly captures sunlight, ensuring consistent power generation and a stable voltage and current.

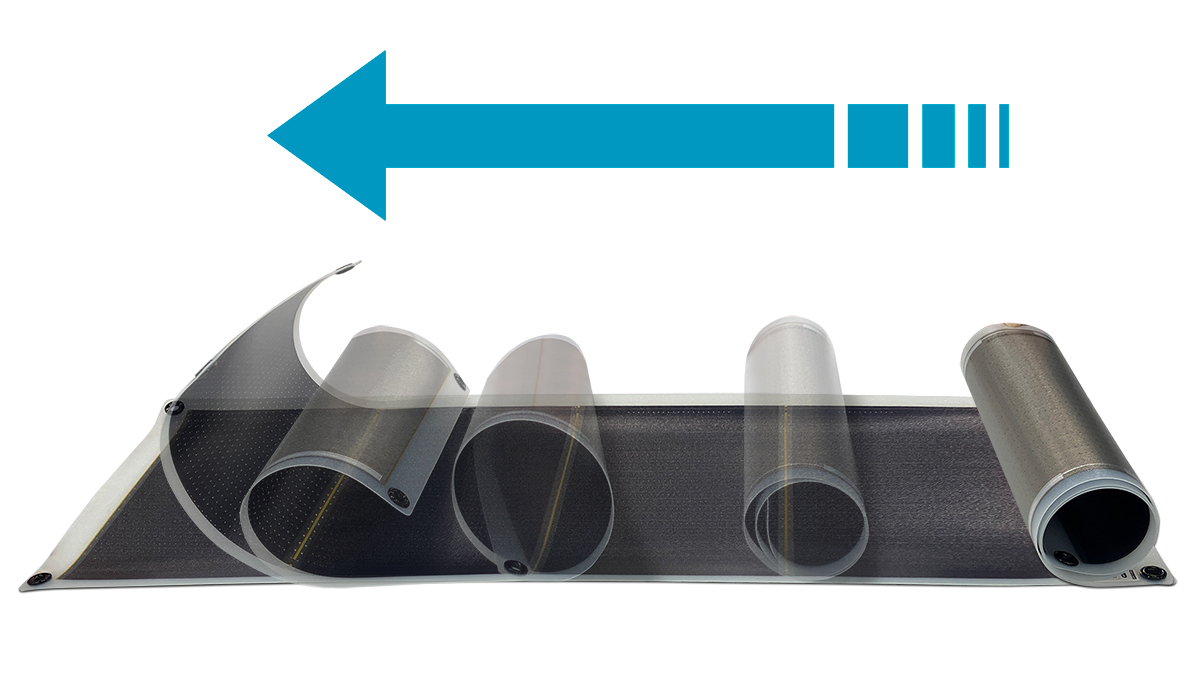

Solar sheet is less prone to curling.

PAGE TOP

Characteristics

  • A solar sheet that generates electricity using sunlight even in locations without a power source.
  • Maximum power generation capacity/maximum output power: 16.2W/10.0W.
  • Can directly charge USB devices such as smartphones, tablets, and mobile batteries.
  • The connector uses USB Type-C, which is becoming mainstream in the market and offers high versatility and fast power supply speed.
  • High IP65 water resistance (USB part is IPX4).
  • Uses a safe amorphous sheet that is resistant to bending and impact and can be rolled up for storage (storage bag included as standard).
  • The sheet is less prone to curling, maintaining the flatness of the power generation surface and ensuring stable voltage and current.
  • Less susceptible to temperature changes, enabling power generation even in harsh, high-temperature conditions like deserts.

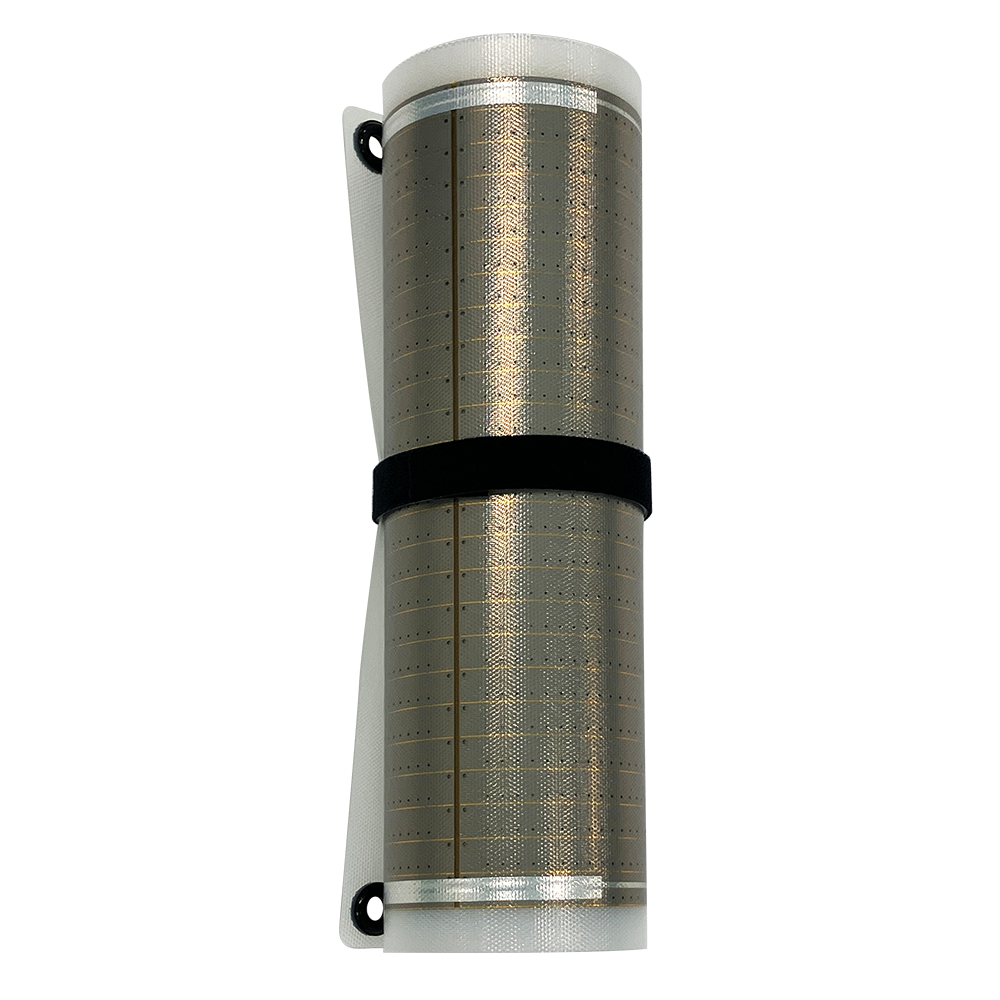

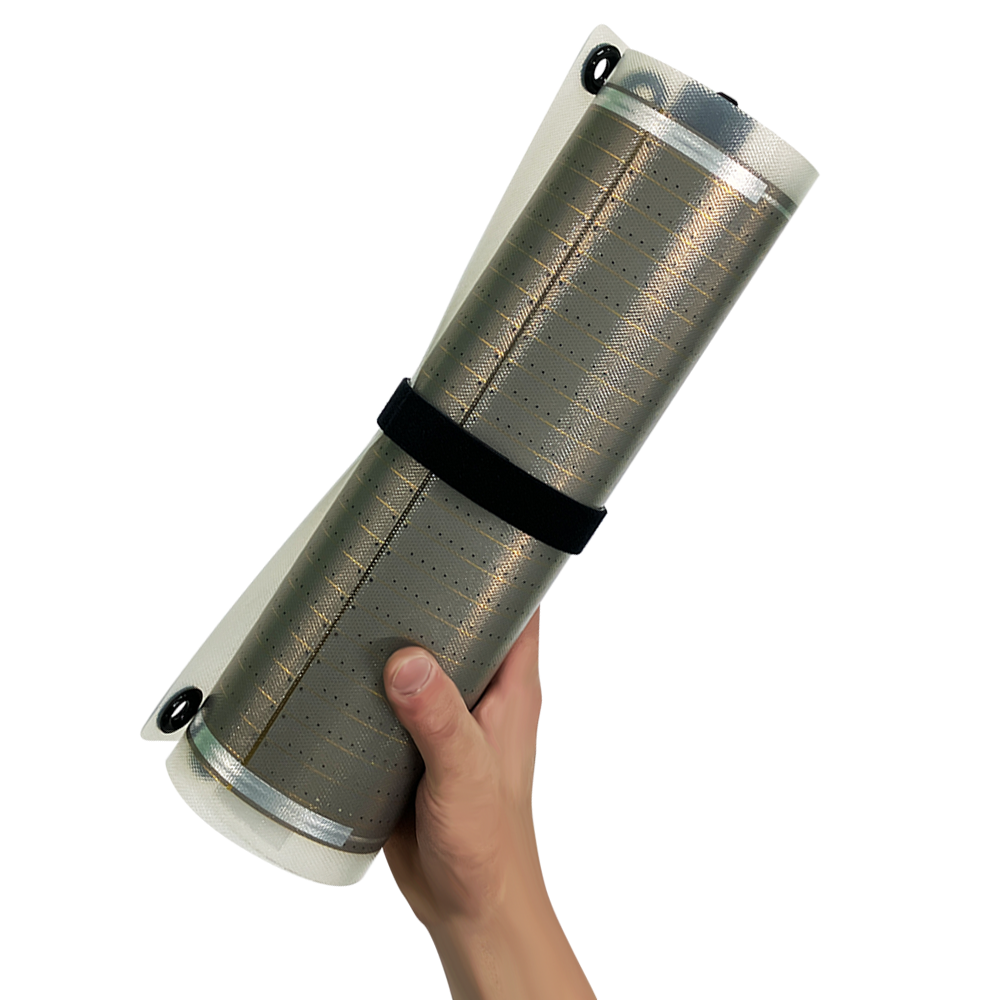

  • Lightweight design at 210g, easily rolled up for compact portability.
  • Equipped with eyelets, allowing you to freely orient the light-receiving surface towards the direction of sunlight by threading a string through it, attaching a carabiner, or hooking it.
  • Made in Japan quality and high reliability.
  • It can directly power USB devices such as small fans and LED lights that do not have a battery function. (Some devices may not be compatible.)

PAGE TOP

Regarding the main material of solar sheets

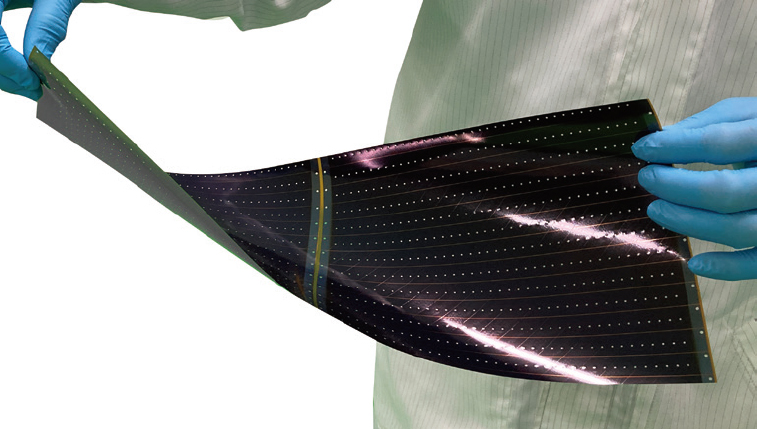

Solar sheet (cell type: SA1001)

This solar sheet offers flexible design, allowing you to freely set the voltage and current values according to your needs.
Its light and thin design allows it to be attached to curved surfaces.
It boasts high heat generation efficiency and stable power generation even in summer and high-temperature regions.

Click here for details

PAGE TOP

Attention
  • The current value of output changes depending on the sunshine condition. When the current decreases, an attention would appear on the screen of smartphone. At that time, pull out the cable once and reconnect it in a location with strong sunshine. In case the output is uncertain, please charge the attached LED charger, or a portable battery charger.
  • If there is ultraviolet (UV) cut glass, the power generation capacity of the sheet may be lowered.
  • When you operate the smartphone while generating and charging with the solar sheet charger, charging may not work properly.
  • Please refrain from operating your smartphone while charging.
  • Charging may not be possible while the smartphone application is launched.
  • Close all the application and start charging.
  • Even if it fulfills above conditions, we do not guarantee that all smartphones and mobile batteries will be charged properly.

PAGE TOP

Specifications

Product name Solar sheet charger 16W type
Model GN-200
JAN code 4942465031556
Main material SA1001
Maximum power generation capacity(W) *1 16.2
Maximum output power (W)*2 10.0
Maximum output voltage (V)*2 5.0
Dimension (mm) L936×W330×t0.8 (Protrusions excluded)
Weight (kg) 0.36
Packing size(mm) L430×D135×H160
Packing weight（kg） 0.45
Operating temperature *3 0℃～＋60℃
Operating humidity *4 85%RH or less (Unless condensation)
Storage temperature*4 －20℃～＋60℃
Waterproof property *5 IP65 / IPX4 (USB section)

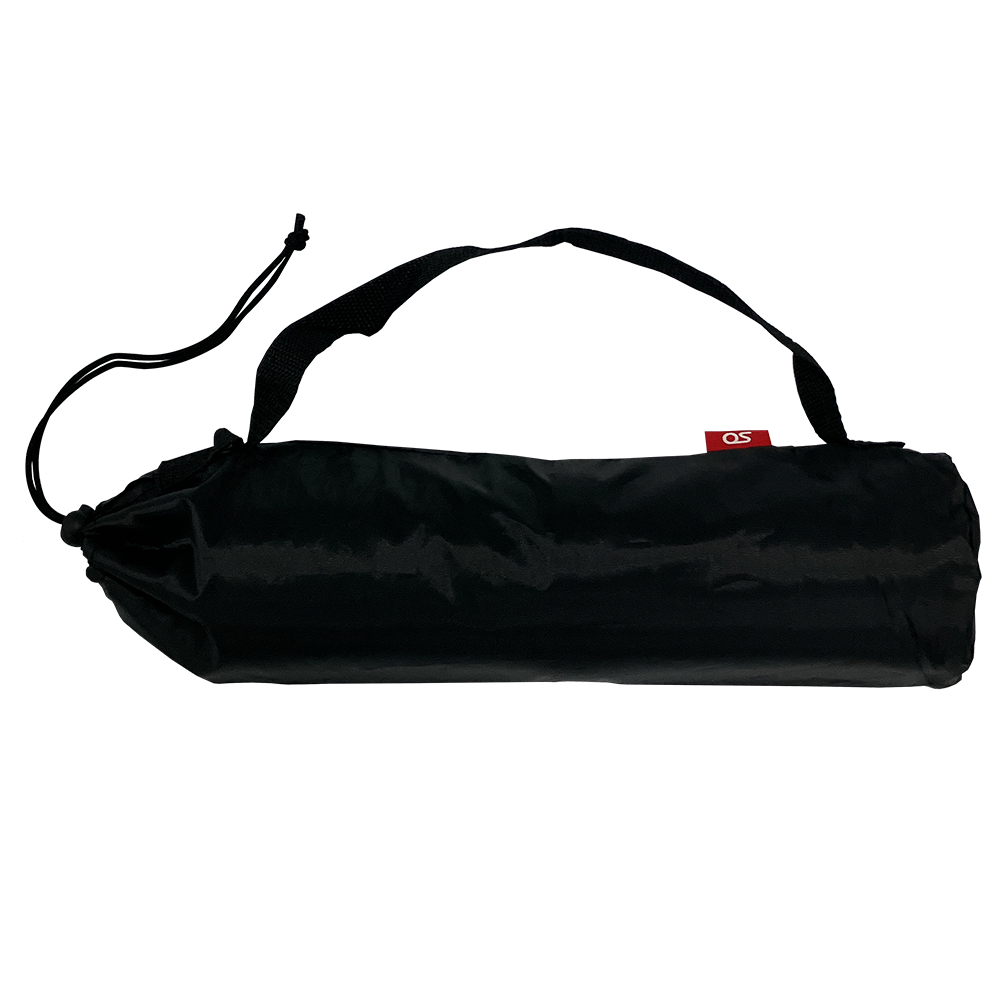

Accessories Storing bag(with strings)×1
  • Maximum power generation capacity is the value for a single cell.
  • The above figures are not guaranteed as power generation capacity changes depending on sunlight conditions.
  • If the product is used in an environment outside of the usage conditions, it may not be possible to obtain the product's intended output.
  • If the operating humidity and storage conditions are exceeded, the main unit may deteriorate significantly and may lead to failure.
  • The dustproof performance of the USB section is not guaranteed.
