This portable power supply features a unique design that integrates the battery into the case.
Its earthquake-resistant design makes it highly durable and usable even in the rain.
Unlike fuel-powered generators, it produces no exhaust fumes or engine noise.
This safe battery box, with its low risk of fire, can be used anywhere, even in disaster-stricken areas, for applications such as surveillance cameras, mobile signage, mobile Wi-Fi, monitoring posts, construction power supplies, and of course, as an emergency power source for public assistance during disasters.
The portable power supply complies with IP45 standards and is expected to be used in a variety of outdoor settings.
Smartphone Charging Stand
By connecting a smartphone charger (10 ports), you can fast-charge multiple smartphones simultaneously.
Lighting equipment in rainy conditions
Electrical products such as lighting equipment can be used in rainy or dusty, harsh environments.
Balloon Floodlight
By simply replacing a gasoline generator with a portable power source, it can be used as a quiet, exhaust-free mini-balloon.
A large-capacity 2.5kWh AC output type suitable for on-site use.
High-quality, domestically produced design
We manufactured a battery pack that perfectly matches the shape of the highly waterproof PELICAN case. Through unconventional thinking, we achieved the largest battery capacity (2560Wh) in this size. You can use it with confidence knowing it's made in Japan.

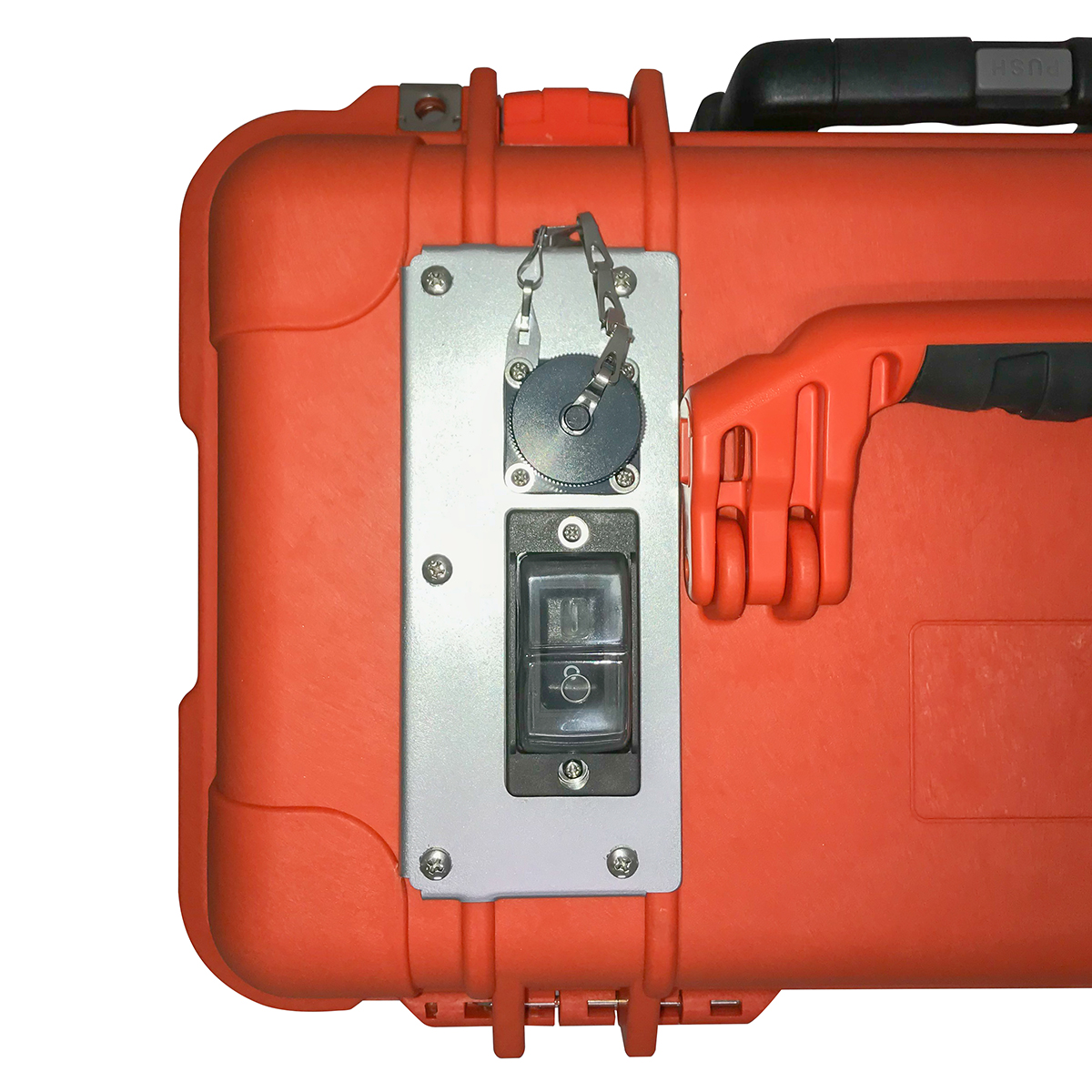

Waterproof Circuit Breaker
In the event of a short circuit in the AC output during rainfall, the waterproof circuit breaker will automatically shut off the circuit. Its safety design ensures safe use outdoors.

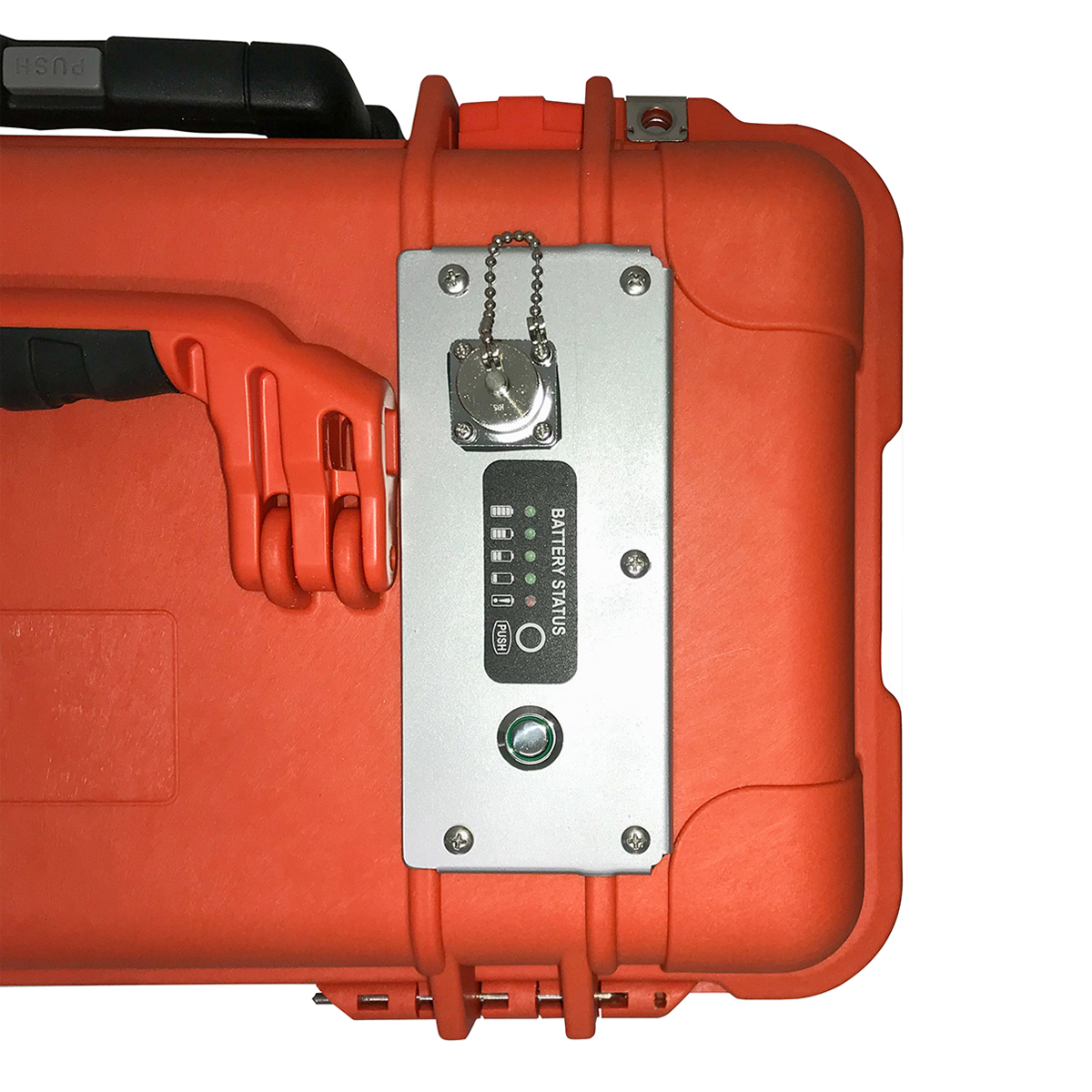

Battery level indicator
Includes a battery level indicator that allows you to check the battery capacity from the outside of the case.
Communication Status Monitoring
By connecting a PC to the communication terminal, you can display the usage status of this product on the PC screen.

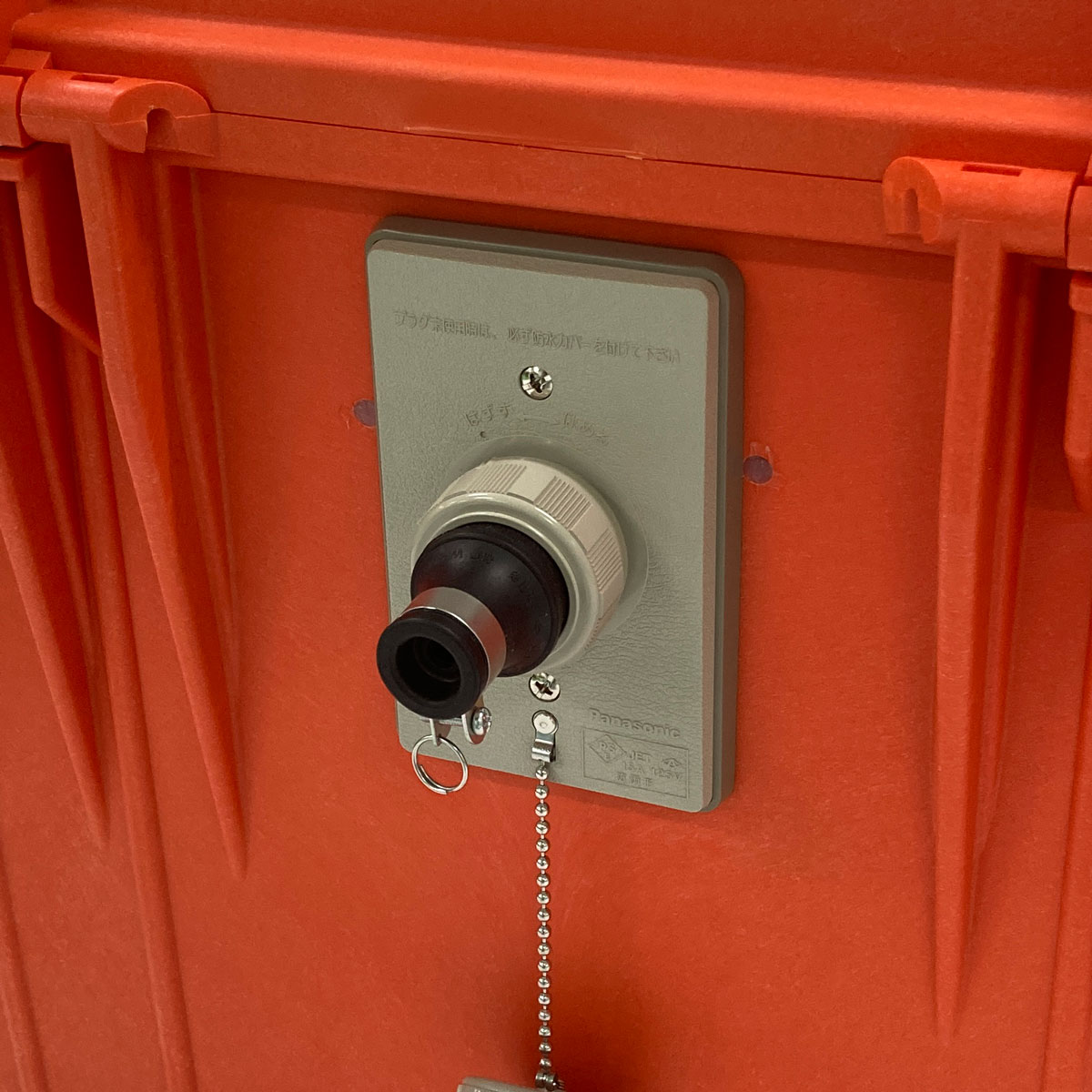

Waterproof AC Outlet
By replacing the male connector of the outlet with the included terminal, the waterproof performance of the outlet can be ensured. Ideal for outdoor power supply.

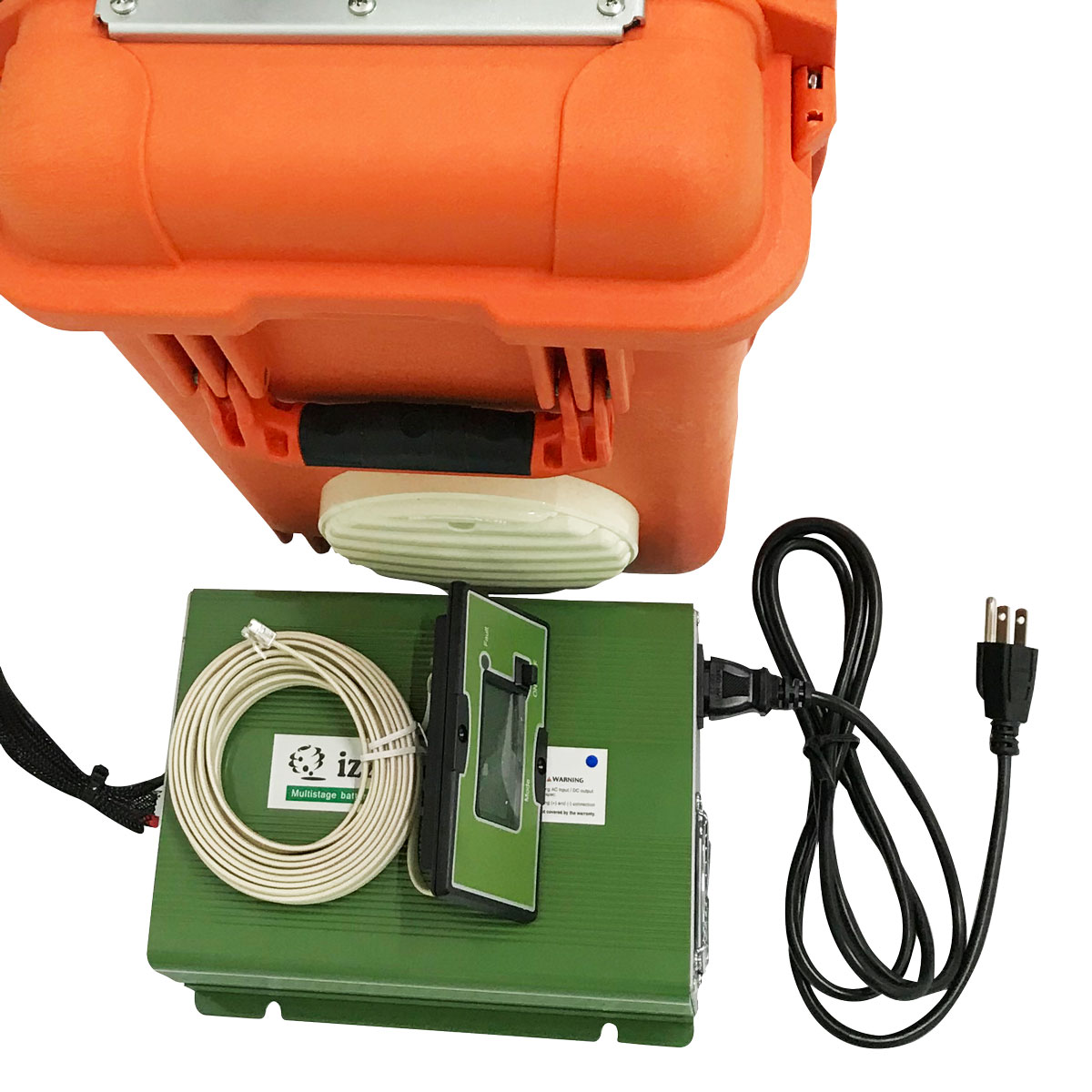

Included charger
The included charger can be used to fully charge the device in approximately 10 hours.
*Please inquire with each country and airline regarding bringing batteries onto aircraft.
*These are estimated usage times when each product is fully charged. *The power consumption of each product is only an estimate and may vary depending on the device used.
Solar sheets are customizable. We accept made-to-order orders to suit your usage conditions and environment.
Enabling solar charging in various locations during prolonged disasters.
We also have the GB-1000C-AC02, which has more compact external dimensions.
For more details, please check the GB-1000C-AC02 details page.
| Product name | Mobile power supply |
|---|---|
| Model | GB-2500C-AC02 |
| Main material | Resin (waterproof case, air intake/exhaust vents) |
| Battery type | Lithium iron phosphate battery (IP1001) |
| Battery capacity (Wh) | 2560 |
| Charging voltage | AC100V (dedicated charger) DC24V (solar sheet) |
| Nominal output | 1500W (AC100V, 50Hz, sine wave) |
| Maximum instantaneous output | 3000W (AC100V) |
| Charging time *1 | AC100V (dedicated charger) : Approx 10h (80%) 288W solar sheet : Approx 20h (80%) |
| Usable time *2 | Approx 20h / 100W |
| Dimension (mm) | W500×D305×H457 |
| Weight (kg) | Approx 38 |
| Storage temperature *3 | 0℃～＋45℃ |
| Operating humidity *3 | 85%RH or less (Unless condensation) |
| Waterproof property *4 | IP45 |
| Accessories | Dedicated charger (complete set of cables)×1 waterproof locking cap plug×1 |
