GB-1000C-AC02Mobile power supply

•
•
•
•
•
•

This portable power supply features a unique design that integrates the battery into the case.
Its earthquake-resistant design makes it highly durable and usable even in the rain.
Unlike fuel-powered generators, it produces no exhaust fumes or engine noise.
This safe battery box, with its low risk of fire, can be used anywhere, even in disaster-stricken areas, for applications such as surveillance cameras, mobile signage, mobile Wi-Fi, monitoring posts, construction power supplies, and of course, as an emergency power source for public assistance during disasters.

Application example

The portable power supply complies with IP45 standards and is expected to be used in a variety of outdoor settings.

Smartphone Charging Stand
By connecting a smartphone charger (10 ports), you can fast-charge multiple smartphones simultaneously.

Lighting equipment in rainy conditions
Electrical products such as lighting equipment can be used in rainy or dusty, harsh environments.

Balloon Floodlight
By simply replacing a gasoline generator with a portable power source, it can be used as a quiet, exhaust-free mini-balloon.

PAGE TOP

Characteristics

A large-capacity 1.0kWh AC output type suitable for on-site use.

• A waterproof battery box that allows for rapid charging and high-rate discharge with the lid closed.

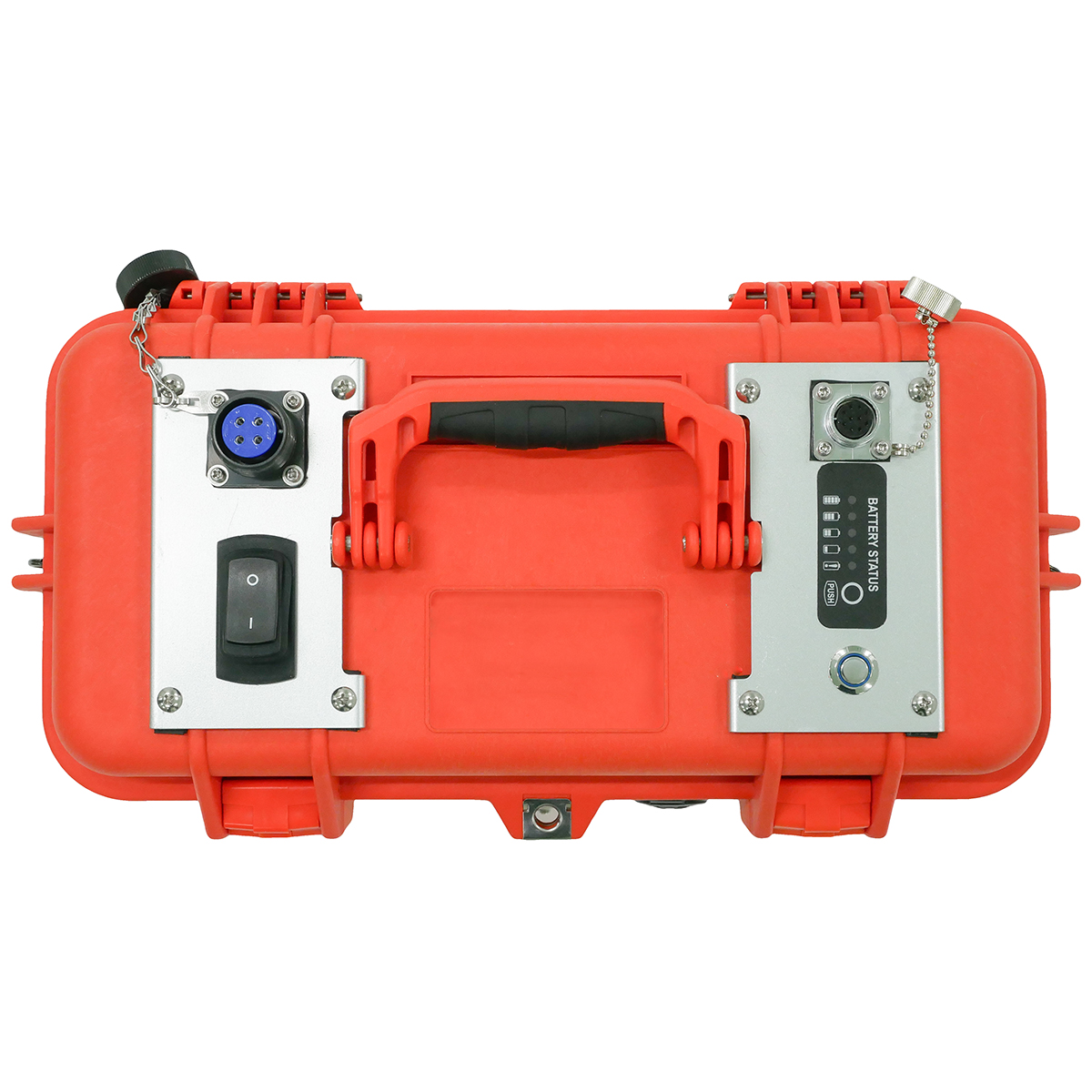

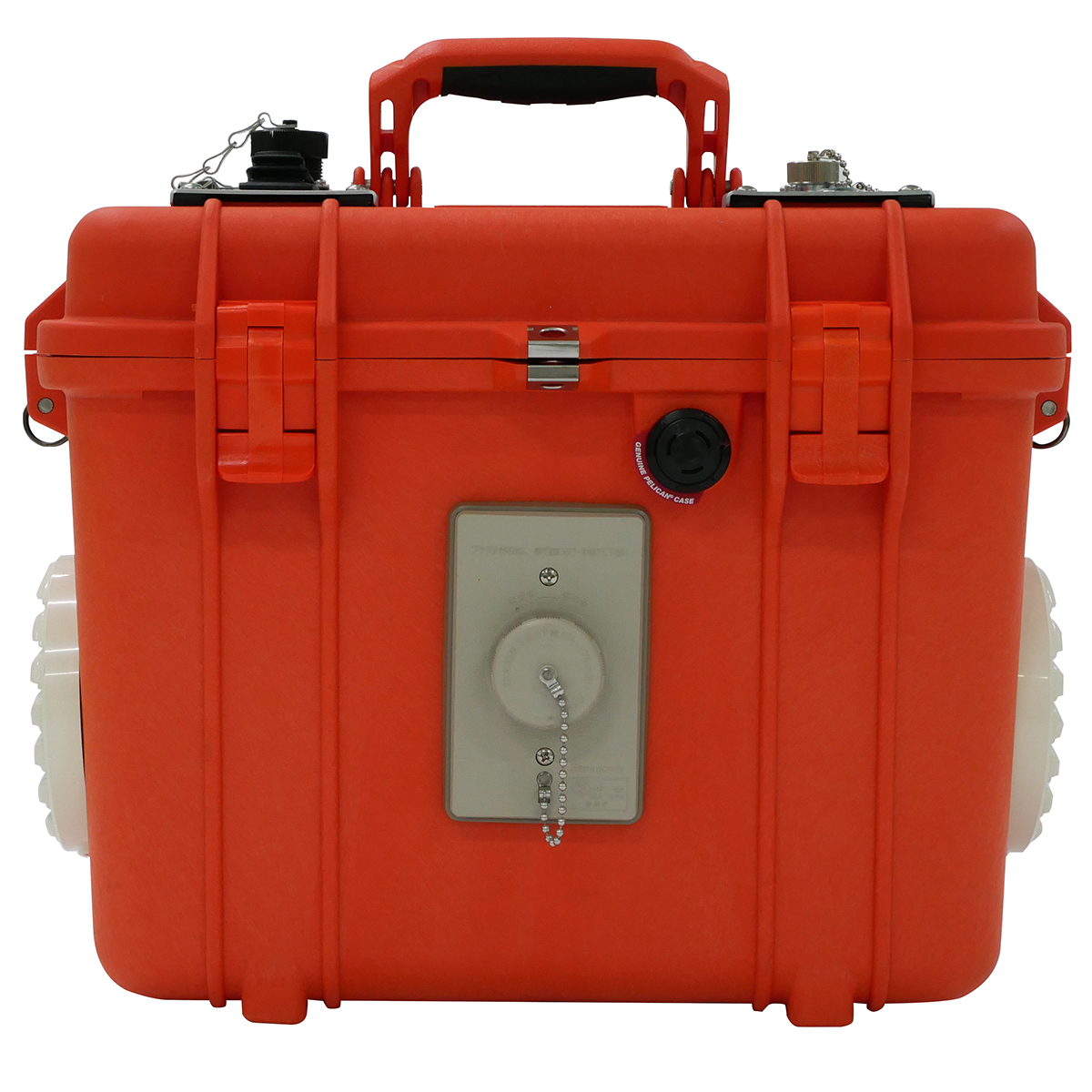

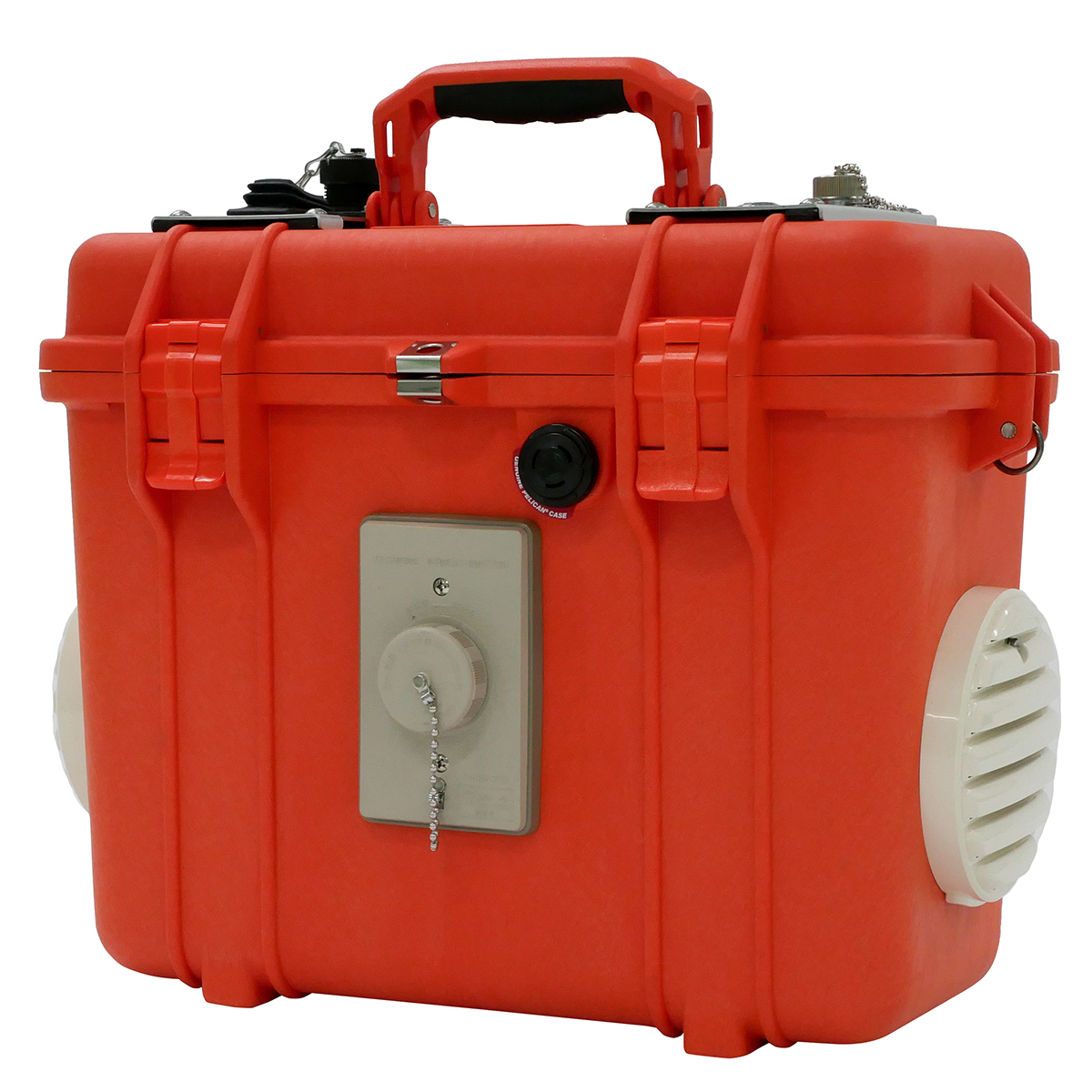

• Equipped with a 1.0kWh battery pack in a compact PELICAN 1430 body, it boasts a 500W/AC100V output.
• IP45-compliant* waterproof performance for use in harsh environments.
• With a lifespan of over 2,000 charge/discharge cycles and a safe battery and cell type (IP1001) that is resistant to explosion and ignition.

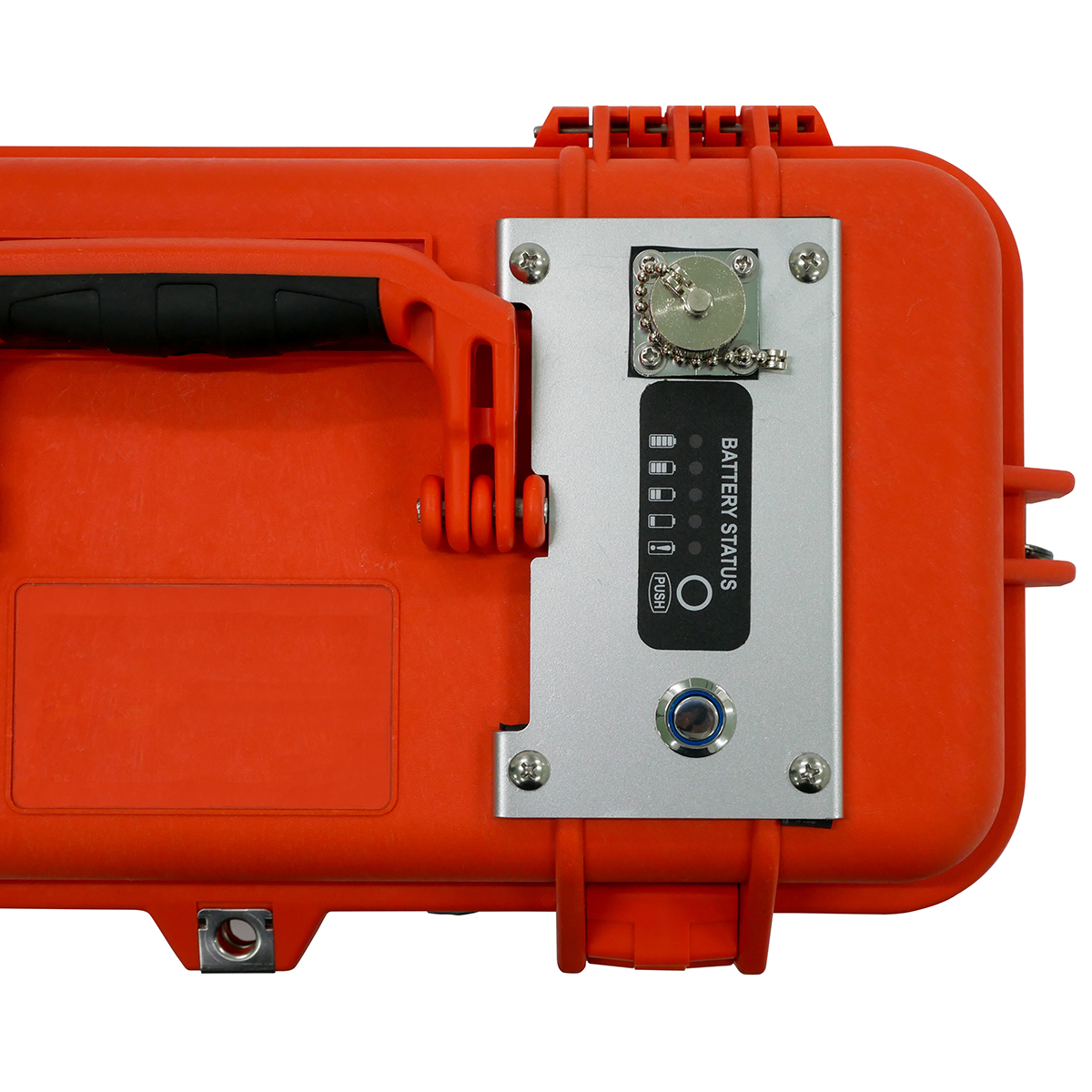

• Features a battery level indicator to check remaining battery life.

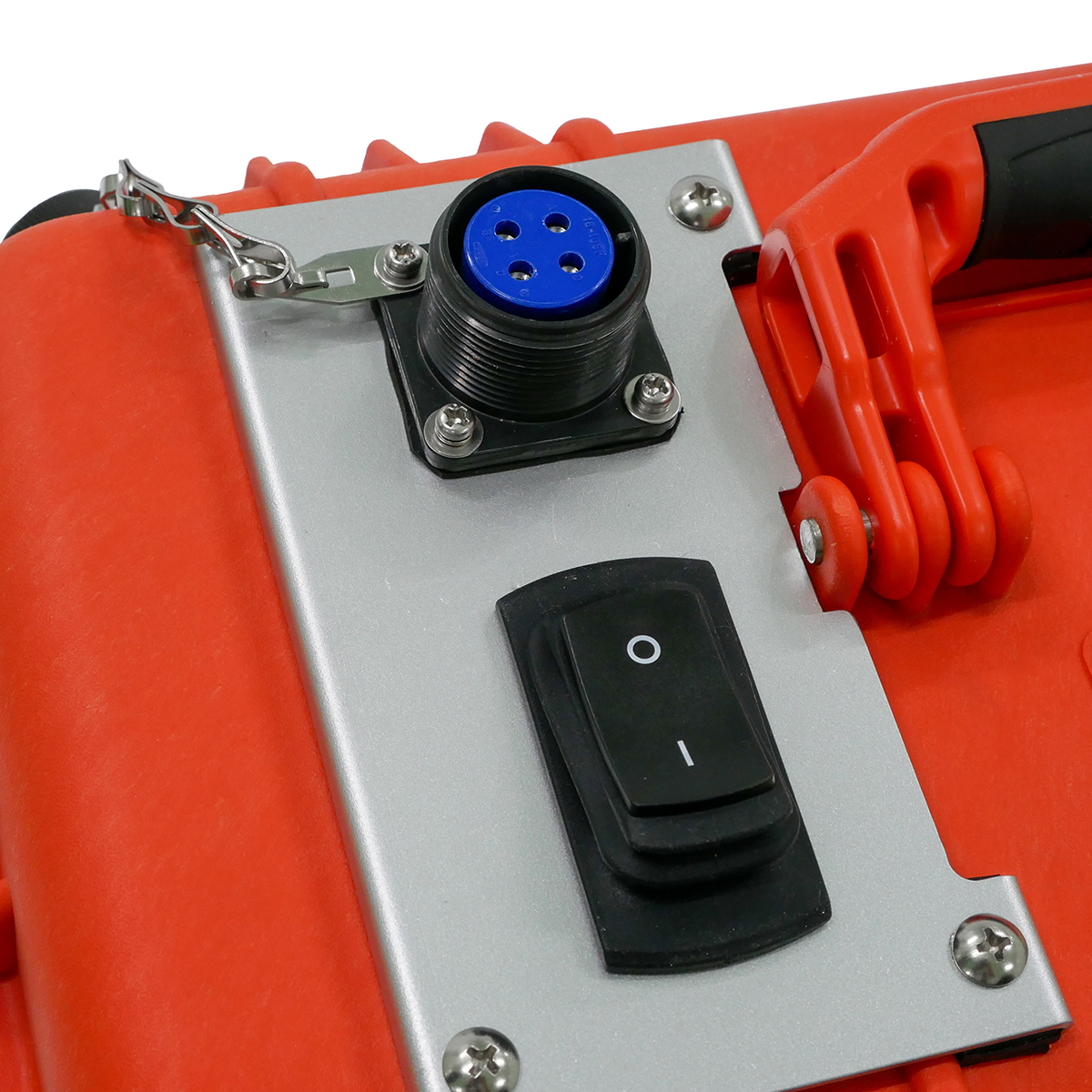

• Includes a waterproof circuit breaker to protect against overcurrents to electrical equipment.
• Can be charged from a solar sheet.

*Cannot accommodate wire-shaped objects with a diameter of 1 mm. Unaffected by direct water jets from any direction.

*Please inquire with each country and airline regarding bringing batteries onto aircraft.

PAGE TOP

Guidelines for the use of portable power supplies

*These are estimated usage times when each product is fully charged. *The power consumption of each product is only an estimate and may vary depending on the device used.

PAGE TOP

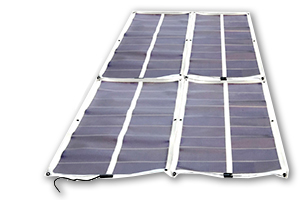

Solar sheet ideal for charging portable power supplies

Optimal Solar Sheet GA-7226F01-4 (72W x 4-panel sheet, 288W output)

Solar sheets are customizable. We accept made-to-order orders to suit your usage conditions and environment.
Enabling solar charging in various locations during prolonged disasters.

PAGE TOP

Larger capacity portable power supply

We also have the GB-2500C-AC01 with a battery capacity of 2560Wh.
For more details, please check the GB-2500C-AC01 details page.

PAGE TOP

Specifications

• The power generation efficiency of the solar sheet varies depending on sunlight conditions, therefore the above values ​​are not guaranteed.
• These are reference values ​​and not guaranteed values.
• The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
• Waterproof performance is maintained only when the covers of each connector are securely closed.
  Do not use the unit when it is wet.
  Before use, be sure to wipe off any moisture with a cloth or allow the unit to dry completely.
