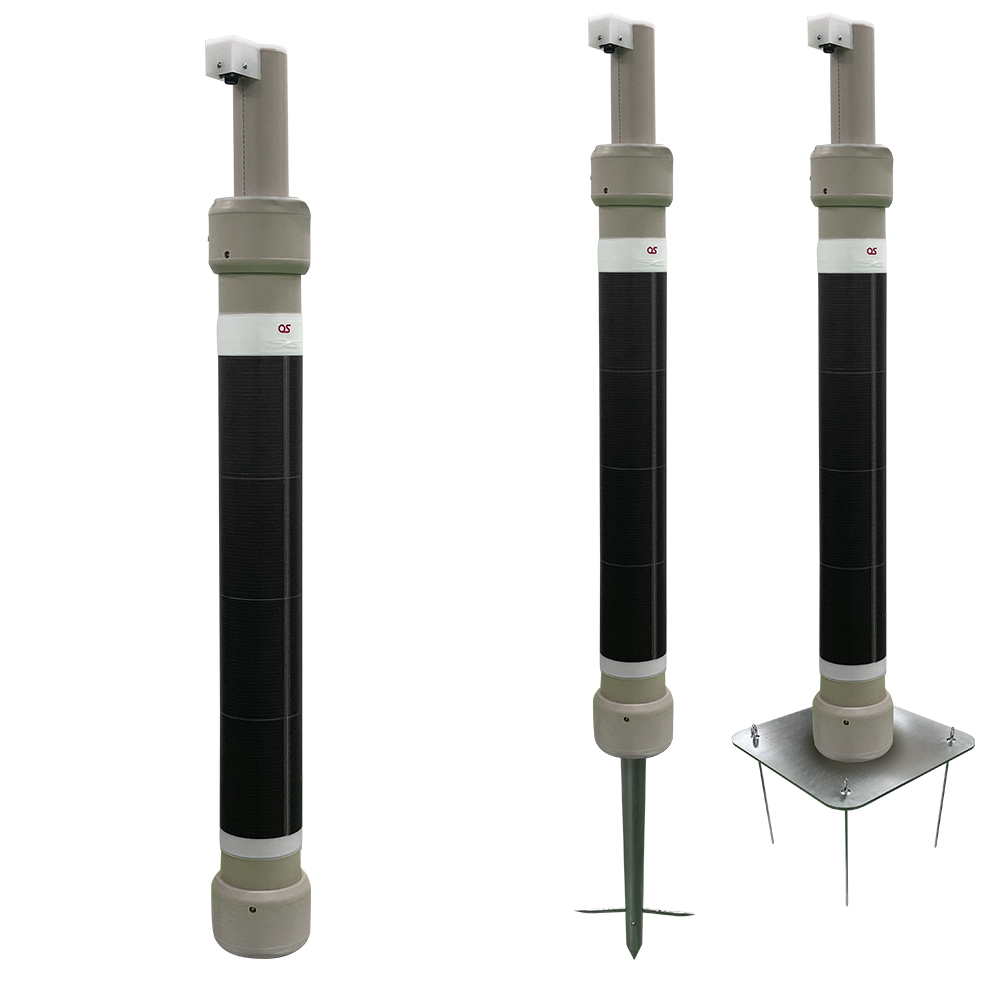

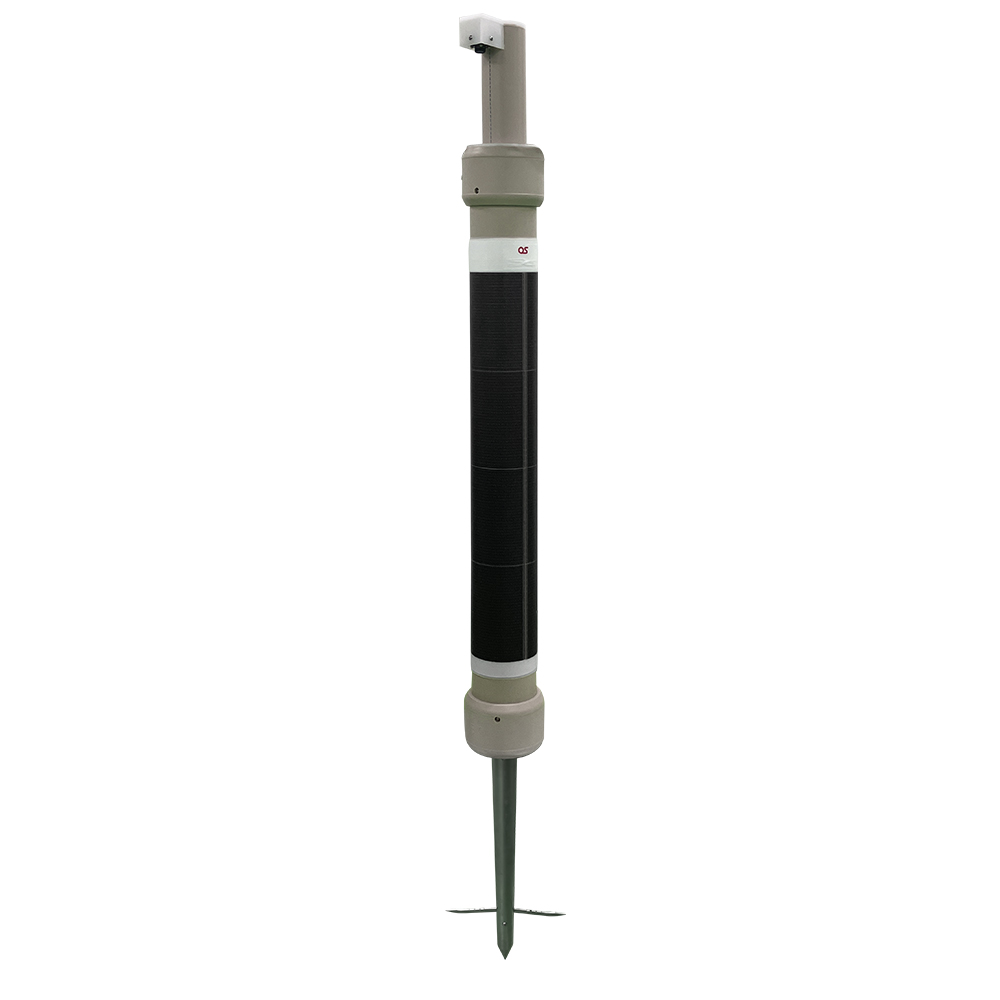

A lightweight, compact, and relocatable off-grid power pole.

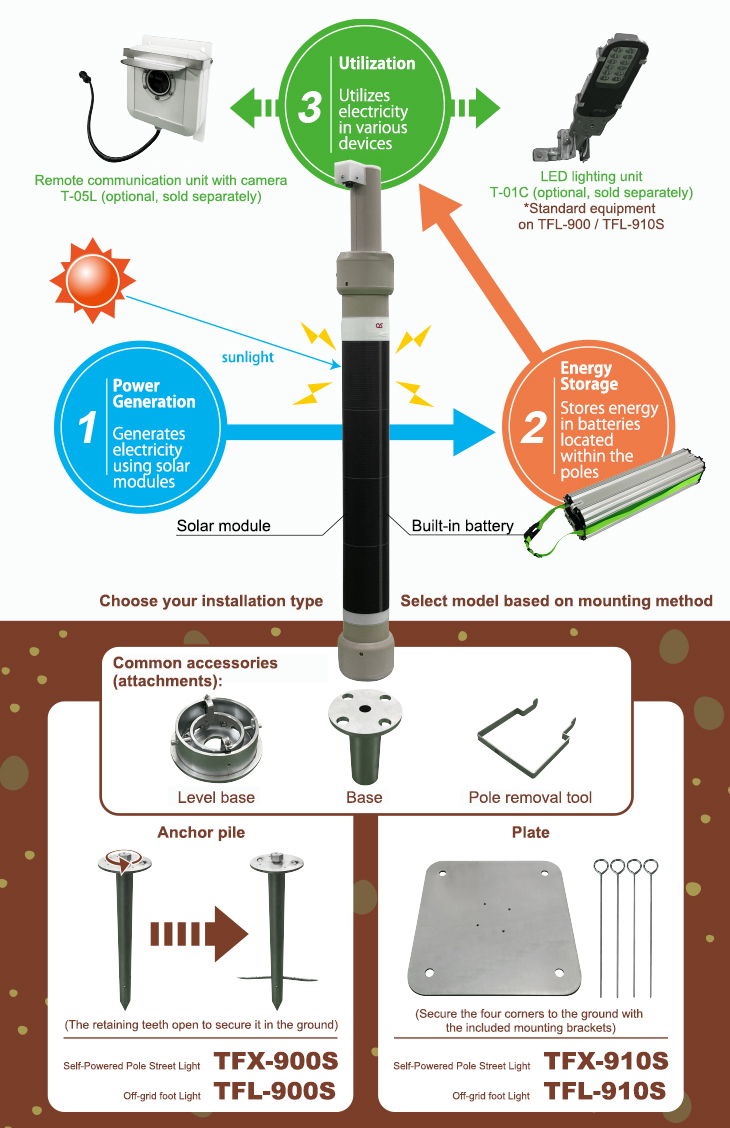

Two installation types are available to suit different site needs. The anchor pile system, designed for increased resistance to pull-out, offers greater safety and flexibility in construction plans. The plate system is convenient for relocation.
No commercial power supply needed! A mobile off-grid power pole that generates electricity where there is no power, operating on 100% renewable energy from solar and batteries.
In addition to the easily movable "plate system," we also offer the "anchor pile system," which uses mechanically deployed anchor "anti-loosening teeth" inserted into the ground to provide resistance within the soil.
The "anchor pile system" employs a design that meets our company's safety standards for durability and reliability, based on anchor pull-out tests conducted in both the open and closed states of the anti-loosening teeth.

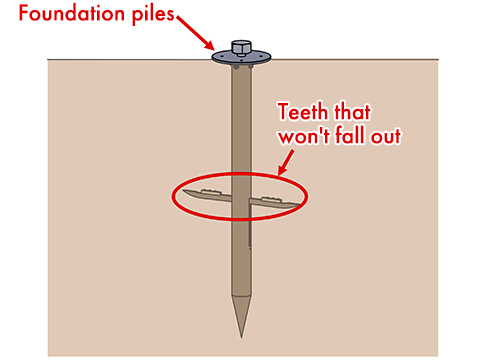

Anchor pile foundation section
| Installation type | Anchor Pile | Plate |
|---|---|---|
| Model | TFX-900S | TFX-910S |
| Base shape |  The anchor's retaining teeth are extended and fixed into the ground. |
 Insert the included mounting brackets (pegs) into the ground at the four corners of the plate to secure it. |
| Pole fixing method |

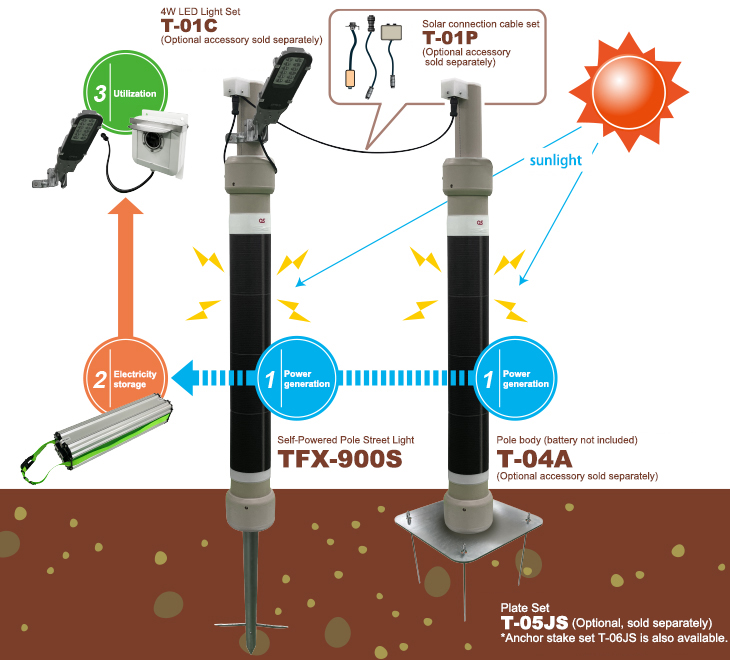

By combining the cascade options "Pole Body T-04A," "Plate Set T-05JS or Anchor Stake Set T-06JS," and "Solar Connection Cable Set T-01P," you can cascade together the equivalent of one solar sheet (20W), increasing power generation.
*The pole body does not have a built-in battery.
*A pre-assembled product, the "Off-Grid Footlight TFX-900S Series," is also available, which combines the "Off-Grid Power Pole TFX-900S Series" and the "4W LED Light Set T-01C."

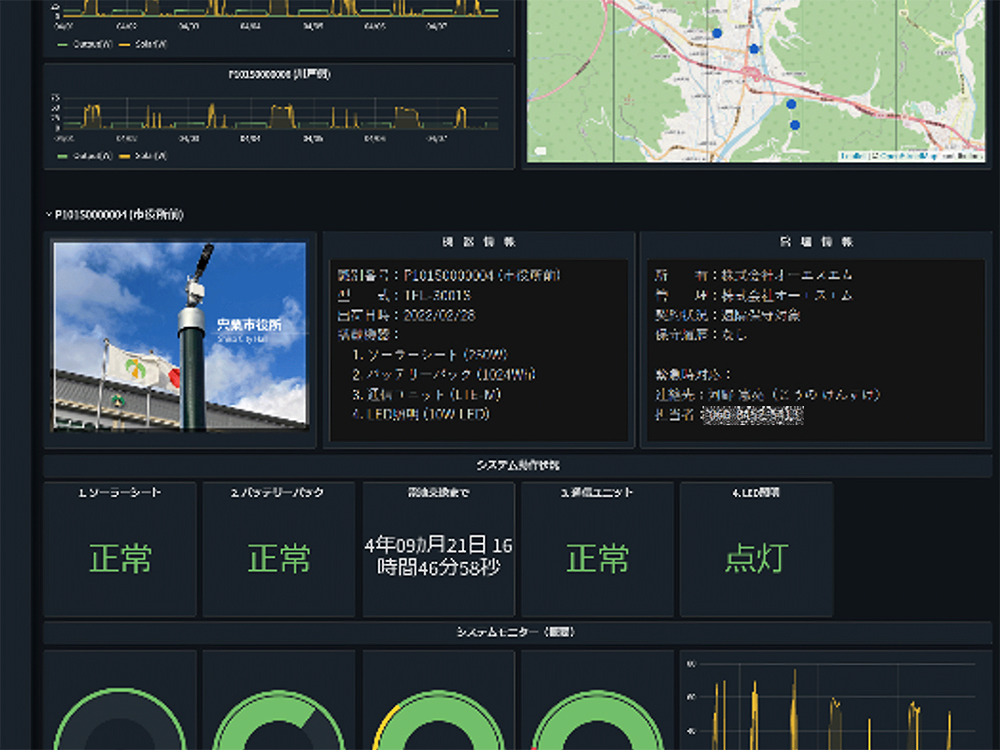

You can monitor solar power generation status, stored energy, and the operation status of lights and sensors from the management screen. Even with multiple units installed, you can check the status at a glance, and you can also export the operating status as a CSV file. Maintenance and management can be easily performed remotely.
* The management functions shown in the upper right diagram are just an example. Actual functions will vary depending on your application. Please contact us for details.
* Additional communication fees are required for image communication and monitoring of the operating status of the communication camera.
| Type | TFX-900S | TFX-910S | |
|---|---|---|---|
| Product appearance | |
|
|
| Body | Material | Resin / Steel | |

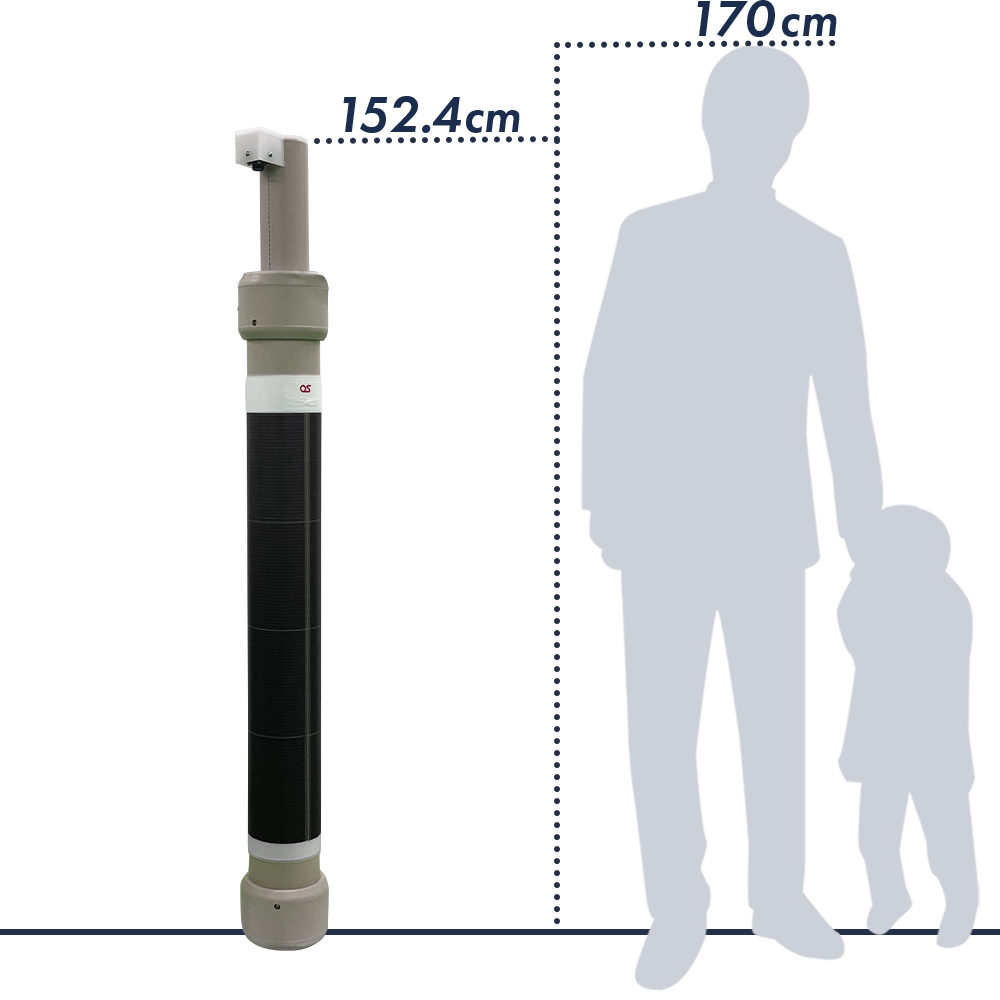

| Dimensions (mm) | φ172×H1524(Excluding the part that is driven in) | W400×D400×H1530 | |
| Weight (kg) | 13.1 | 16.6 | |
| Solar | Material | SA1001 | |
| Power generation capacity | 20W *1 | ||
| Water proof properties | IP65 (Solar sheet only) | ||
| Control / Battery |
LED control method | PWM | |
| Control voltage | DC12V | ||
| Operation temperature | -10℃～+45℃ | ||
| Dimensions (mm) | L433×H106×D106 (Excluding protrusions) | ||
| Weight (kg) | 4.2 | ||
| Material | IP1001 | ||
| Capacity | 256Wh | ||
| Voltage | DC12V | ||
| Water proof properties | IP65 | ||
| Accessories |  T-06JS Anchor pile set *Includes survey stakes and positioning jigs for ground investigation. |
 T-05JS Plate set |
|
* Product specifications are subject to change without notice.
Options for pole mounting

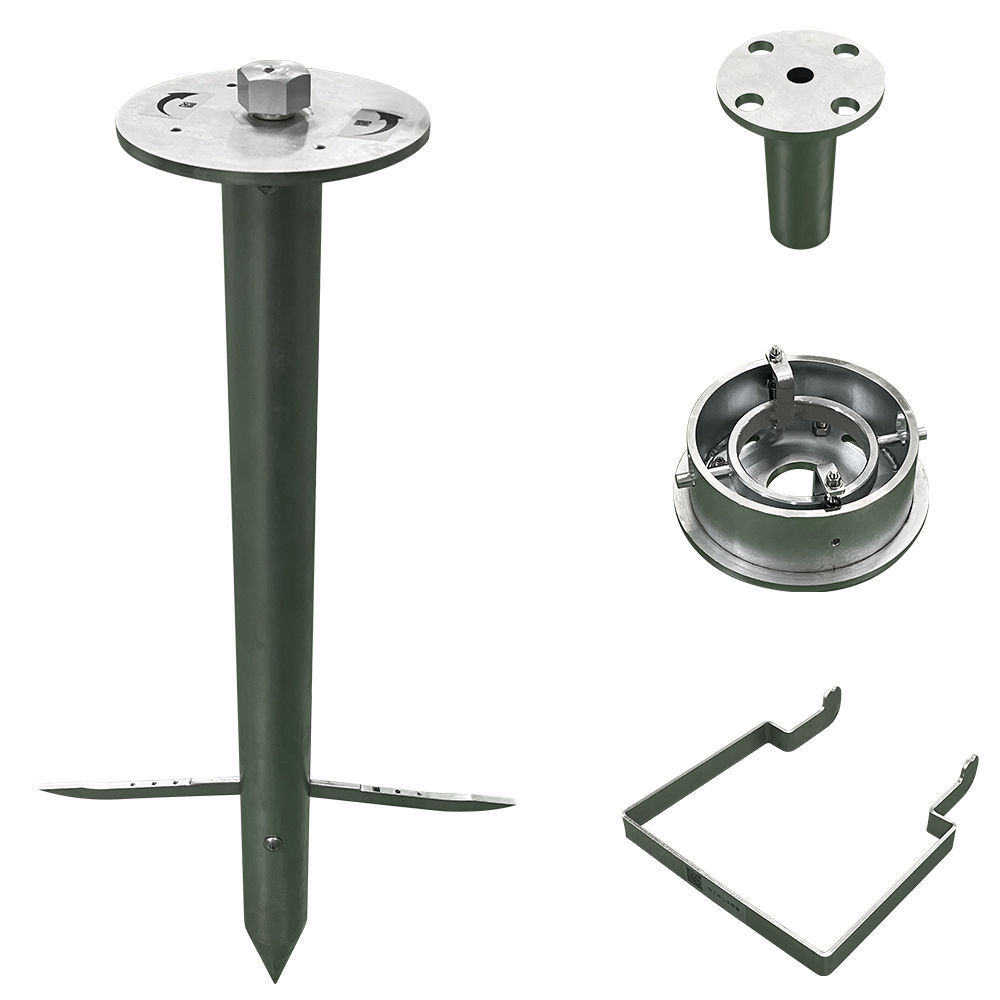

Anchor pile set (T-06JS)
Included as standard with the TFX-900S.
*Includes ground investigation jig.

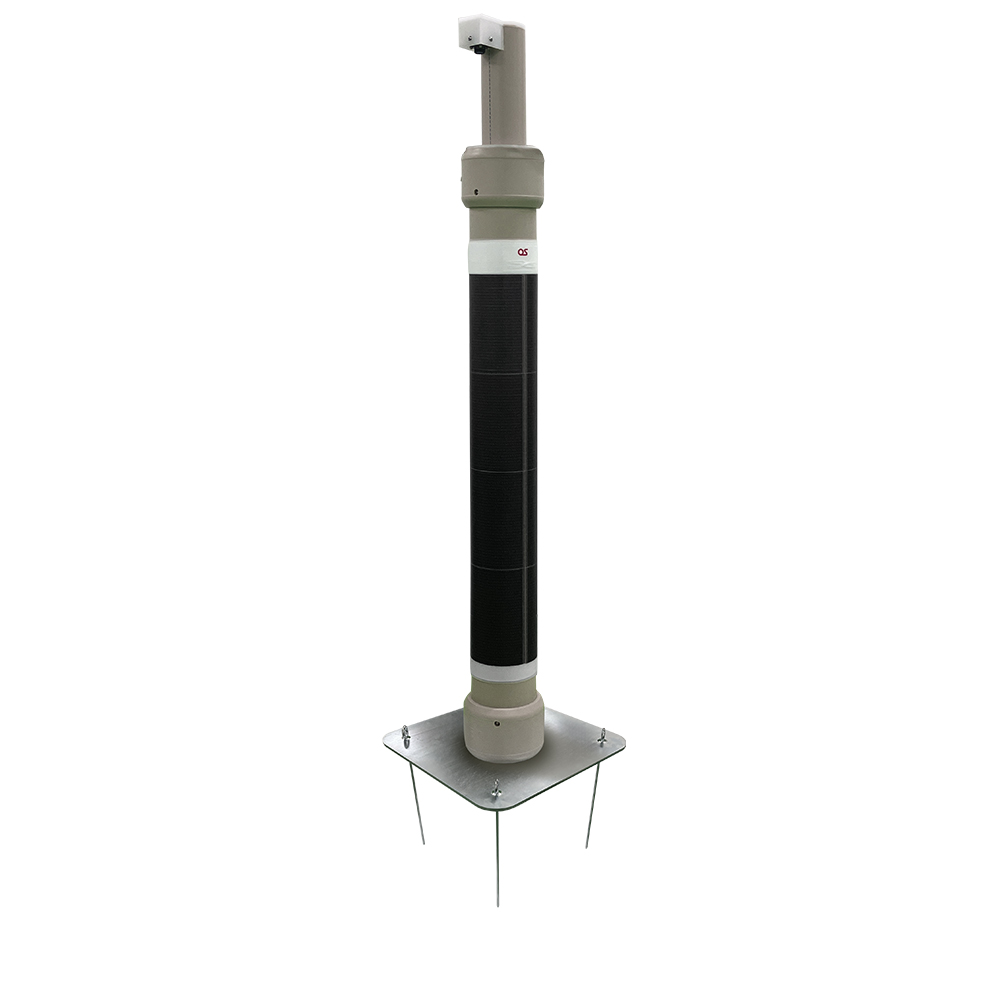

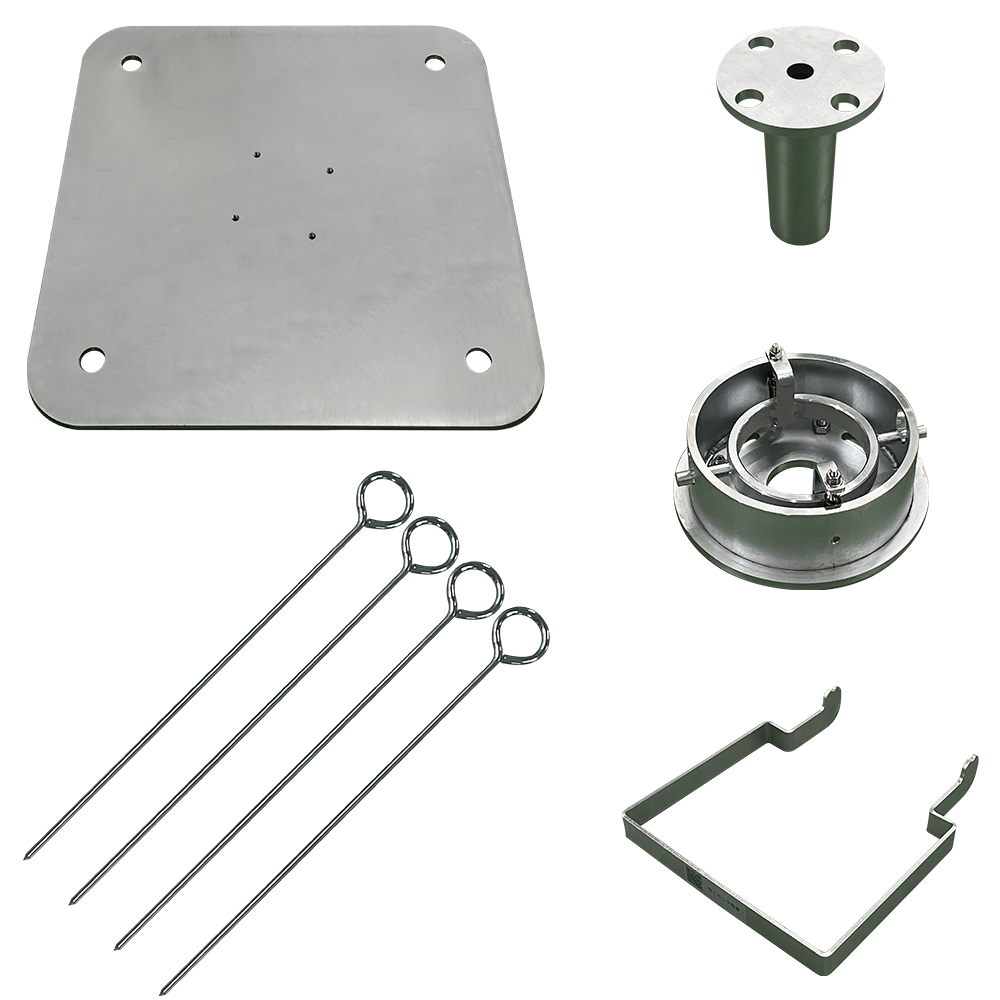

Plate set (T-05JS)
It comes standard with the TFX-910S.
Anchor pile (T-06J)
It can also be used to secure overhead structures other than power poles (customer-supplied items).
*Includes ground survey jig.
Plate (T-05J)
This can also be used when relocating anchor pile-fixed type systems, specifically when fixing them with plates at the new location.
Attachment (T-04J)
A set of level base and pole removal tool.
Various unit options
Anchor pile (T-06J)
It can also be used to secure overhead structures other than power poles (customer-supplied items).
*Includes ground survey jig.

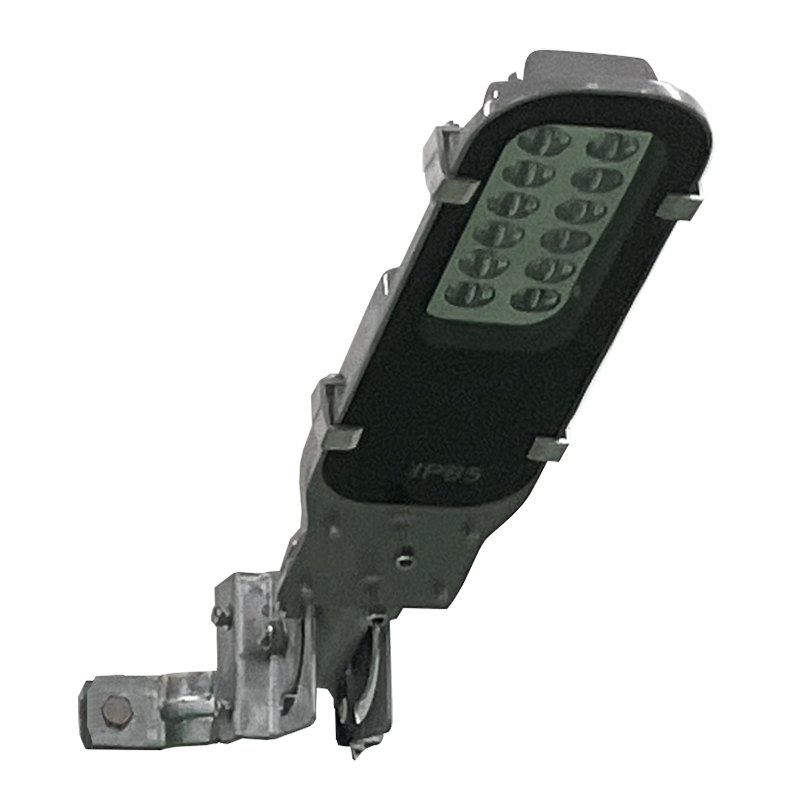

4W LED Light Set (T-01C)
A 4W LED light set for TFL-3001/2001/1001S/TFX-1001S/TFX-900S/TFX-910S.
Cascade options

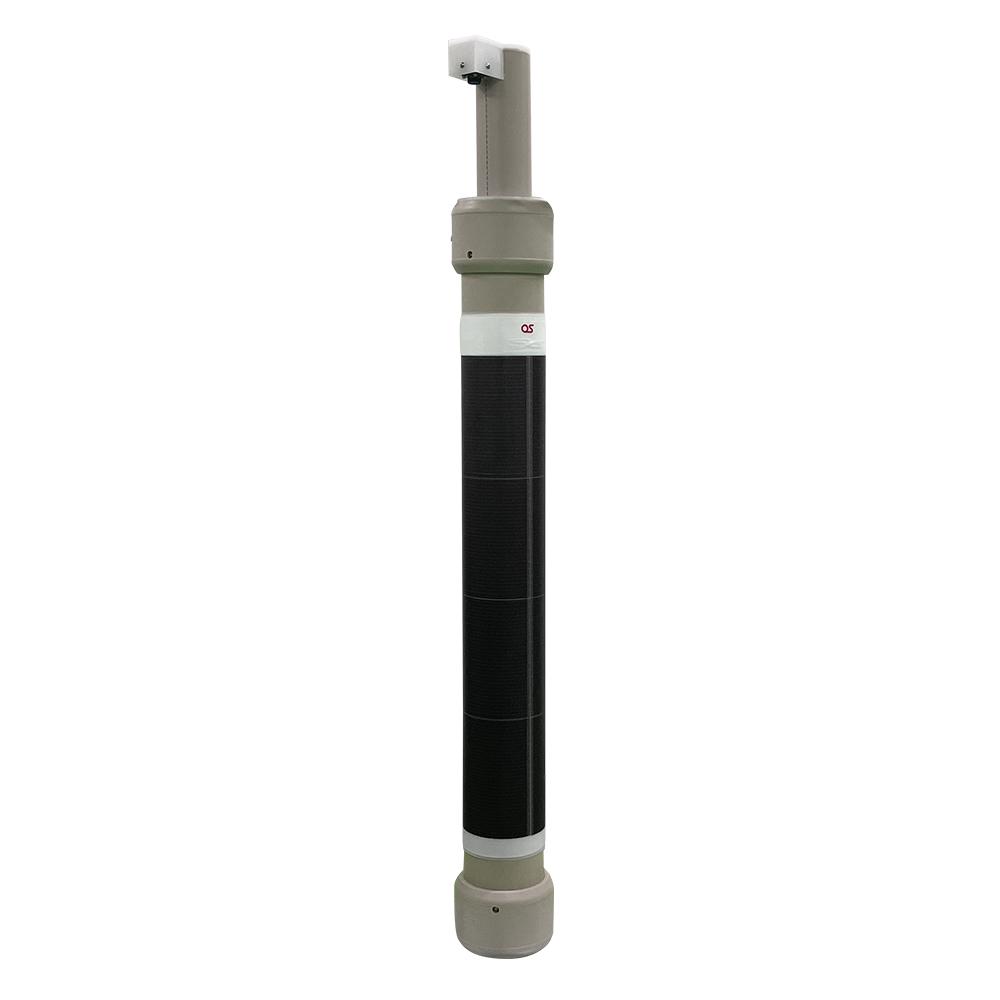

Pole body (T-04A)
A pole body wrapped with a 20W solar sheet.
*Battery is not included.

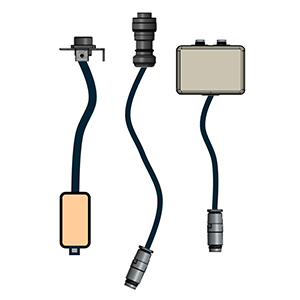

Solar power connection cable set (T-01P)
A cable set necessary for cascading power poles and pole bodies.
