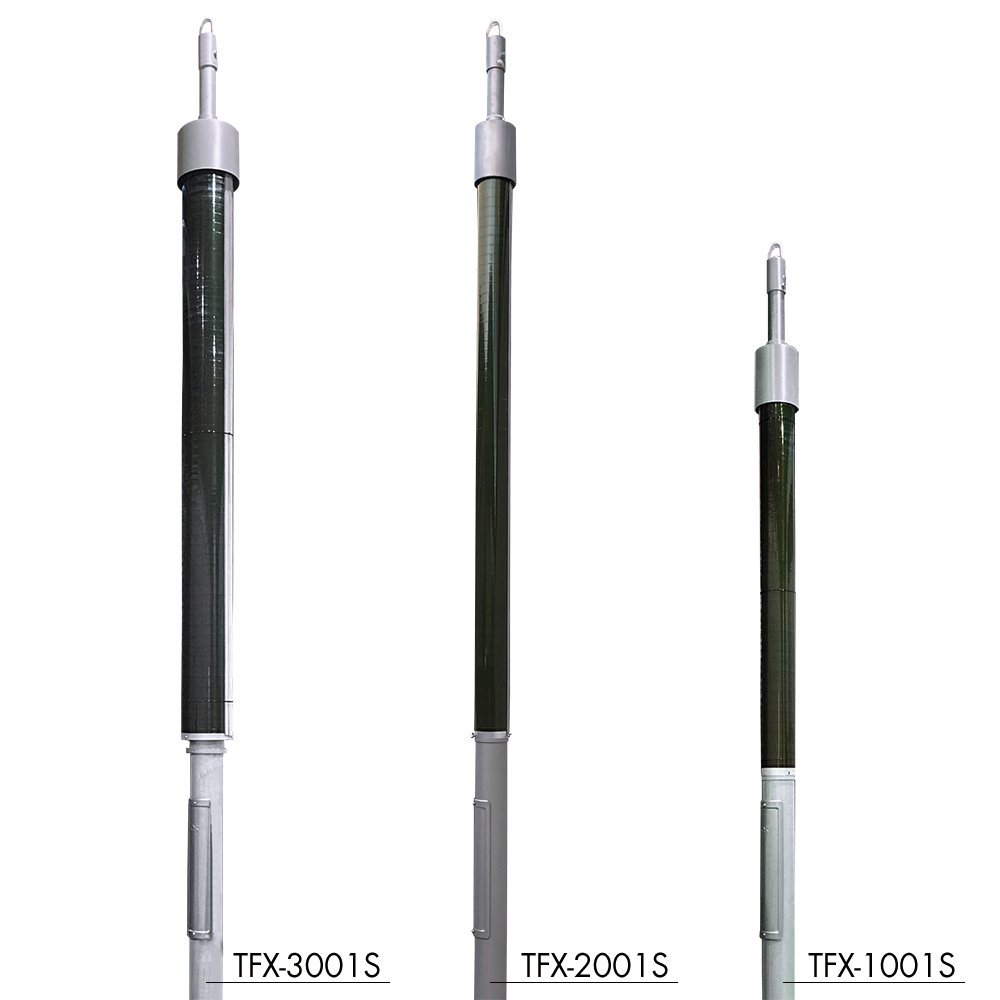

TFX-3001S / TFX-2001S / TFX-1001S
Self-Powered Pole Street Light

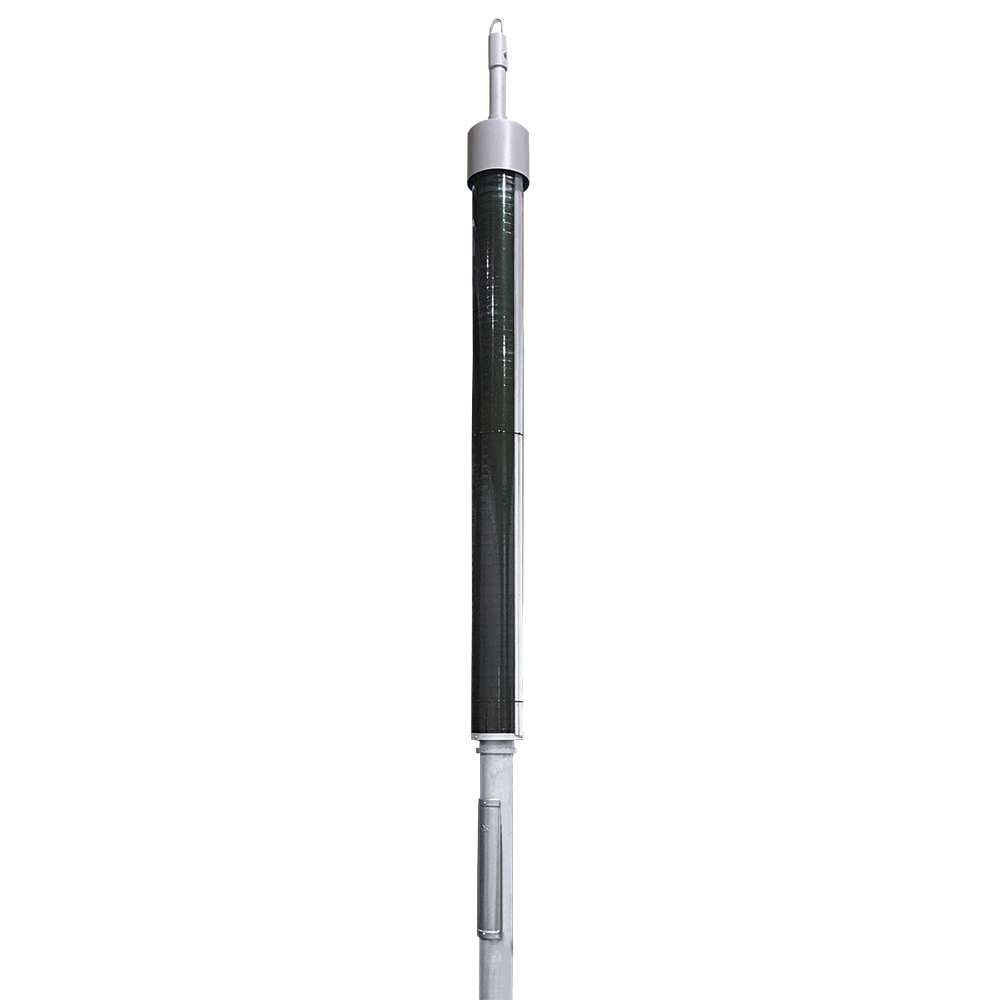

TFX-3001S

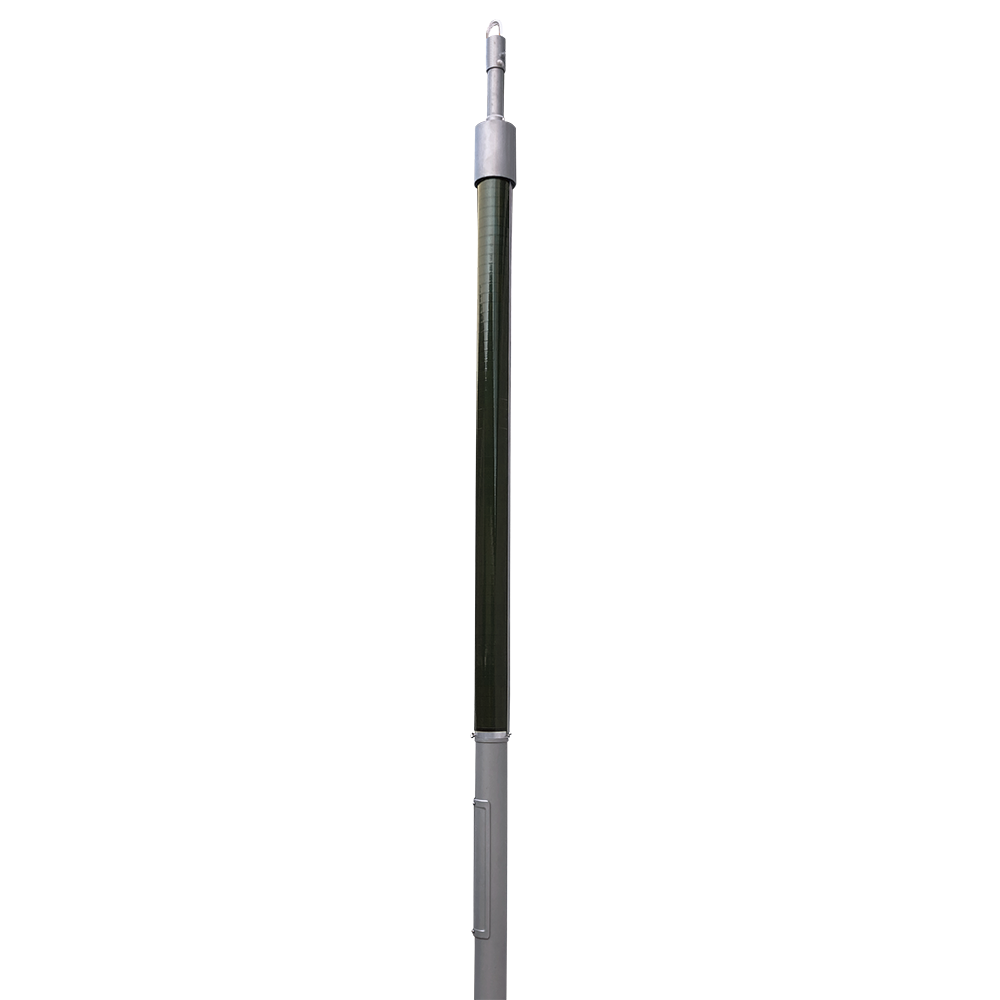

TFX-2001S

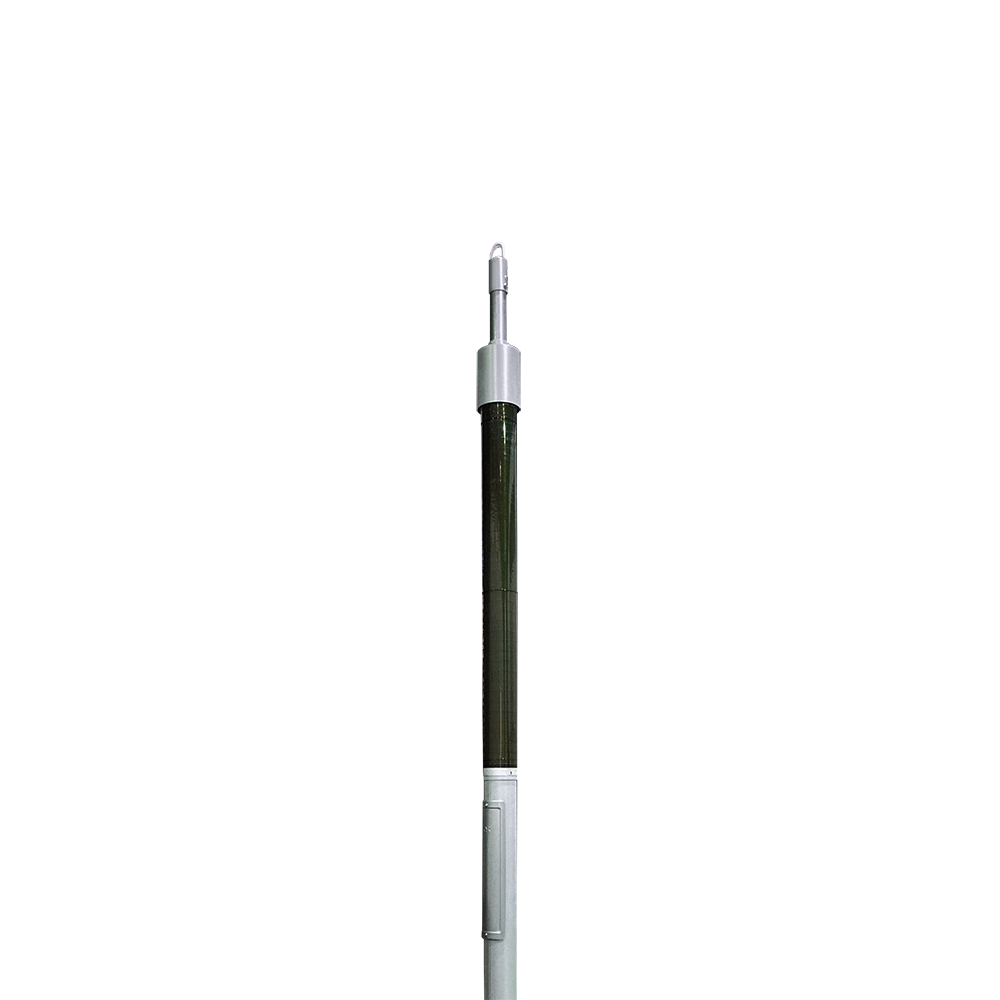

TFX-1001S

No commercial power supply needed! Creates electricity where there is no power.
An off-grid power pole that operates on 100% renewable energy from solar and batteries.

Features

Solar modules are wrapped around the pole to create an integrated solar panel.
The battery pack is housed inside the support pole, with a maximum battery capacity of 1024Wh.
High wind resistance against strong winds (wind resistance up to 60m/s).
Can be developed into a fixed, independent power supply by connecting LED lighting, security cameras, Wi-Fi routers, etc.
*Custom design is required depending on the connected equipment.

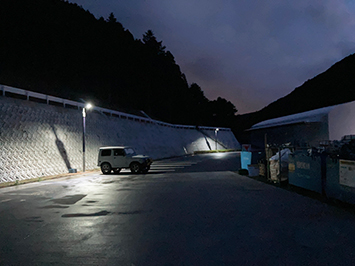

Photo : Example of use with LED lighting

No commercial power supply required! Creates electricity where there is no power.

No commercial power supply needed! An off-grid power pole that generates electricity where there is no power, operating on 100% renewable energy from solar power and batteries.

High efficiency and safety

High efficiency solar sheet (model CG1001) and high safety battery (model IP1001) are used.

Not required grid system

The independent power source without grid system or electrical work.

Bright LED light

Make the place safe with LED light, where are difficult to reach the grid system.

Saving the space

No flat solar panels or battery boxes. This design helps saving space.

High generation stability

The vertically generation surface makes high generation stability and long maintenance-free period not to pile up snow or fall leaves.

High generation stability

The vertically generation surface makes high generation stability and long maintenance-free period not to pile up snow or fall leaves.

The completely independent gereration pole combined with a solar sheet.
Battery units are placed inside the pole. Max. 1056Wh capacities.
The battery (model IP1001) is safe and maintenance free.
The wind resistant is maximum 60 m/s by Japanese standard installation.
Pole will be the independent power source to apply the LED light, security cameras, or Wi-Fi routers. (Custom order)
Three type body color, Silver, Grain pattern, and Earth green.

Quality of Solar Cell and Battery Cell

Solar Cell (Cell model : CG0901)

CG1001 is flexible solar cell with 18.3% of high efficiency.
It can be stuck or wrapped on the curved surfaces due to thin, flexible and light weight.
Its advantages are rustproof, unbreakable, and high durability.

Battery Cell (Cell model : IP1001)

IP1001 is proud of fast charging and high rate discharging, and excellent cycle life.
Environmentally friendly battery with low risk of explosion and ignition.
Our technology makes the battery packs smaller, and it is installed inside the Self-powered pole.

Specifications

Model	GN-050	Product name	Solar sheet charger 5W type
JAN code	4942465024121	Main material	Amorphous silicon
Maximum power generation capacity(W) *1	5.4	Dimension (mm)	L500×W250　t=1 (Protrusions excluded)
Maximum output power (W)*2	4.75	Weight （kg）	Approx. 0.14
Maximum output voltage (V)*2	5.0	Packing size(mm)	L300×D90×H90
Maximum output current (A)*2	0.95	Packing weight（kg）	Approx. 0.17
Operating temperature *3	0℃～+60℃	Storage temperature *4	-20℃～+60℃
Operating humidity *4	85%RH or less (Unless condensation)	Accessories	Storing bag(with strings)×1
Waterproof property *5	IP65 (USB box excluded)	Download drawings	DXF DWG PDF

Maximum power generation capacity is a value of a single solar sheet that dose not go through circuits in the USB box.
The value is not guranteed because the power efficiency is depending on the sunlight conditions.
If it is used in an environment out of the usage conditions, the circuit function in the USB box may deteriorate and the product's original performance may not be obtained.
In an environment out of operating humidity or storage conditions, the product may deteriorate significantly or result in breakdown.
Do not splash water on the USB box because USB box is not waterproof. In case water comes into the USB box, strongly recommend to use it after thoroughly drying.
