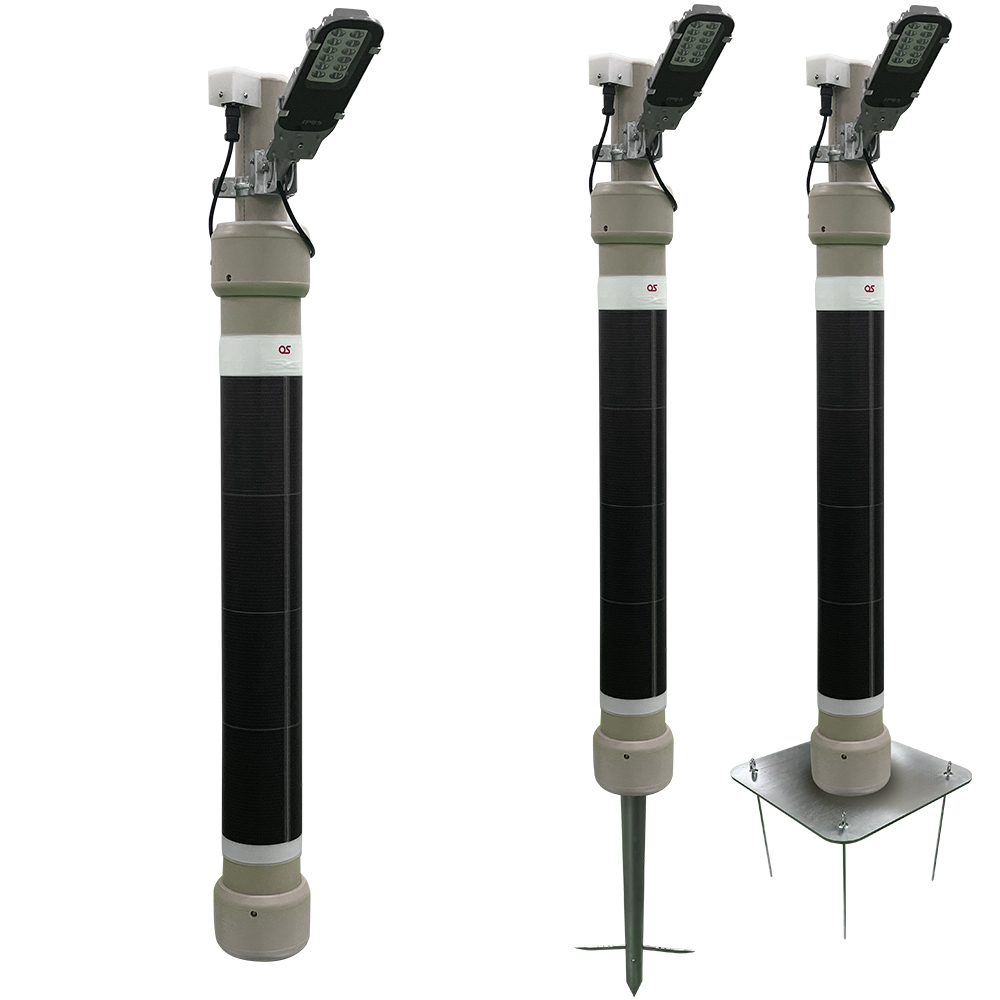

TFL-900S / TFL-910SSelf-Powered Pole Street Light

TFL
Main unit

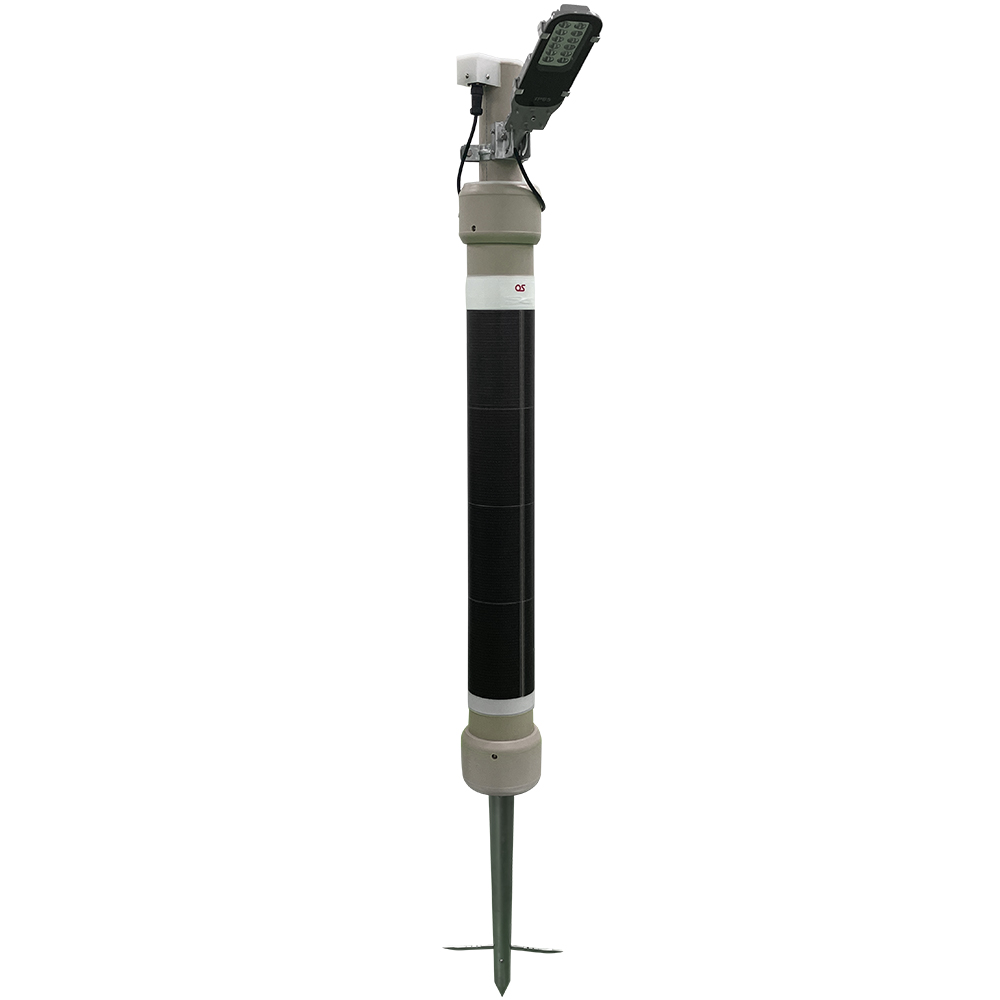

TFL-900S

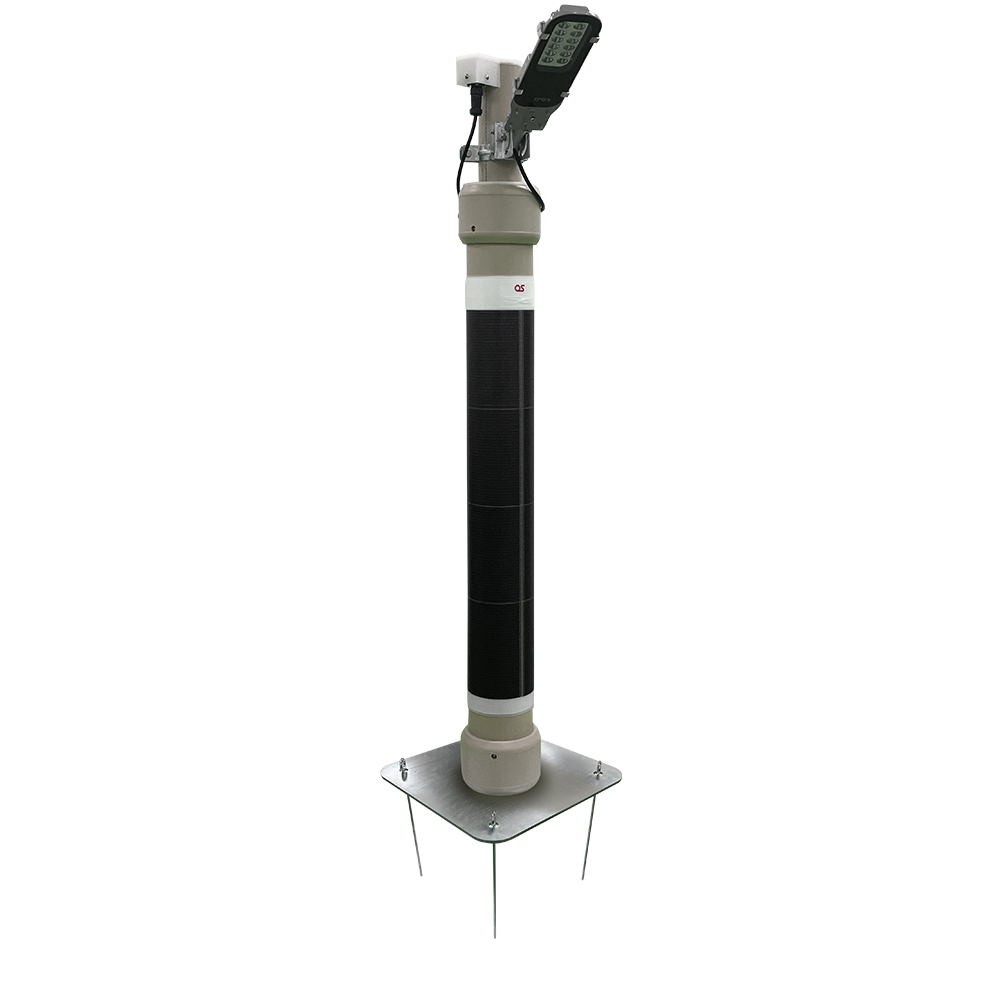

TFL-910S
TFL-900S
TFL-910S

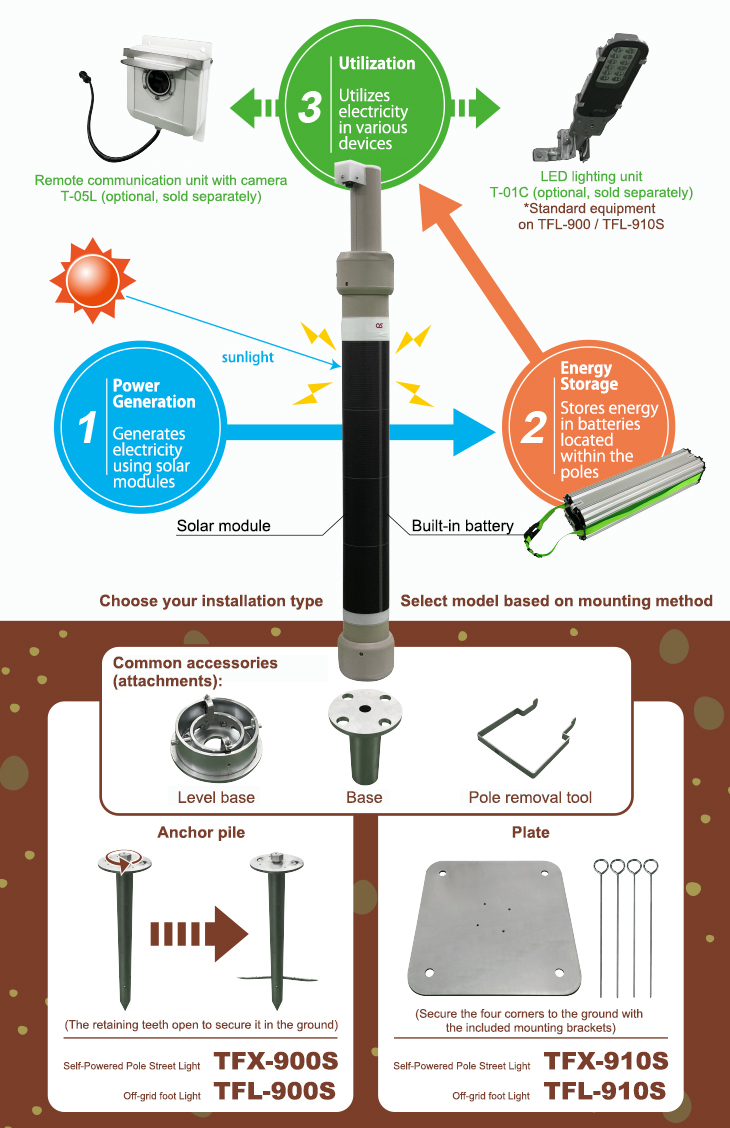

A lightweight, compact, and relocatable off-grid power pole. Equipped with a standard LED lighting unit.
Two installation types are available to suit different site needs. The anchor pile system, designed for increased resistance to pull-out, offers greater safety and flexibility in construction plans. The plate system is convenient for relocation.

Usage Scenarios

As building materials rental at construction sites

As a monitoring system installed at temporary outdoor event venues, etc.

As a remote monitoring system for off-grid areas and unmanned environments

As a footlight to illuminate the ground around pole installations

PAGE TOP

Key points

No commercial power supply needed! A portable off-grid footlight that generates power where there is no electricity, operating on 100% renewable energy from solar power and batteries.

Selectable installation types are also available, including the "anchor pile method" that makes it difficult to pull out.

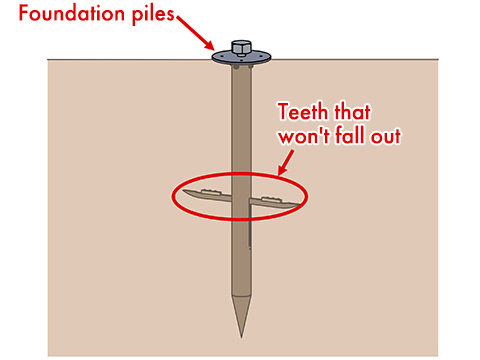

In addition to the easily movable "plate system," we also offer the "anchor pile system," which uses mechanically deployed anchor "anti-loosening teeth" inserted into the ground to provide resistance within the soil.
The "anchor pile system" employs a design that meets our company's safety standards for durability and reliability, based on anchor pull-out tests conducted in both the open and closed states of the anti-loosening teeth.

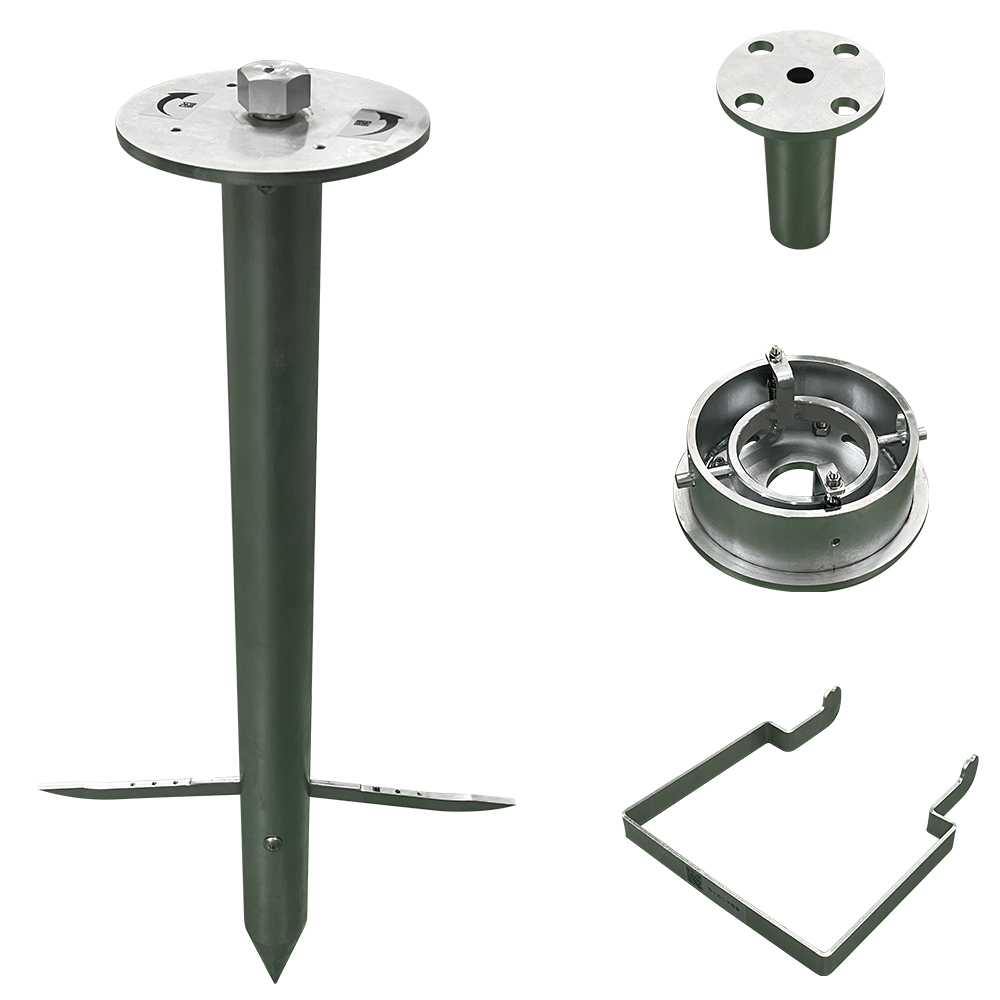

Anchor pile foundation section

Installation type	Anchor Pile	Plate
Model	TFL-900S	TFL-910S
Base shape	Deploy the anchor's retaining teeth and secure it in the ground.	Insert the included mounting brackets (pegs) into the ground at the four corners of the plate to secure it.
Pole fixing method

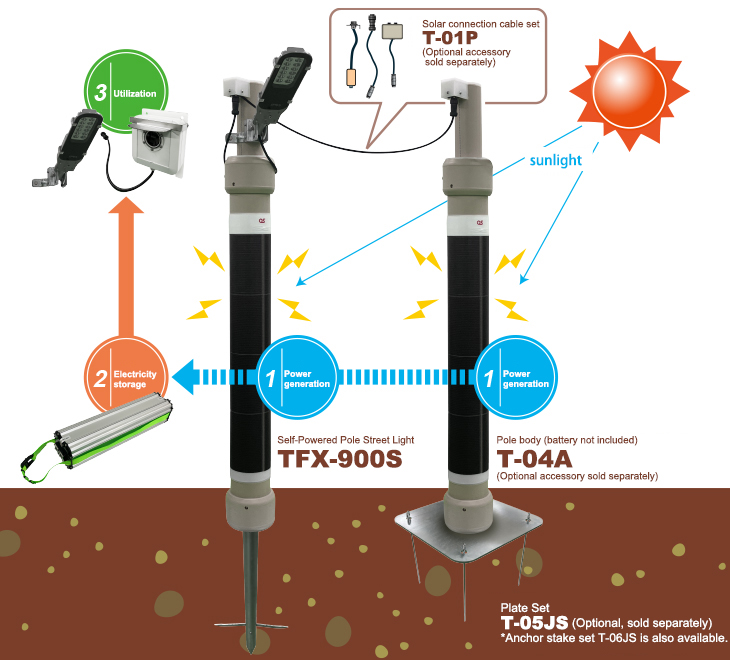

Cascade connection is possible, and power generation can be increased by adding more pole units.

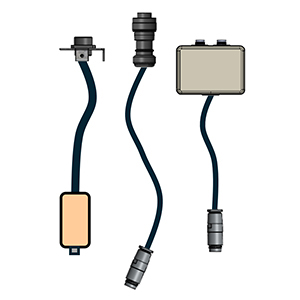

By combining the cascade options "Pole Body T-04A," "Plate Set T-05JS or Anchor Stake Set T-06JS," and "Solar Connection Cable Set T-01P," you can cascade together the equivalent of one solar sheet (20W), increasing power generation.

*The pole body does not have a built-in battery.

PAGE TOP

Features

Allows the use of communication cameras and standard-equipped LED lighting in locations where a power source is unavailable.
Two installation types are available depending on the mounting method: "anchor pile method" and "plate method."
No foundation work is required. Lightweight and compact design allows for easy relocation. The underground fixed installation portion is also available as an option (T-06JS, T-05JS).
A solar sheet is wrapped around the pole body, achieving an integrated solar panel.
Even in prolonged periods of no sunlight, LED lighting can be maintained for approximately 5 days at night.

Monitor operating status with a remote communication unit with camera (optional).

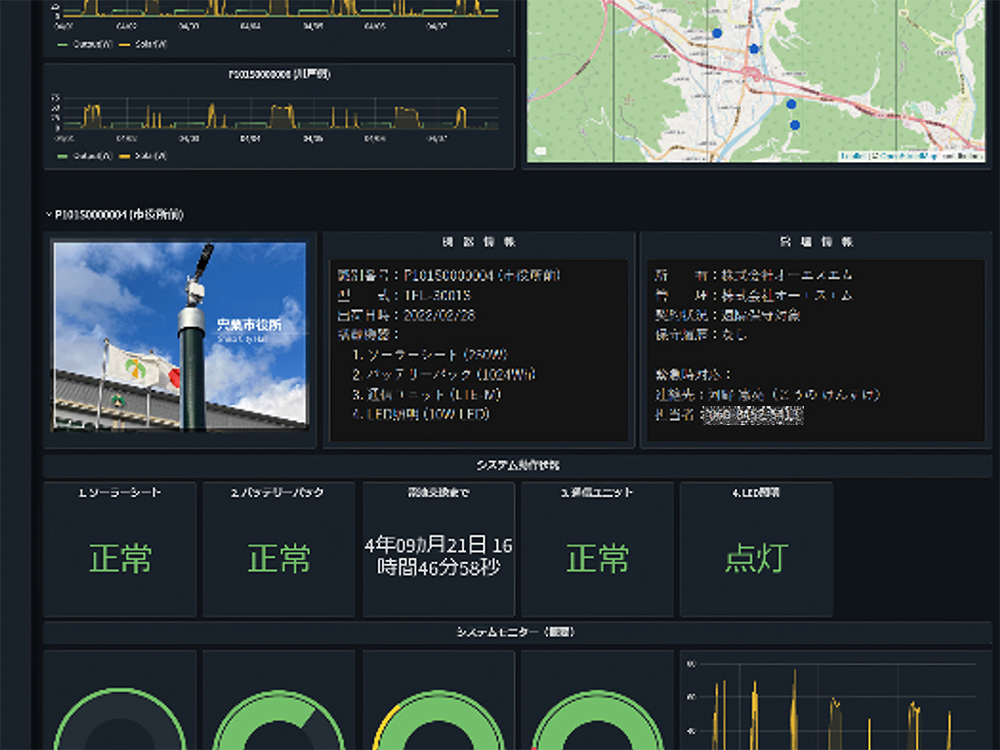

You can monitor solar power generation status, energy storage level, and the operation status of lights and sensors from the management screen.
Even with multiple units installed, you can check the status at a glance, and you can also export the operating status as a CSV file. Maintenance and management can be easily performed remotely.

T-05L

* The management functions shown in the upper right diagram are just an example. Actual functions will vary depending on your application. Please contact us for details.
* Additional communication fees are required for image communication and monitoring of the operating status of the communication camera.

PAGE TOP

Quality of Solar Cell and Battery Cell

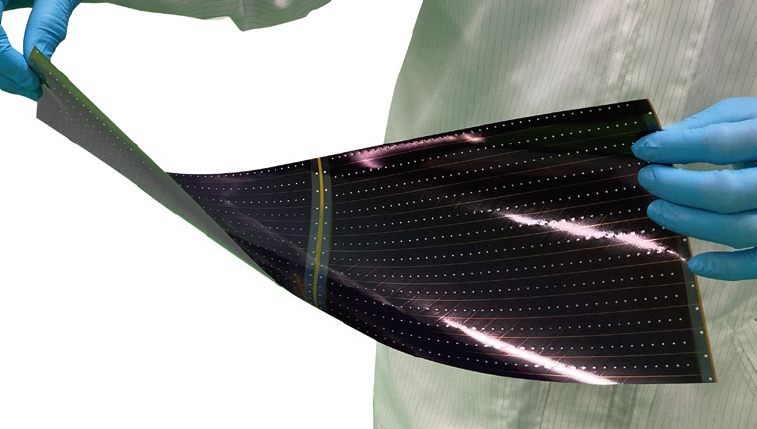

Solar Cell (Cell model : SA1001)

This solar sheet offers flexible design, allowing you to freely set the voltage and current values according to your needs.
Its light and thin design allows it to be attached to curved surfaces.
It boasts high heat generation efficiency and stable power generation even in summer and high-temperature regions.

Battery Cell (Cell model : IP1001)

IP1001 is proud of fast charging and high rate discharging, and excellent cycle life.
Environmentally friendly battery with low risk of explosion and ignition.
Our technology makes the battery packs smaller, and it is installed inside the pole of Off-grid Street light.

PAGE TOP

Off-grid Street Light Specifications

Type		TFL-900S	TFL-910S
Product appearance
Body	Material	Resin / Steel

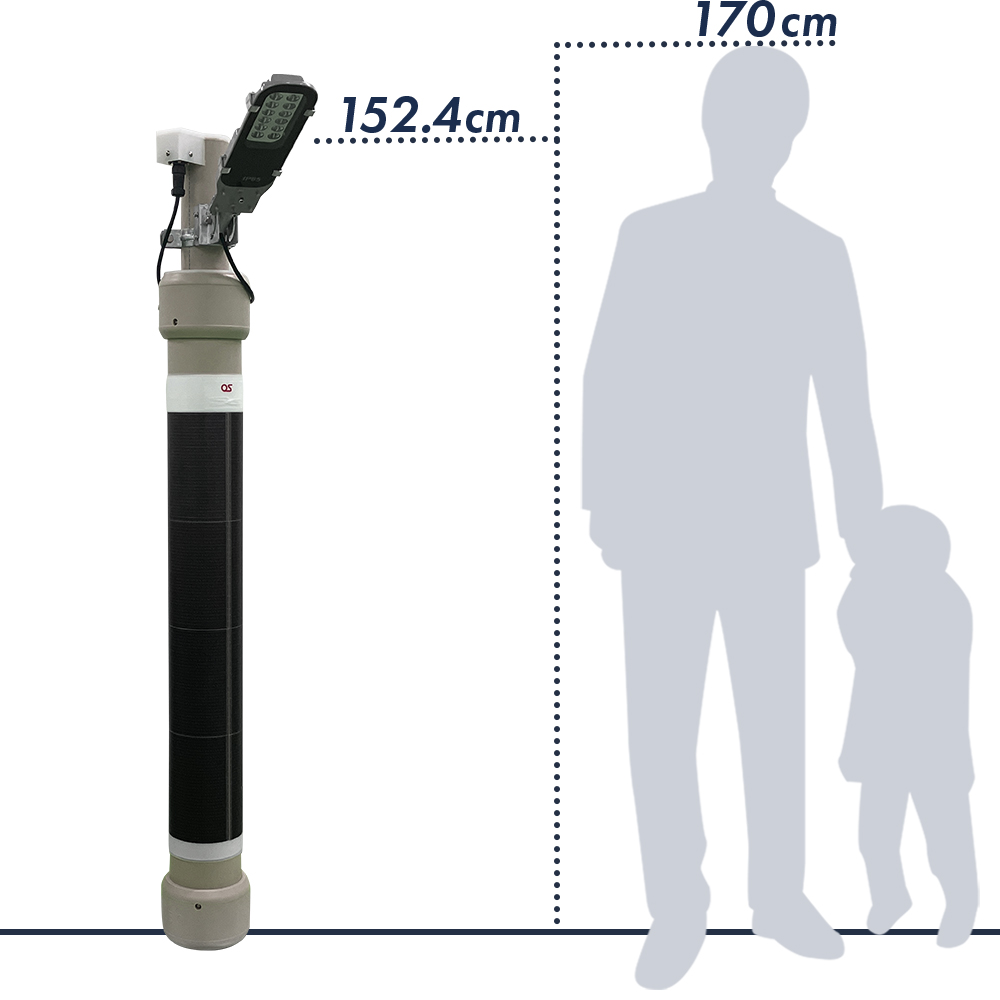

	Dimensions (mm)	φ172×H1524(Excluding the part that is driven in)	W400×D400×H1530
	Weight (kg)	13.1	16.6
LED	Power consumption	4W *1
	Control capability for drought	Up to 40 hours (8 hours x 5 days) *2
	Weight (kg)	1.8
	Water proof properties	IP65
Solar	Material	SA1001
	Power generation capacity	20W *1
	Water proof properties	IP65 (Solar sheet only)
Control / Battery	LED control method	PWM
	Control voltage	DC12V
	Operation temperature	-10℃～+45℃
	Dimensions (mm)	L433×H106×D106 (Excluding protrusions)
	Weight (kg)	4.9
	Material	IP1001
	Capacity	256Wh
	Voltage	DC12V
	Water proof properties	IP65

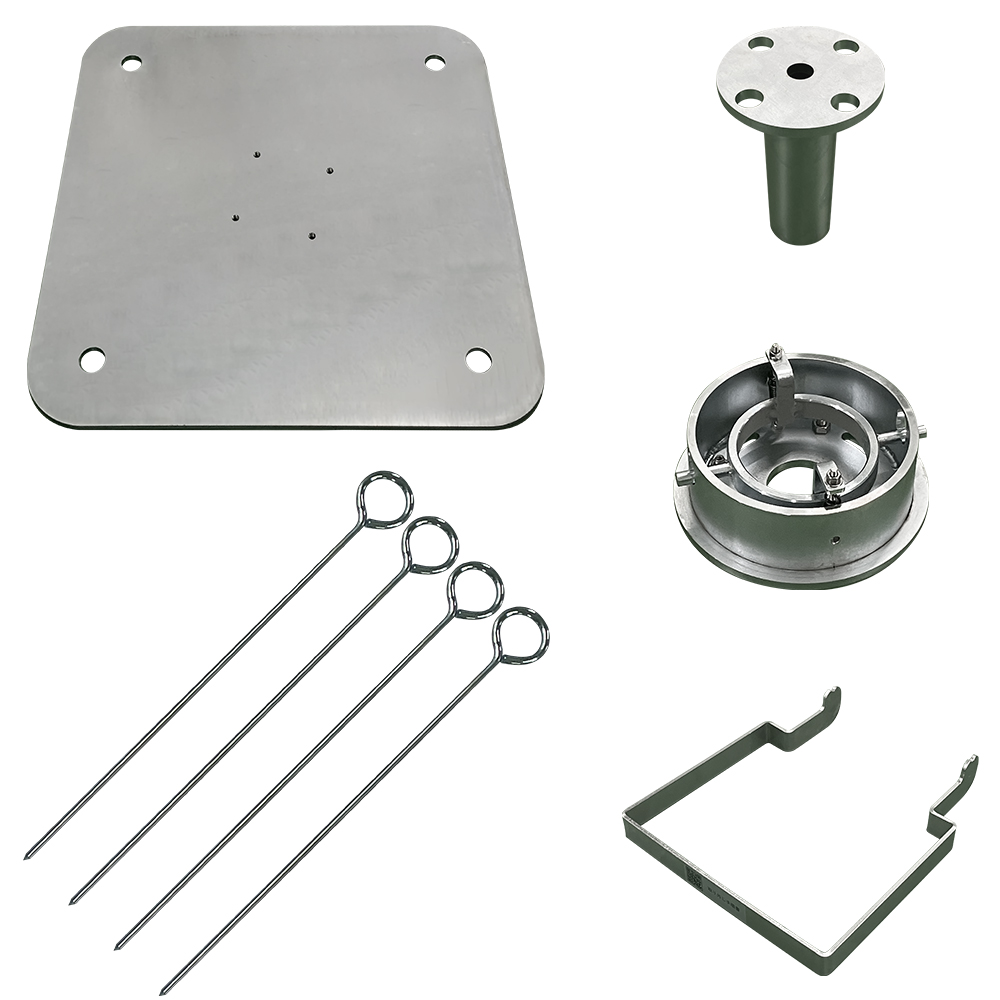

Accessories		T-06JS Anchor pile set *Includes survey stakes and positioning jigs for ground investigation.	T-05JS Plate set

* Specifications and design are subject to change without notice for improvement.

Output is measured at approximately 10% dimming.
This value is not guaranteed as it varies depending on the storage capacity.
Power generation efficiency varies depending on sunlight conditions, therefore this value is not guaranteed.
