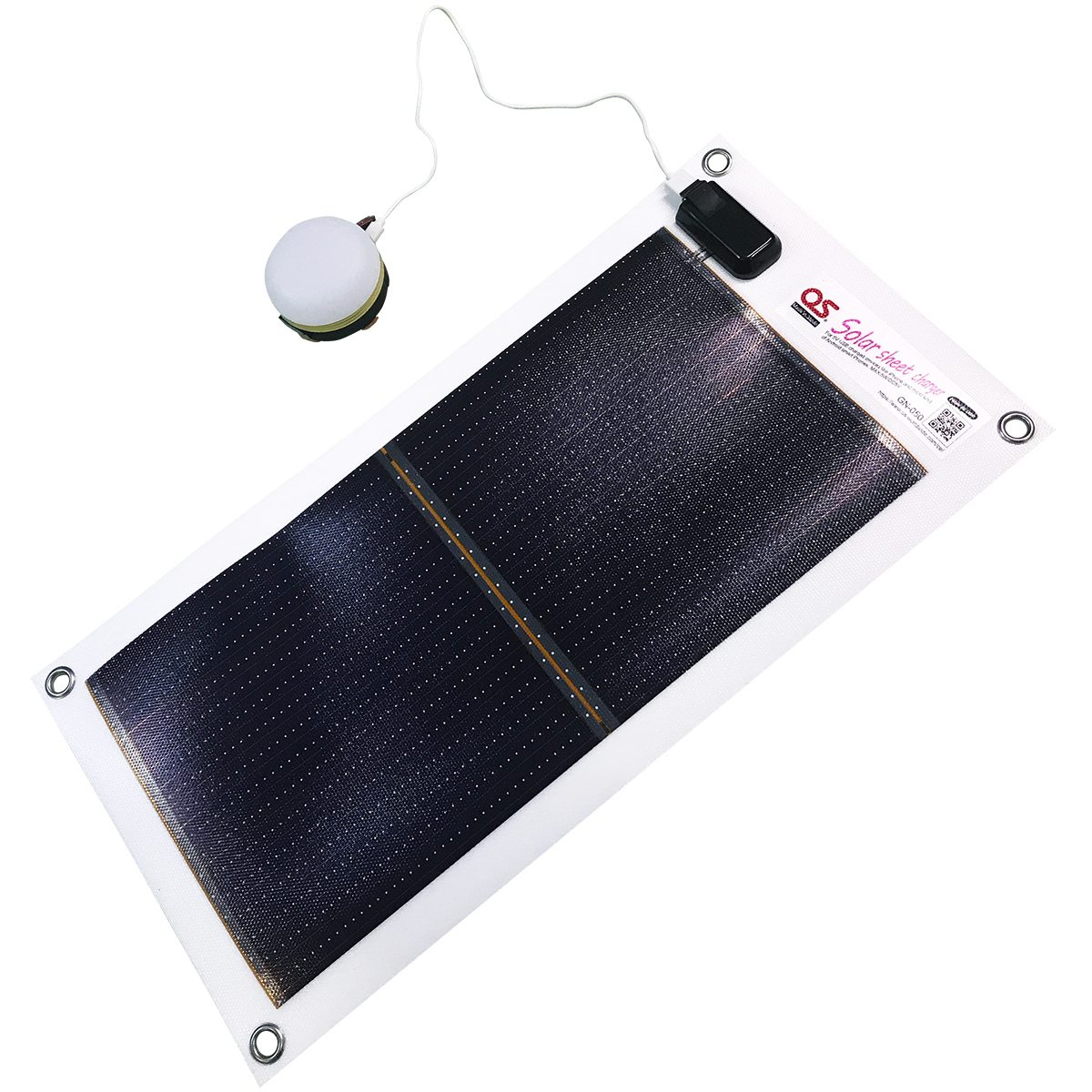

GSB-0500-DCSolar sheet charger set

Solar sheet charger set that generates electricity using solar energy and stores it in a rechargeable lantern (battery).

Characteristics

It can generate electricity using sunlight and charge a mobile battery.
It can directly charge devices such as smartphones and batteries from the solar sheet charger.
It is lightweight (solar sheet: approx. 140g / battery: approx. 100g) and easy to carry.
The combination of a rollable solar sheet and a palm-sized rechargeable LED lantern is lightweight, compact, and conveniently portable (storage bag included as standard).
It has high waterproof performance (solar sheet charger: IP65, rechargeable LED lantern: IP66).

Rolled-up Solar sheet charger (Left)
and stored into an attached storing bag(Right).

A fan with USB power supply.

LED light is available as long as there's the sunlight.

Solar sheet charger generates the power by sunlight.
Charge directly your electric devices from Solar sheet charger through a USB cable.
Resistant to bending and impact, Solar sheet charger can be rolled up and stored.
The eyelets on it make you easy to turn the photosensitive surface towards the sunlight to hook a roof or tree branches.
Made in Japan

Attention

The current value of output changes depending on the sunshine condition. When the current decreases, an attention would appear on the screen of smartphone. At that time, pull out the cable once and reconnect it in a location with strong sunshine. In case the output is uncertain, please charge the attached LED charger, or a portable battery charger.
If there is ultraviolet (UV) cut glass, the power generation capacity of the sheet may be lowered.
When you operate the smartphone while generating and charging with the solar sheet charger, charging may not work properly.
Please refrain from operating your smartphone while charging.
Charging may not be possible while the smartphone application is launched.
Close all the application and start charging.
Even if it fulfills above conditions, we do not guarantee that all smartphones and mobile batteries will be charged properly.

1800mAh/DC3.7V battery.
Can be attached to various locations using the hook and magnet on the back.
Rechargeable LED lantern with 3 brightness levels (HIGH, LOW, flashing) and up to 30 hours of illumination.
Compact, palm-sized (approx. 6.5cm diameter, 5cm height).

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

Solar sheet charger set
Model		GSB-0500-DC
JAN code		4942465024312
Set		SOLAR SHEET CHARGER Rechargeable LED lantern
SOLAR SHEET CHARGER	Model	GN-050
	Main material	Amorphous silicon
	Maximum power generation capacity(W) *1	5.4
	Maximum output power (W) *2	4.75
	Maximum output voltage (V) *2	5.0
	Dimension (mm)	L500×W250　t=1 (Protrusions excluded)
	Weight （kg）	Approx. 0.14
	Operating temperature *3	0℃～+60℃
	Operating humidity *4	85%RH or less (Unless condensation)
	Storage temperature *4	-20℃～+60℃
	Waterproof property *5	IP65 (USB box excluded)
Rechargeable LED lantern	Model	GB-06L-DC01
	Main material	Resin
	Battery type	Lithium-ion battery
	battery capacity	1800mAh / DC3.7V
	Nominal output	Maximum 1.0A / DC5V
	Charging time *1	Compact solar sheet (9.5W): Approx 4h USB (DC5V/1A): Approx 4h
	Usable time *6	LED lighting (High): Approx 7h LED lighting (Low): Approx 30h LED lighting (Flashing): Approx 28h
	Dimension (mm)	φ65ｘH50
	Weight (kg)	Approx. 0.1
	Operating temperature *4	0℃～＋40℃
	Waterproof property *7	IP66
Accessories		Includes: Storage bag (with drawstring)×1 USB cable×1 (data cannot be sent or received)

Maximum power generation capacity is the value of the solar sheet alone, without going through the circuit inside the USB box.
Power generation capacity varies depending on sunlight conditions, so the above value is not guaranteed.
If used in an environment outside of the specified usage conditions, the circuit function inside the USB box may deteriorate, and the product may not produce its intended output.
In environments exceeding the usage humidity and storage conditions, the unit may deteriorate significantly and may malfunction.
The USB box is not waterproof. Please be especially careful not to get moisture on the USB connector.
If moisture enters the box, please dry it thoroughly before use.
This is a reference value and not a guaranteed value.
Waterproof performance is when the waterproof cap is closed.
