GN-050B3Solar sheet charger set

Charge your electric devices everywhere you cannot find the power source!
Light and hand-rolled Solar sheet charger.
To be able to charge your smartphone directly from Solar sheet charger.
You can charge your electric device to obtain the power by a USB cable.

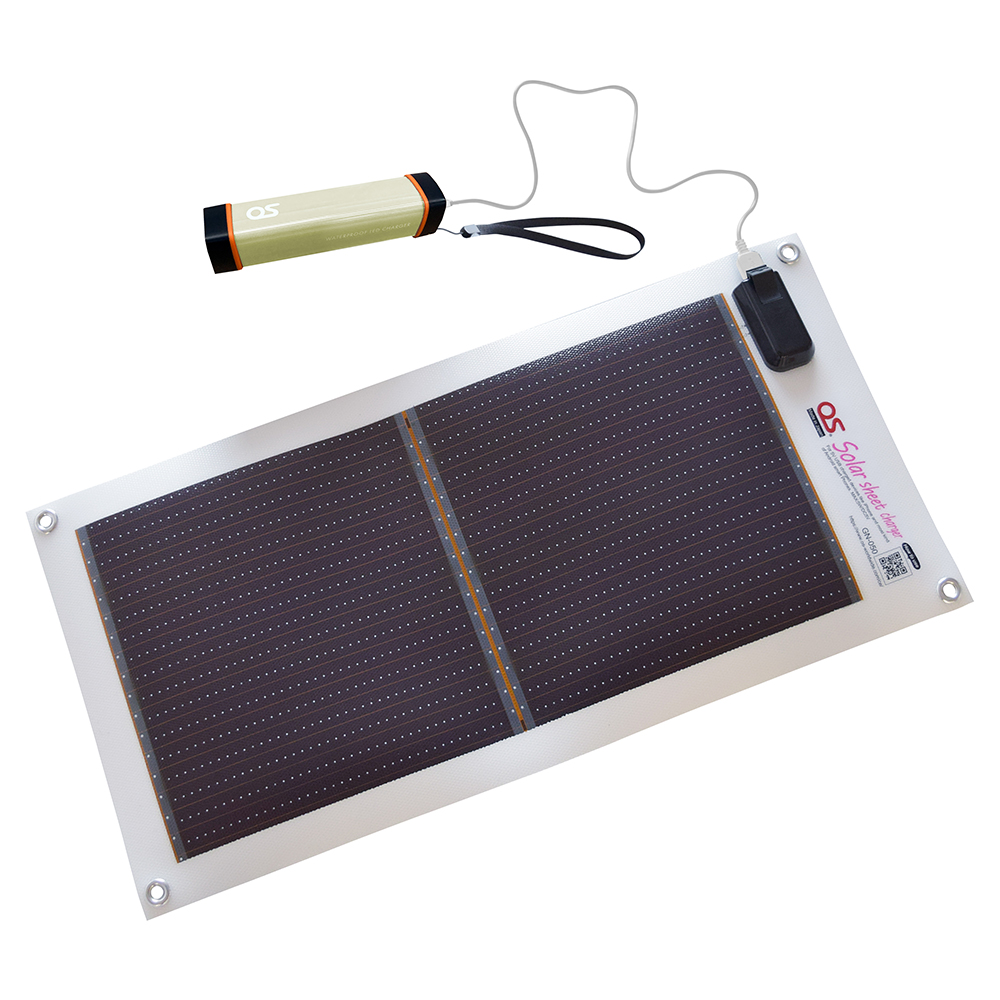

Solar sheet charger set for "power generation" + "charging"

The Solar Sheet Charger Set is a set product consisting of a solar sheet (GN-050) that can generate electricity anywhere using sunlight, and a waterproof LED charger (GB-09L-DC11).

By storing the electricity generated by the solar sheet charger using sunlight in the waterproof LED charger beforehand, it can be used as a power source for smartphones, even at night or in rainy weather.

The waterproof LED charger is an LED light that meets the IP65 dustproof and waterproof standard. With a wide range of dimming options, it is useful not only as a life tool during emergencies and disasters, but also as a portable power source for outdoor activities such as camping, at the beach or in the mountains, and as an emergency signal, making it useful in a variety of situations from everyday use to emergencies.

*Waterproof performance is when the waterproof cap is closed.

PAGE TOP

Scenarios

During disasters, power outages, and emergencies

For outdoor activities and travel

Perfect for gifts and souvenirs

PAGE TOP

Characteristics

Features of the Mobile Solar Sheet (GN-050)

Rolled-up Solar sheet charger (Left)
and stored into an attached storing bag(Right).
A fan with USB power supply.
LED light is available as long as there's the sunlight.
  • Solar sheet charger generates the power by sunlight.
  • Charge directly your electric devices from Solar sheet charger through a USB cable.
  • Resistant to bending and impact, Solar sheet charger can be rolled up and stored.
  • The eyelets on it make you easy to turn the photosensitive surface towards the sunlight to hook a roof or tree branches.
    Everywhere charger　SOLAR SHEET GN-050
  • Made in Japan
Attention
  • The current value of output changes depending on the sunshine condition. When the current decreases, an attention would appear on the screen of smartphone. At that time, pull out the cable once and reconnect it in a location with strong sunshine. In case the output is uncertain, please charge the attached LED charger, or a portable battery charger.
  • If there is ultraviolet (UV) cut glass, the power generation capacity of the sheet may be lowered.
  • When you operate the smartphone while generating and charging with the solar sheet charger, charging may not work properly.
  • Please refrain from operating your smartphone while charging.
  • Charging may not be possible while the smartphone application is launched.
  • Close all the application and start charging.
  • Even if it fulfills above conditions, we do not guarantee that all smartphones and mobile batteries will be charged properly.

Features of the Waterproof LED Charger (GB-09L-DC11)

  • A portable power source for emergencies, disasters, emergency power supply in the mountains and at sea, and for practicing an eco-friendly lifestyle.
  • A fully waterproof LED charger (battery) that meets the IP65 dustproof and waterproof standard.
    *Waterproof performance is measured with the waterproof cap closed.
  • The LED light features two adjustable brightness levels, red/blue flashing lights, an insect-repellent LED, and a searchlight (white LED).
    *The insect-repellent LED does not repel all insects. It is primarily effective against mosquitoes.
  • LED illumination time is Approx 80 hours (at low brightness).
  • USB output provides a maximum of 1.0A to power external devices.
    *Charging this unit provides a maximum of 1.2A from the charging port.
  • Complies with PSE (Electrical Appliances and Materials Safety Act).

*Please inquire with each country and airline regarding carrying batteries on board aircraft.

PAGE TOP

Specifications

Solar sheet charger set
Model GN-050B3
JAN code 4942465030412
Set SOLAR SHEET CHARGER
Waterproof LED charger
SOLAR SHEET CHARGER Model
GN-050
Main material Amorphous silicon
Maximum power generation capacity(W) *1 5.4
Maximum output power (W) *2 4.75
Maximum output voltage (V) *2 5.0
Dimension (mm) L500×W250　t=1
(Protrusions excluded)
Weight （kg） Approx. 0.14
Operating temperature *3 0℃～+60℃
Operating humidity *4 85%RH or less (Unless condensation)
Storage temperature *4 -20℃～+60℃
Waterproof property *5 IP65 (USB box excluded)
Waterproof LED charger Model
GB-09L-DC11
color Green
Main material Resin
Battery type Lithium-ion battery
battery capacity 2500mAh / DC3.7V
Nominal output Maximum 1.0A / DC5V
Charging time *1 Compact solar sheet (GN*050): Approx 3h *2
USB (DC5V/1.2A): Approx 3h
Usable time *6 White LED (Low): Approx 80h
White LED (High): Approx 5h
Red/Blue LED (Flashing): Approx 40h
White LED Searchlight: 5h
Insect Repellent LED: 5h
Dimension (mm) W150×D37×H37
Weight (kg) Approx. 0.17
Operating temperature *4 0℃～＋40℃
Waterproof property *7 IP65
Accessories Includes: Storage bag (with drawstring)×1
strap×1
USB cable×1 (data cannot be sent or received)
  • Maximum power generation capacity is the value of the solar sheet alone, without going through the circuit inside the USB box.
  • Power generation capacity varies depending on sunlight conditions, so the above value is not guaranteed.
  • If used in an environment outside of the specified usage conditions, the circuit function inside the USB box may deteriorate, and the product may not produce its intended output.
  • In environments exceeding the usage humidity and storage conditions, the unit may deteriorate significantly and may malfunction.
  • The USB box is not waterproof. Please be especially careful not to get moisture on the USB connector.
    If moisture enters the box, please dry it thoroughly before use.
  • This is a reference value and not a guaranteed value.
  • Waterproof performance is when the waterproof cap is closed.
