GA-7226F01-4Mobile solar sheet

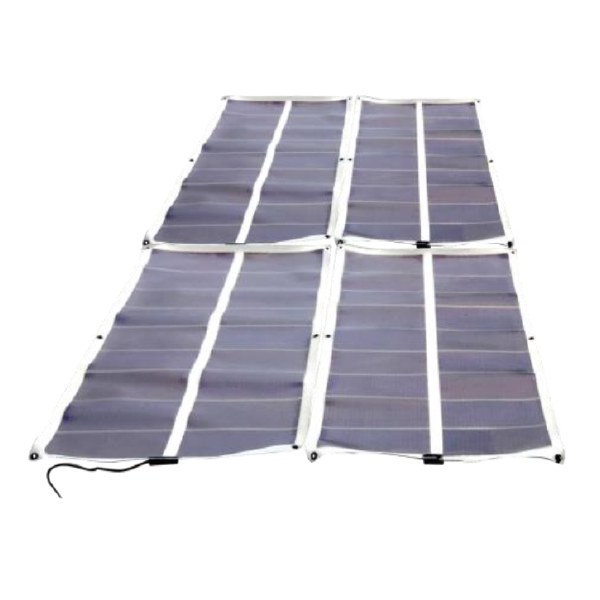

A rollable, portable solar sheet that can also be used as a charging power source. 72W x 4-row sheet, 288W output.

Characteristics

This 288W solar sheet provides peace of mind by allowing charging from sunlight, even in emergencies or disasters.
Weighing only 4.4kg, this lightweight, flexible, and rollable solar sheet is easy to store and convenient to carry.
Using domestically produced cells, this solar sheet guarantees stable power generation.

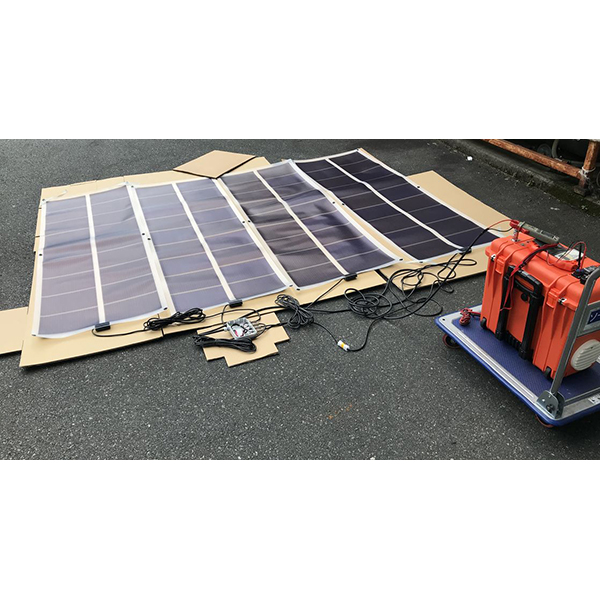

The solar sheet can be connected to a connecting box to charge a portable power source.
The portable power source and solar set can be carried by one person.
When rolled up for storage, it can be compactly stored in the included storage bag.

Storage bag

Product name	Mobile solar sheet
Model	GA-7226F01-4
JAN code	4942465025685
Product Configuration	72W solar sheets×4 Connecting unit×1
Packing size(mm)	L850×D250×H220
Packing weight（kg）	Approx 10
Accessories	Storage bag×1 Storage pouch×1

Product name	72W solar sheets×4
Main material	SA1001、ETFE
Maximum output (Pmax) (W) *1	72W (per solar sheet), 288W (total of 4 sheets)
Maximum power operating voltage (Vpm) (V) *1	26.5V (1 solar sheet, total of 4 sheets)
Maximum output operating current (Ipm) (A) *1	2.7A (per solar sheet), 10.8A (total for 4 sheets)
Open-circuit voltage (Voc) (V) *1	37
Output cable	L=5000mm×4 pieces (0.75 sq×2c, black)
Dimension (mm)	L1938×W665×t1(One solar sheet, excluding protrusions)
Weight (kg)	Approx 1.7(per solar sheet), approx 6.8(total of 4 sheets)
Storage temperature *2	-20℃～+40℃
Waterproof property *3	IP65

Power generation efficiency varies depending on sunlight conditions, therefore the above figures are not guaranteed.
The unit may deteriorate significantly and malfunction if used or stored in environments exceeding the specified conditions.
Waterproofing is guaranteed only when the connector is securely connected.
