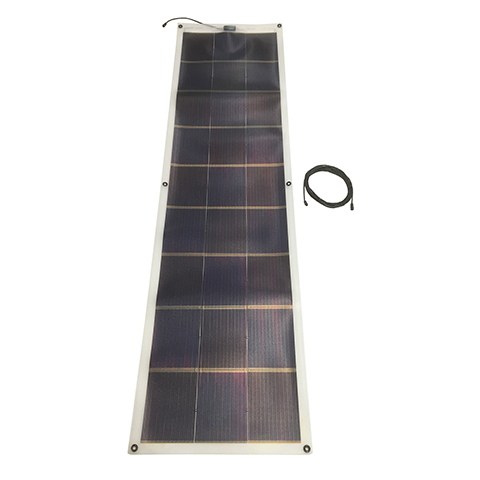

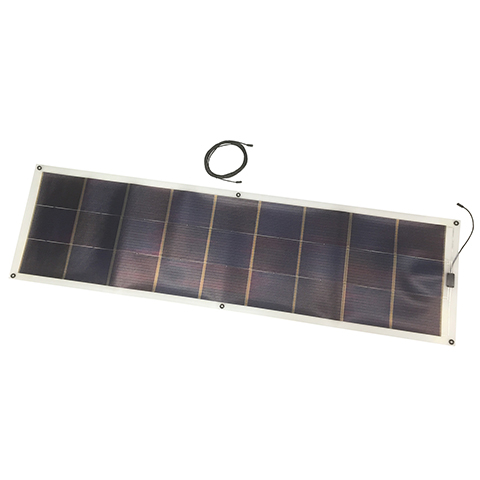

GA-5413Compact solar sheet

A rollable, portable solar sheet compatible with lithium/lead-acid batteries. 54W solar panel.

Characteristics

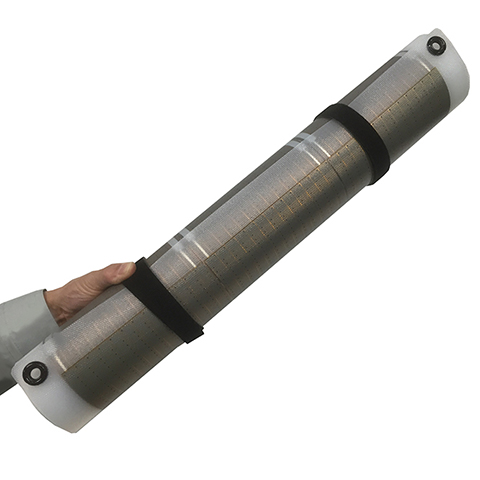

Thin and easy to roll up
Lightweight and easy to carry

This 54W solar sheet provides peace of mind, allowing you to charge your devices from sunlight during outdoor activities or emergencies.
Weighing only 1.1kg, this lightweight, flexible, and rollable amorphous solar sheet is easy to store and convenient to carry.
Using domestically produced cells, this solar sheet guarantees stable power generation.
It has six grommets, allowing you to attach it to tents, balconies, etc. with a carabiner. (Carabiner not included)

Product name	Compact solar sheet
Model	GA-5413	GA-5413B01	GA-5413C01	GA-5413D01
Connection terminals
JAN code	-	4942465024206	4942465023582	4942465023599
Main material	Amorphous silicon, ETFE
Maximum output (Pmax) (W) *1	54
Maximum power operating voltage (Vpm) (V) *1	13.3
Maximum output operating current (Ipm) (A) *1	4.1
Open-circuit voltage (Voc) (V) *1	19.6
Dimension (mm)	L1950×W532×t1 (Protrusions excluded)
Weight (kg)	Approx. 1.1 (solar sheet) Approx. 0.2 (connecting cable)
Packing size(mm)	L560×D195×H185
Packing weight（kg）	Approx 2.1
Storage temperature *2	－20℃～＋60℃
Operating humidity *2	85%RH or less (Unless condensation)
Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
Accessories	Connection cable 5000mm Storage bag (with drawstring)×1	Connection cable (with DC plug inner diameter Φ2.1, L=5000mm)×1 Storage bag (with drawstring)×1	Connection cable (with DC plug inner diameter Φ2.5, L=5000mm)×1 Storage bag (with drawstring)×1	Connection cable (with waterproof plug, L=5000mm)×1 Storage bag (with drawstring)×1

Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
Do not use the battery or solar sheet when wet. Also, be sure to wipe off any moisture with a cloth or allow it to dry completely before use.
The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct water jets from any direction.
