GA-0404Compact solar sheet

Charge your battery with solar power for camping, emergencies, or any situation where you need it most.

Characteristics

This solar-powered sheet provides peace of mind during outdoor activities or emergencies, allowing you to charge your devices using sunlight.
Weighing only 100g, this lightweight and thin solar sheet can be easily rolled up for convenient storage and portability.
Reliable Japanese-made product.
It features six eyelets, allowing you to attach it to a backpack or other items with a carabiner. (Carabiner not included)

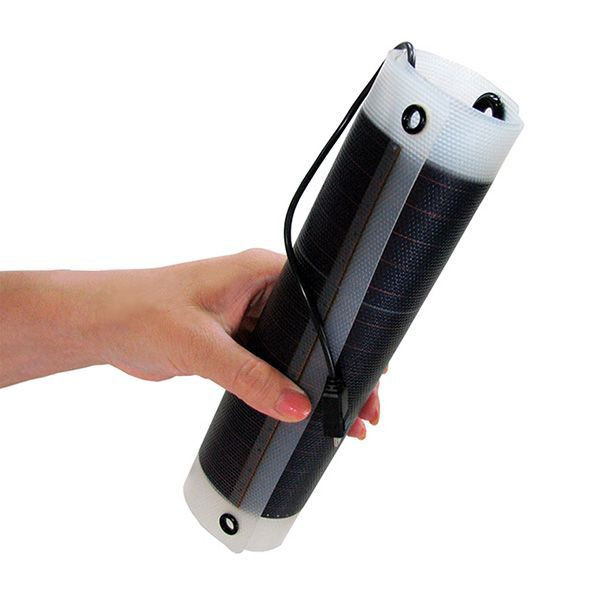

Thin and easy to roll

Attaches to a backpack
(Photo is of a prototype)

Micro USB terminal

Product name	Compact solar sheet
Model	GA-0404A01
Main material	Amorphous silicon, ETFE
Nominal output *1	Maximum 4.2W/DC5V (Micro USB)
Dimension (mm)	L454×W228×t1 (Protrusions excluded)
Weight (kg)	Approx. 0.12
Storage temperature *2	－20℃～＋60℃
Operating humidity *2	85%RH or less (Unless condensation)
Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
Approximate usable battery life	1) Must be rechargeable with DC 5V 2) The input terminal from the charger (solar sheet) must be connectable via a micro USB terminal 3) Must have a safety circuit to prevent overcharging Batteries have various characteristics depending on the manufacturer, so even if the above conditions are met, we cannot guarantee that all batteries will be able to be charged. A 4.2W solar sheet can provide approximately 0.95A on a sunny day. You can estimate the approximate full charging time by working backward from the battery's capacity, but this is only an estimate due to the individual characteristics and loss rate of each battery.

Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
Do not use the unit when wet. Always wipe off any moisture with a cloth or allow the unit to dry completely before use.
The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the unit and is unaffected by direct water jets from any direction.
