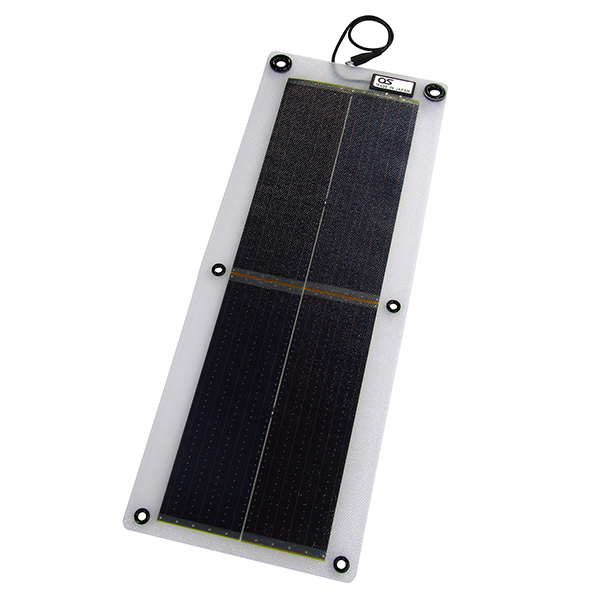

GA-0204Compact solar sheet

This compact sheet is perfect for carrying around and is a 2.8W solar sheet that can be charged from sunlight.

Characteristics

Compact and rollable

Micro USB terminal

This 2.8W solar sheet provides peace of mind by allowing you to charge your devices from sunlight, perfect for outdoor activities or emergencies.

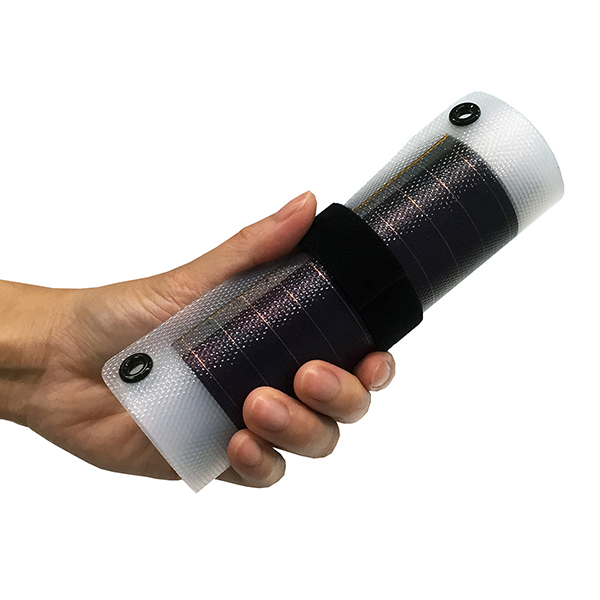

Weighing only 90g, this lightweight, flexible, and rollable amorphous solar sheet is easy to store and convenient to carry.
Using domestically produced cells, this solar sheet guarantees stable power generation.
It has six eyelets, allowing you to attach it to a backpack or other items with a carabiner. (Carabiner not included)

Product name	Compact solar sheet
Model	GA-0204A01
Main material	Amorphous silicon, ETFE
Maximum output (Pmax) (W) *1	2.8
Maximum power operating voltage (Vpm) (V) *1	4.4
Maximum output operating current (Ipm) (A) *1	0.64
Open-circuit voltage (Voc) (V) *1	6.4
Dimension (mm)	L454×W160×t1 (Protrusions excluded)
Weight (kg)	Approx. 0.09
Storage temperature *2	－20℃～＋60℃
Operating humidity *2	85%RH or less (Unless condensation)
Waterproof property *3	IP65 (solar sheet only, excluding junction box and connector section) *4
Approximate usable battery life	1) Must be rechargeable with DC 5V 2) The input terminal from the charger (solar sheet) must be connectable via a micro USB terminal 3) Must have a safety circuit to prevent overcharging Batteries from different manufacturers have various characteristics, so even if the above conditions are met, we cannot guarantee that all batteries will be able to be charged. A 2.8W solar sheet can provide approximately 0.64A on a sunny day. You can roughly estimate the full charging time by working backward from the battery's capacity, but this is only an estimate due to the individual characteristics and loss rate of each battery.

Power generation efficiency varies depending on sunlight conditions, therefore the above values are not guaranteed.
The unit may deteriorate significantly and malfunction if used in environments exceeding the specified usage and storage conditions.
Do not use the battery or solar sheet when wet. Also, be sure to wipe off any moisture with a cloth or allow it to dry completely before use.
The IP rating indicates the level of protection against the ingress of foreign solid objects and water. IP65 prevents dust from entering the interior and is unaffected by direct water jets from any direction.
